Product Description

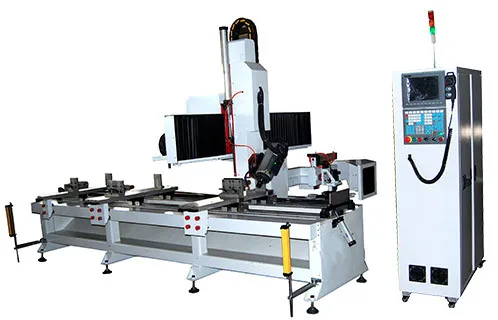

High Quality 4 Axis ATC1230SA Aluminium Profile Cutting Machine

Overview

Aluminium Profile Cutting Machine standard features include an Italian high frequency spindle, the spindle(B axis) can rotate +/- 90 degree, for side slot milling, drilling, cutting, keyhole, very suitable for processing of on different surface carving.

Top Quality Components

1.) Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2.) Top-quality components, HSD spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
3.) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.

Applications

Processing launder, taping, milling, mounting hole, locking hole and other slots for diversified curtain walls and aluminum doors and windows.

Specifications for 4AXIS ATC1230SA Aluminium Profile Cutting Machine
01
X,Y,Z Working Area
1200x3000x300mm*±90degree
02
Machining Area
600×3000mm
03
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
04
X,Y,Z Repositioning Accuracy
±0.01mm
05
Table Surface
Moving beam
06
Frame
Welded Structure
07
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
08
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
09
Max. Power Consumption
(Without Spindle) 5.5Kw
10
Max. Rapid Travel Rate
20000mm/min
11
Max. Working Speed
10000mm/min
12
Spindle Power
9.0/12.0KW
13
Spindle Speed
0-24000RPM
14
Drive Motors
Yaskawa Servo
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
16
Command Language
G Code
17
Operating System
Syntec Control System
18
Computer Interface
Enthernet
19
Flash Memory
512M(with CF card)
20
Collet
ISO30, ER32
21
X,Y Resolution
<0.01mm
22
Software Compatibility
UG, Visual Mill Power Mill, MasterCam, Vetric Pro, Alpha cam
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
4800x2300x1900mm
26
N.W.
2750KG
27
G.W.
3100KG
28
Optional Parts
Air cooling spindle or Water cooling spindle
Dust Collector
Fanuc control system
Mist-cooling System
Delta/Panasonic Servo Motors

Materials Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
Video

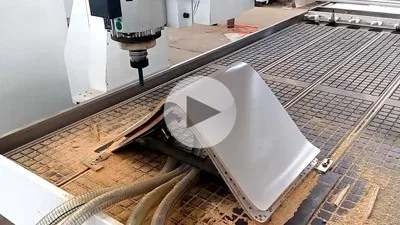

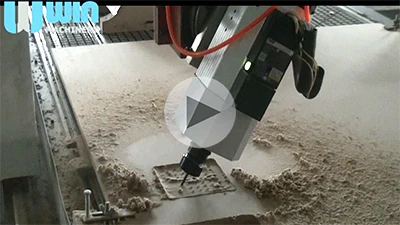

4Axis CNC Router

4axis ATC machine engraving on curved suface

4Axis CNC Router Drilling on MDF

Driling on MDF
Certifications
Detailed Images

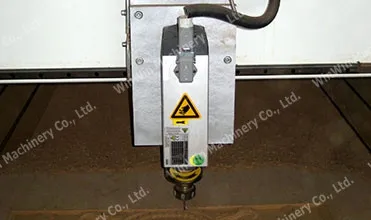

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

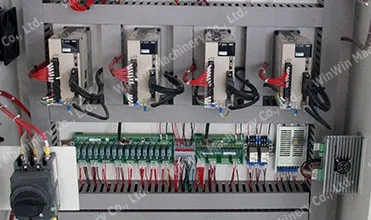

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

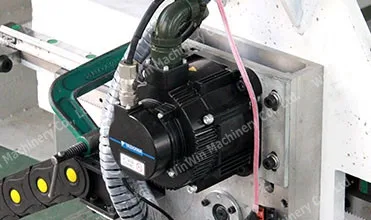

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

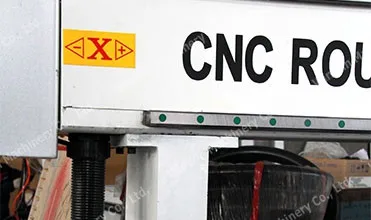

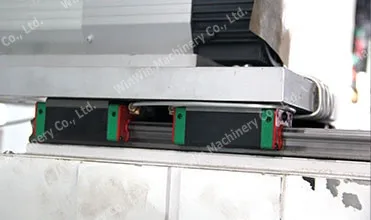

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK adopted.

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Basic Accessories
Packing & Delivery
Packaging
Size
 480 (L) * 230 (W) * 190 (D)
Weight
3.10 T



Packaging Details
The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.
