2550 High Quality Woodworking Combination Machine
1. Overview
1)With hard steel structure, is a machine ordered specially, which with 2500mm*5000mm working size, it is fit for hard wood working, Big size and mass producing, like cutting and engraving on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.
2)25mm square rails of HIWIN, or ABBA, or PMI, 2510 TBI ball-screw for Z axis, strong and thick belt for transmission. High precision
2. Advantages
1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
3. Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 2500*5000*250mm |
| 2 | Table Size | 2560*5600mm |
| 3 | X,Y,Z Travel Positioning Accuracy | ±0.02/300mm |
| 4 | X,Y,Z Repositioning Positioning Accuracy | ±0.02/300mm |
| 5 | Table Surface | Vacuum and T-slot Combined |
| 6 | Frame | Steel Tube Structure |
| 7 | Drive System X-Y Axis | Rack and Pinion |
| 8 | Drive System Z Axis | Ball Screw |
| 9 | Max Power Consumption | 4KW(Without Spindle) |
| 10 | Max Velocity | 40000mm/min |
| 11 | Max Working speed | 25000mm/min |
| 12 | Spindle Speed | 0-18000RPM |
| 13 | Work Mode | Stepper |
| 14 | Working Voltage | AC380V |
| 15 | Command Language | G Code |
| 16 | Interface | USB |
| 17 | Operating System | DSP Control System |
| 18 | Flash Memory | 128M |
| 19 | X-Y Resolution | 0.02/300mm |
| 20 | Software | Type3, UcancamV9 |
| 21 | Running Environment Temperature | 0 -45 Centigrade |
| 22 | Packing Size | 6100*3000*1900mm |
| 23 | Net Weight | 3550KG |
| 24 | Gross Weight | 4290KG |
| 25 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust collector/ Dust Hoods for three Axis | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| 850W Yaskawa/800W Panasonic Servo Motors |

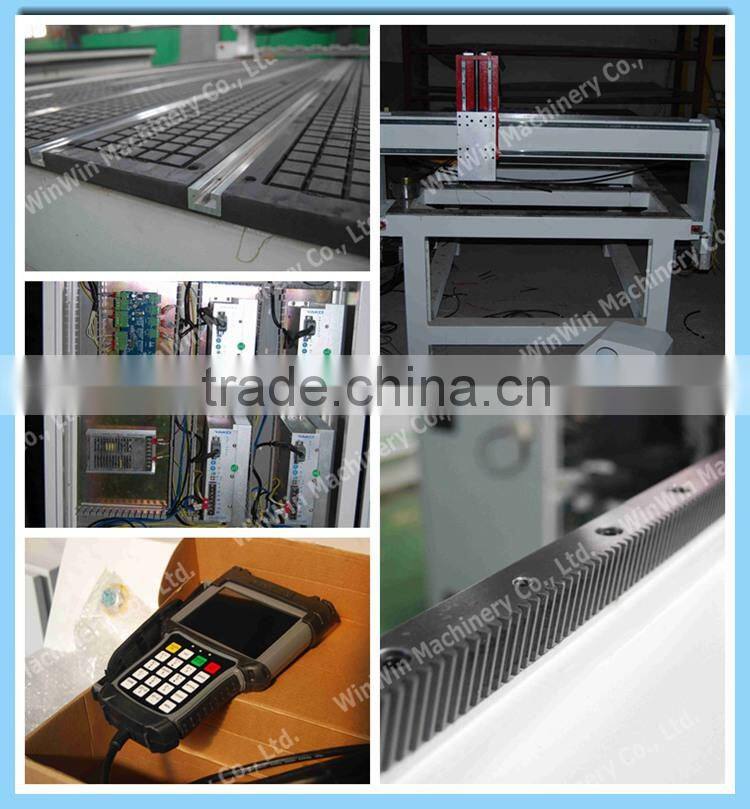

6. Details
7.Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
10. Factory
