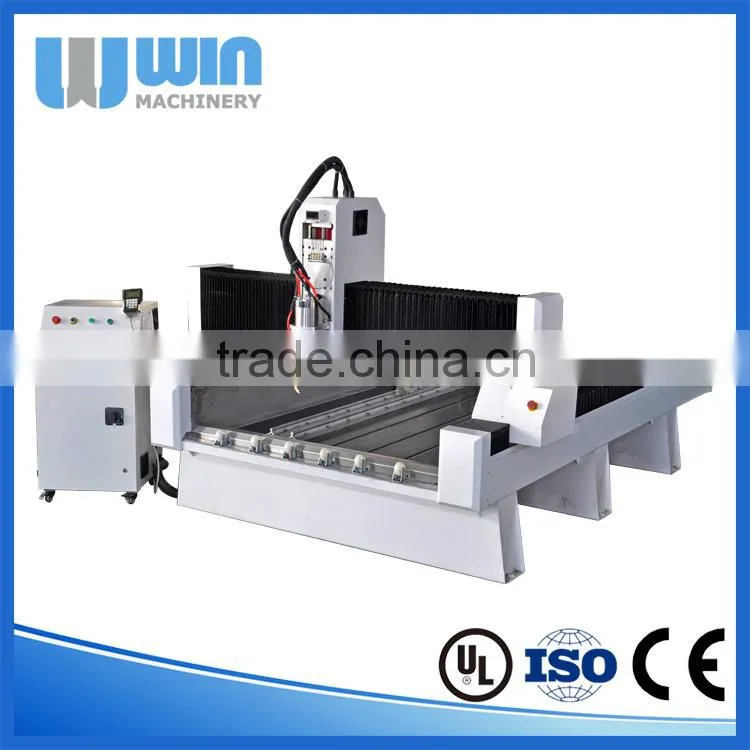

On Sales WW1530M Cnc 3D Stone Engraving Machine
1. Overview
Cnc 3D Stone Engraving Machine is suitable for Curb & Paving Stone Forming industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.
2. Advantages
1.)Machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better
2.)Dual motor drive for Y-axis, moving stably.
3.)Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9
4.)Constant spindle motor power, strong cutting strength, high efficiency.
5.)High precision rack transmission, fast speed.
6.)Imported linear square guide way, double row four row slider, high precision, long life time.
7.)Well selected electrical accessory, let the failure rate to the minimum
8.)With water and automatic water supply and cooling system
9.)Dustproof and waterproof design, better to protect the machine driving part.
3. Applications
Except for stone work. It is mainly designed for woodworking, any kinds of glass. aluminium, brass, metal material processing work.
1.) Granite, Marble, Bluestone, Sandstone and other stone engraving
2.) Hard stone like Granite can be layered engraved to reach 3mm
3.) Marble, Bluestone and so on can be engraved to 5mm each time
4. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1360×2940mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Engraving Speed | 3000mm/min |
| 10 | Spindle power | 4.5 Or 6KW |
| 14 | Drive Motors | Stepper System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP System (options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3200X1960X1870mm |
5. Details
6.Certificate
7. Packing&Delivery
8. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
9. Factory
10. Contact US
