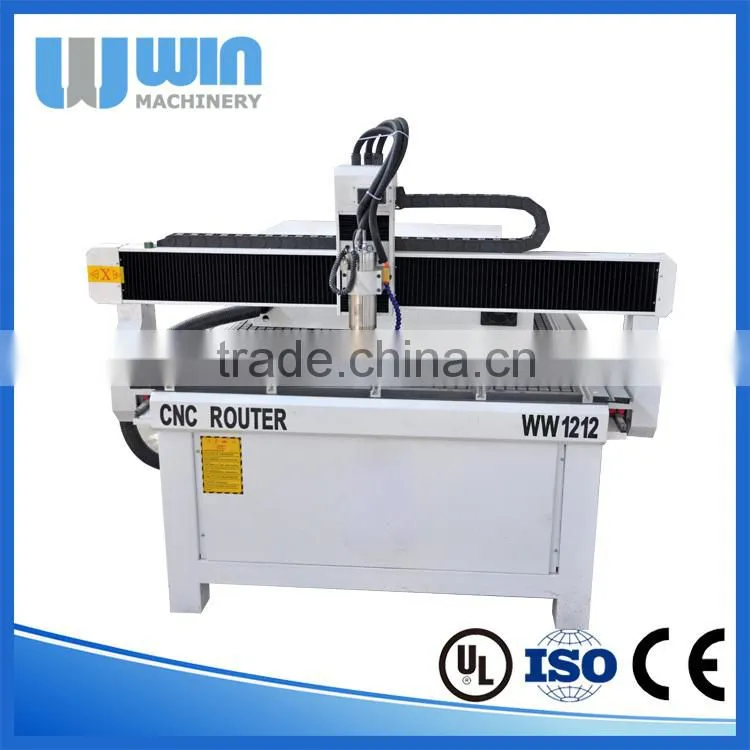

OEM Factory China (1200*1200mm) WW1212W Chinese Engraving Machine
US$ 8,840 - 29,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-speed WW6090 Router CNCUS$ 8,840 - 29,800MOQ: 1 Set -
New Machinery in China WW6090 3D Engraving Statue Carving MachineUS$ 8,840 - 29,800MOQ: 1 Set
-
CNC Manufacturing WW6090 Glass Engraving MachineUS$ 8,840 - 29,800MOQ: 1 Set
-
New Machinery in China WW6090 Glass Engraving Machine for SaleUS$ 8,840 - 29,800MOQ: 1 Set
-
CNC Manufacturing WW6090 Plastic Card Engraving MachineUS$ 8,840 - 29,800MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
WinWin
Model Number
WW6090
Voltage
AC220V, 50/60Hz
Power(W)
2.2KW
Dimension(L*W*H)
1400*1100*1500mm
Weight
400KG
Certification
CE, UL, ISO
Warranty
1Year
After-sales Service Provided
Engineers available to service machinery overseas
OEM Factory China (1200*1200mm) WW1212W Chinese Engraving Machine
Video
|
|
|
| Carousel Auto Change Tool | Engraving Aluminum | |
|
|
|
| CNC Router with Rotary | Cutting Foam Board | 4 Axis for Side Drilling |
Product Overviews
1. Overview
This Chinese Engraving Machine is suitable for advertising working. It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. Working with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working for longer time.
We use accurate LM linear (HIWIN) for Y axis, with options such as water cooling system or mist cooling system etc.
2. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
Product Description
3. Performance Parameter
| No | Description | Parameter |
| 1 | X,Y,Z Working area: | 1200x1200x120 mm |
| 2 | Table Size: | 1260x1460 mm |
| 3 | Table Surface: | T-slot &Vacuum combined table |
| 4 | Frame: | Welded Steel Tube Structure |
| 5 | X,Y, Z Structure: | Ball Screw, Hiwin Rail Linear Bearings |
| 6 | Max. Power Consumption (Without spindle): | 2.2 KW |
| 7 | Max. Rapid Travel Rate: | 10000mm/min |
| 8 | Max. Working Speed: | 6000mm/min |
| 9 | Spindle Power: | 1.5kw water cooling spindle |
| 10 | Spindle Speed: | 0-24000RPM |
| 11 | Drive Motors: | Stepper system |
| 12 | Working Voltage: | AC220V/50/60Hz |
| 13 | Command Language: | G Code |
| 14 | Operating System: | DSP System(options: Ncstudio/Mach3 PC Software) |
| 15 | Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) |
| 16 | Running Environment Temperature: | 0degree - 45 degree |
| 17 | Relative Humidity: | 30% - 75% |
| 18 | Computer interface: | USB |
| 19 | Flash Memory: | 128M(U Disk) |
| 20 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 21 | X,Y,Z Repositioning Accuracy: | ±0.01 |
| 22 | X,Y Resolution | <0.01mm |
| 23 | Collet: | ER16 |
| 24 | Packing Size: | 1900X1900X1700mm |
| 25 | N.W.: | 400kg |
| 26 | G.W.: | 600KG |
| 27 | Guarantee | One year from the date of commission |
| 28 | Optional Parts | HSD/ Colombo Spindle |
| Vacuum Table and Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| Servo Motors |
4. Details
5.Samples
Packaging & Shipping

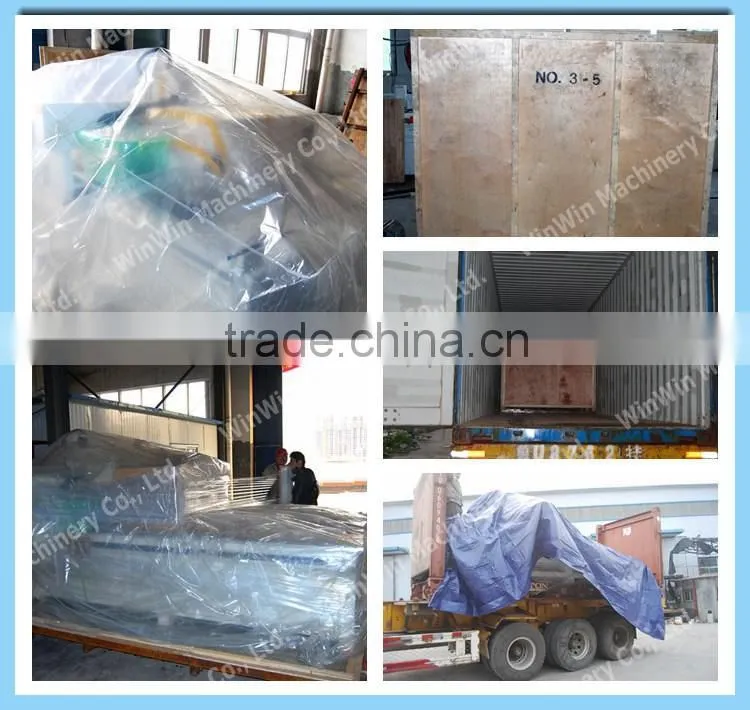

6. Packing&Delivery
Our Services
7. Guarantee & After Sales Service
- The machine is guaranteed for 12 months.
- Technical support by phone, e-mail or MSN around the clock.
- Friendly English version manual and operation video CD disk.
