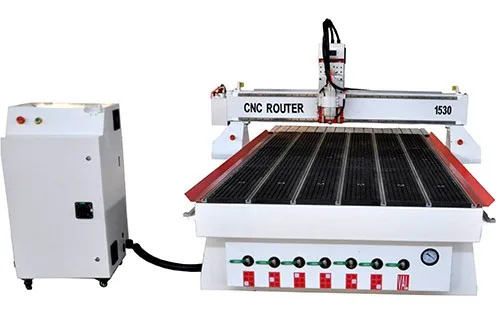

Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router

Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router thumbnail-1
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router thumbnail-2
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router thumbnail-3
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router thumbnail-4
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router thumbnail-5
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router thumbnail-6
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router photo-1
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router photo-2
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router photo-3
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router photo-4
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router photo-5
Hot Sales! Good Quality 3 Axis WW1530 3D CNC Wood Router photo-6
US$ 6,900 - 11,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
WinWin Machinery Co., Ltd.(Jinan)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name WinWin
Model Number WW1530
Voltage AC220v/380V, 50/60Hz
Power(W) 3.2KW
Dimension(L*W*H) 3700X2100X2050mm(Packing Size)
Weight 1980KG
Certification CE, UL, ISO
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Overview

Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board. The Routers features • Precision ball scree drives • Rack and pinion transmission • Multi-zone vacuum plenum • World renown HIWIN bearings • Windows® based easy-to-learn and use G-Code Interface (multiple languages).

Advantages

1) The CNC Wood Router's body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the Metal Engraving Machine's high precision.
3) Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the Metal Engraving Machine working for long time.
4) High-performance driven motor to ensure the Metal Engraving Machine's high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the Metal Engraving Machine's failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

SPECIFICATIONS FOR WW1530 CNC ROUTER
01
X,Y,Z Working Area
1500x3000x200mm
02
Table Size
1750×3540mm
03
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
04
X,Y,Z Repositioning Accuracy
±0.03mm
05
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
06
Frame
Welded Structure
07
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
08
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
09
Max. Power Consumption
(Without Spindle) 3.2Kw
10
Max. Rapid Travel Rate
33000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3.0/4.5/6/7KW
13
Spindle Speed
0-18000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3700X2100X2050mm
26
N.W.
950KG
27
G.W.
1080KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.
Certifications
Detailed Images

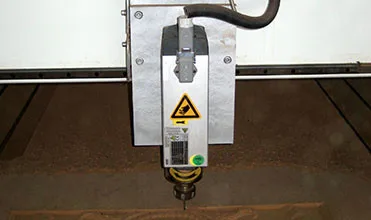

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

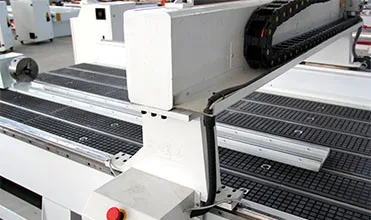

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

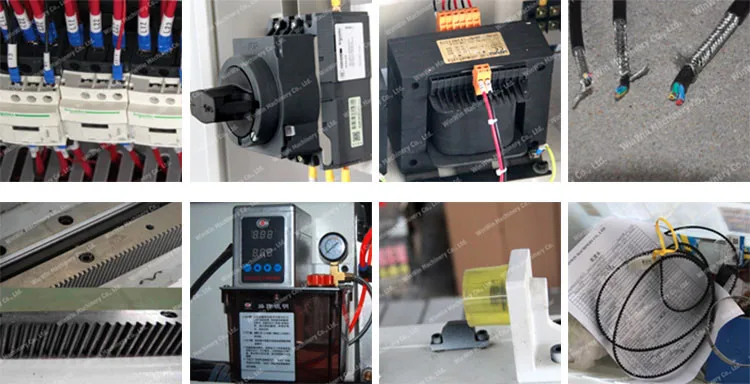

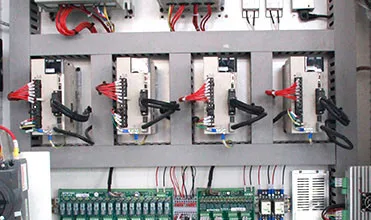

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

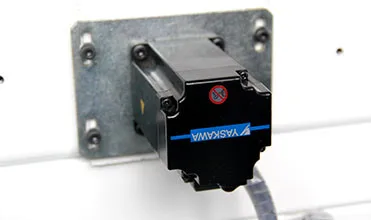

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

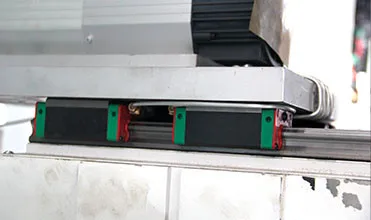

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK ado

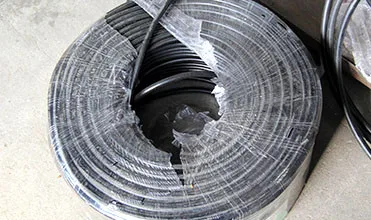

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Video
">

CNC Router for Engraving MDF

Three spindles, easy changing tools.

CNC Router for Engraving PCB

Mini CNC Router

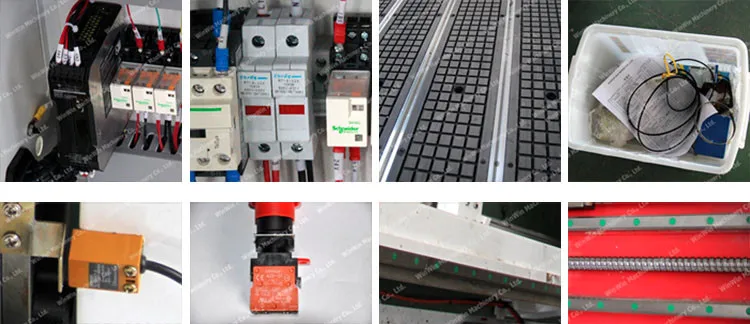

Basic Accessories
Packing & Delivery
Packaging
Size
370(L) * 210 (W) * 205 (D)
Weight
1.08 T



Packaging Details

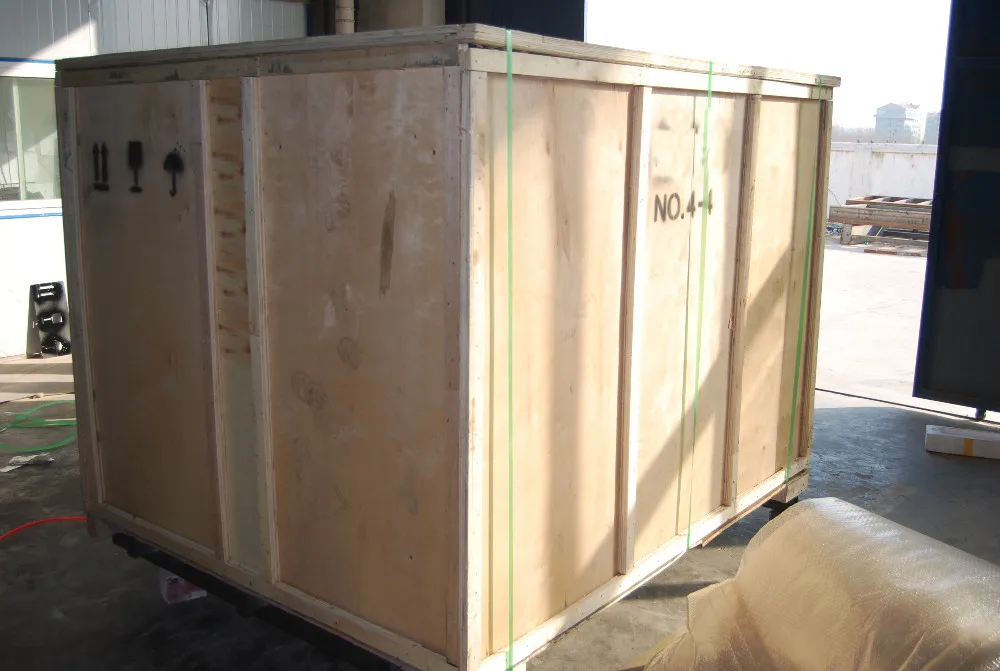

The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.
