CNC DSP Controller for CNC Router
|
|
|
| Carousel Auto Change Tool | Engraving Aluminum | |
|
|
|

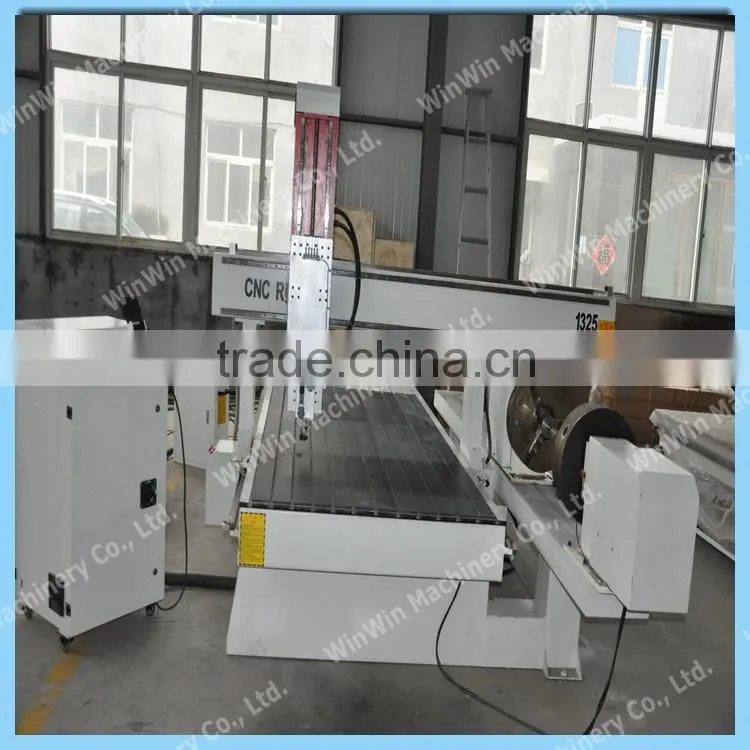

| CNC Router with Rotary | Cutting Foam Board | 4 Axis for Side Drilling |
1. Machine Introduction
1.) High performance core processing CPU: The eight nuclear processing CPU, faster calculation, stronger processing ability.

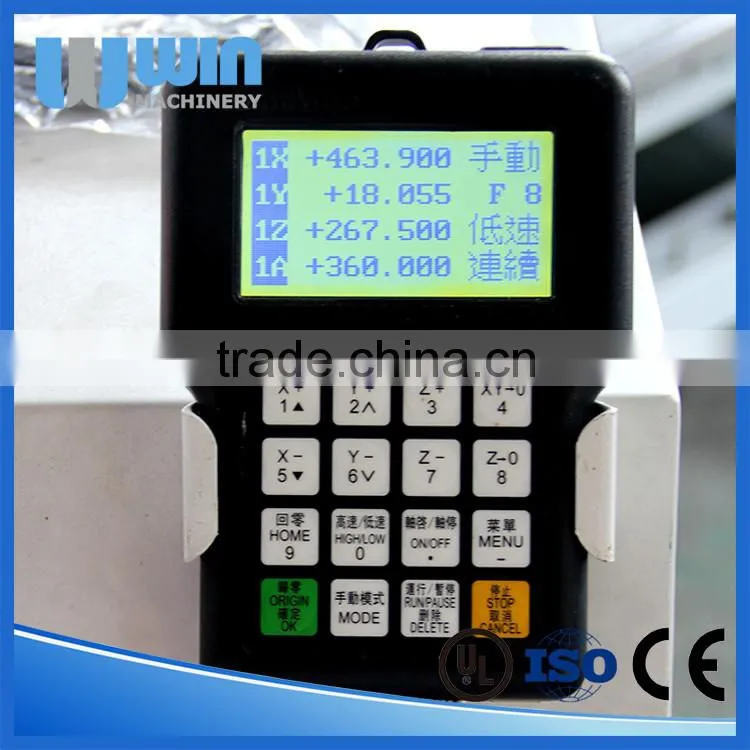

2.) Simple handle structure with buttons controls: 16 buttons operation mode, comfortable hand-held end, easy to learn easy to use, simple and quick.
3.) Multiple data transmission, large storage capacity support: Completely off-line operation and support a variety of mobile storage transmission methods; 512MB internal memory, can read large capacity storage mobile device.
4.) Intelligent reading processing documents function: AutoNow series products is more smart in proof reading of the processing documents, to new processing files, only reading before the first time operation. And in the process of reading, it can also skip checking according to customers’ demands which save the users’ valuable time in great degree.
5.) Intelligent memory function: support power lost and breakpoint processing; not only storage the process position, but also memory the file name, ensure user continue processing from breakpoint quickly & accurately.
6.) Two kinds of processing mode choice: high precision mode and to ensure the machining precision and quality of high speed mode, that ensure the process efficiency, saving processing time.
7.) Security checking & alarm: Add security warning system and abnormal reminder functions, such as back to zero abnormal shaft mark, distance mode mobile safety tips, processing beyond the function such as display, greatly guarantee the accuracy and consistency processing.
8.) More perfect encryption functions: Hardware encryption, set parameters encryption, running time of encryption and the internal important processing file encryption, and other functions, the modification, prevent delete prevent copying, and to ensure the customers’ technical information and assets safe.
9.) Anti-jamming performance ids greatly increased: Though some CE test, anti-jamming greatly improved.
10.) Department stronger: AutoNow based version 8 series of 8 out into the support I/O mouth custom editing functions, the user can completely according to their own needs editing and defined, and may expand to 32 input 32 output; Based on 8 nuclear processing CPU, but also for secondary development, for the customer equipments of the special function, special purpose to add, meet the needs of different industries, with period is short, the cost is low, the secrecy id good wait for a characteristic.
2. Advantages
1) New three-axis linkage motion mode to achieve comprehensive controlling.
2) Support drive and spindle error alarm function
3). Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
4) Support intelligent file checking function.
5) Parameter backup and restore function to prevent the loss of important parameters.
6) High anti-jamming intensity passes many CE tests.
7) Intelligent processing memory, supports power fail safeguard and breakpoint function.
8) Definable I/O interfaces provide customers a wide range of development platforms.
3. Applications
Control 3/4 axis machine to achieve 3D Carving, cutting.
4. Performance Parameter
| Number | Description | Parameter |
| 1 | CPU | DSP |
| 2 | Internal Memory |
512M |
| 3 | Display Screen | 128*64 Monochrome LCD |
| 4 | Communication Port | U disk,USB cable |
| 5 | Controlled Axis Number | 3 axes |
| 6 | Control Signal | differential signal |
| 7 | Drive System | step motor/servo motor |
| 8 | Min.Input Unit | 0.001mm |
| 9 | No Volt Protection | support |
| 10 | Breakpoint Processing Function | 8 |
| 11 | External Power Supply Voltage | 24V DC |
| 12 | Manual Mode |
Continuous, point move, distance |
| 13 | Interpolation Way | Line, arc |
| 14 | Soft/Hard Limit |
Support |
| 15 | Max. Pluse Frequency |
1M/S |
| 16 | Passwor Protection |
Support |
| 17 | Support Language |
Simple Chinense/Traditional Chinese/ English |
| 18 | Standard Configuration |
DSP Handle; 50Core cable; USB cable; I/O Wring board |

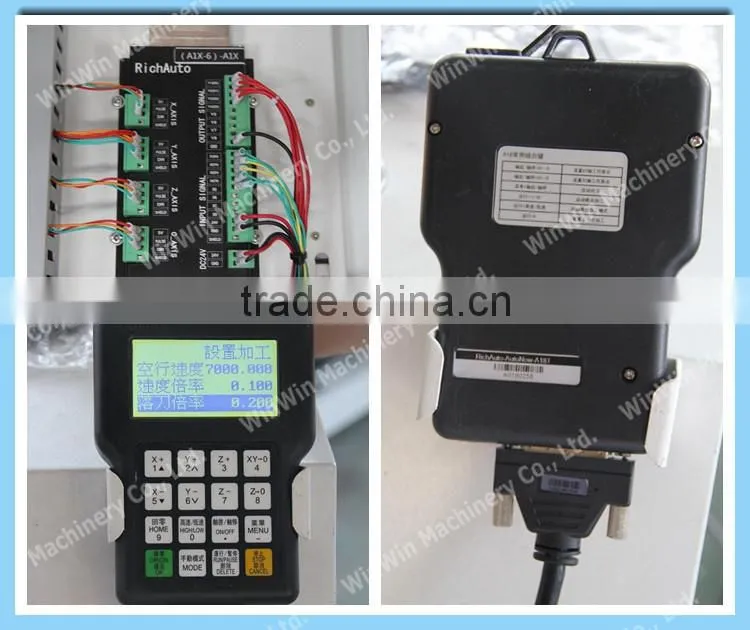

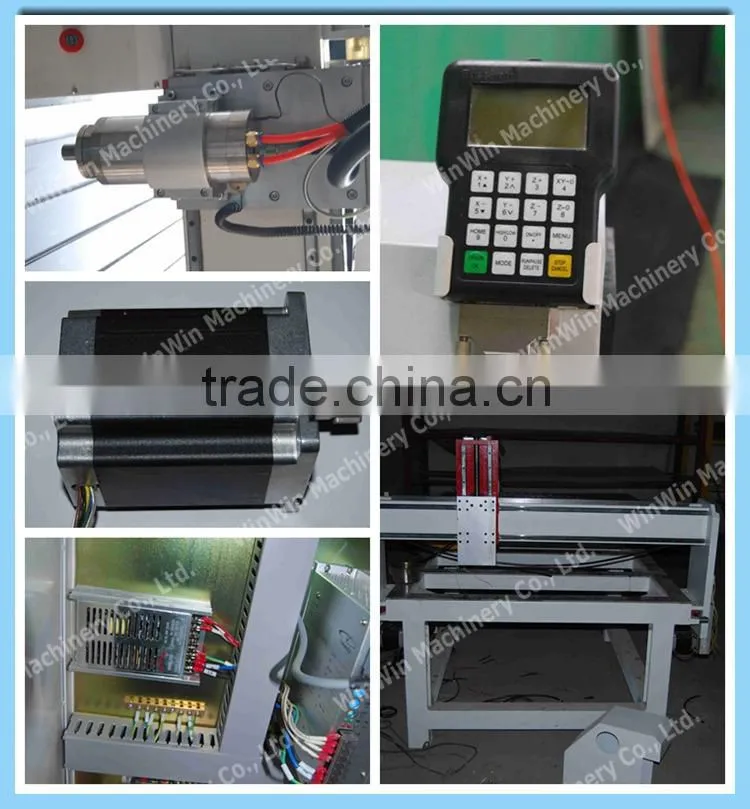

6. Details
7.Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The Wood CNC Router is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
10. Factory
11. Contact US
1.How about the delivery time?
Normal 3axis Wood CNC Router -within 2weeks.
ATC Wood CNC Router -within 4weeks.
4axis Wood CNC Router -within 50days.
5axis Wood CNC Router -within 6months.
2.What kind of payments do you support?
T/T.L/C ,other kinds please contact with us.
3.What’s the MOQ?
For whole machine, MOQ=1.
4.Can you produce according to customer’s design?
Sure ,we are professional manufacturer ,OEM are also welcome.
5.Can you tell me your main customers?
That’s our customer’s privacy ,we should protect their information.
At the same time, please rest assured that your information is also safe here.
6.Consult
We will recommend the most suitable machine to you after being informed by your requirements, such as the main jobs you wanna the machine to process, the materials you will wanna to process, the working area you want, the max cutting thickness, etc.
