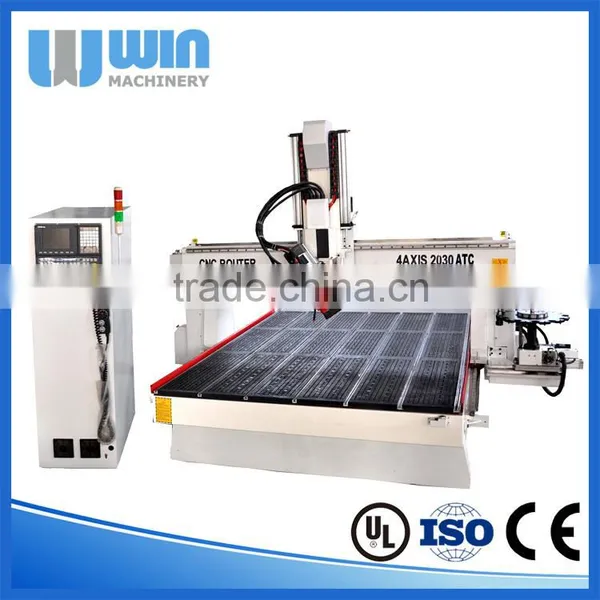

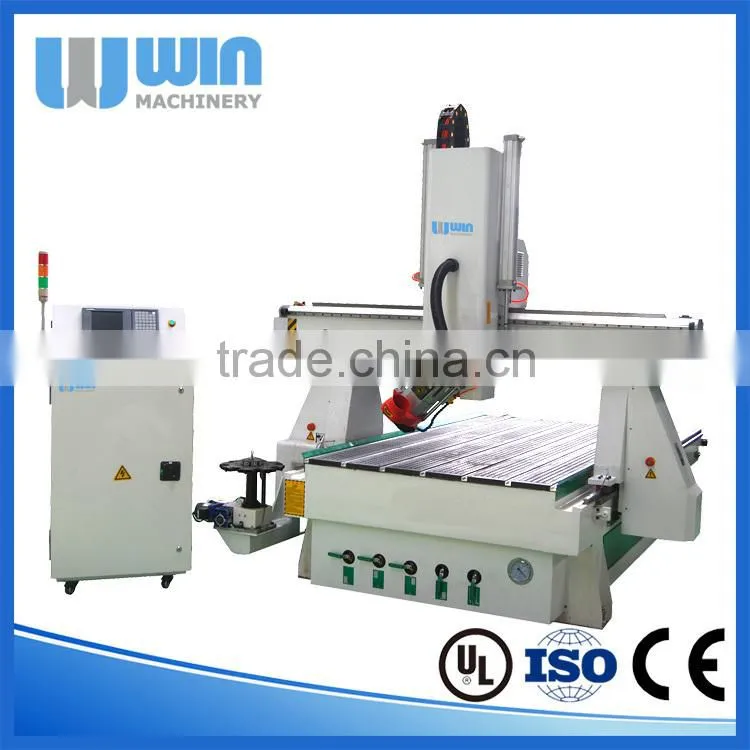

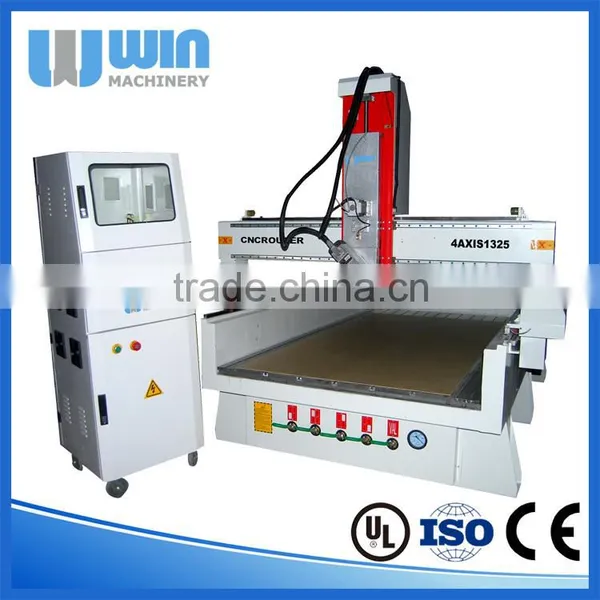

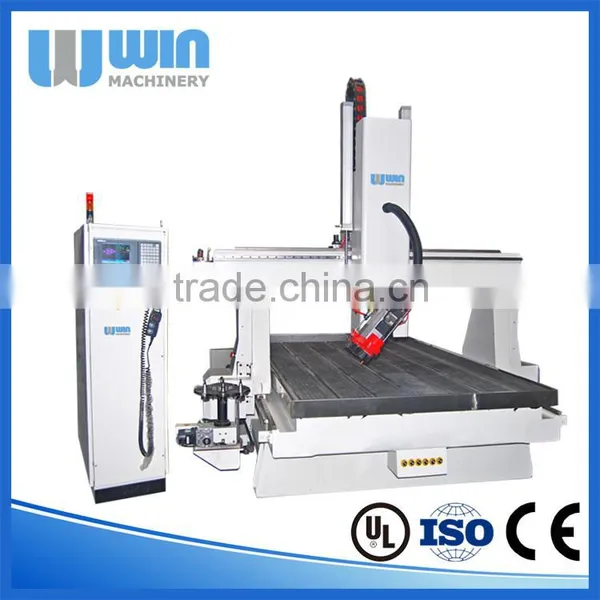

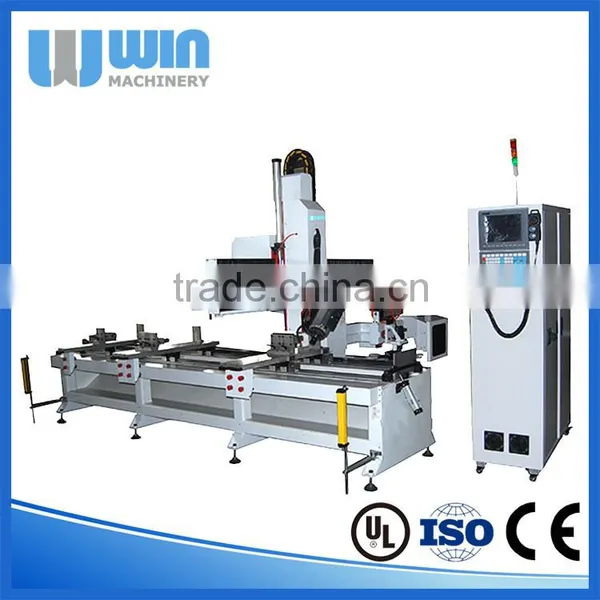

2015 Promotion Good Quality 2 Axis CNC Router
1. Overview
2 Axis CNC Router standard features include a 12 HP HSD high frequency automatic tool changer spindle with an 8 Position rotary carousel tool holder, the spindle(B axis) can rotate +/- 90 degree, for side slot milling, drilling, cutting, keyhole, very suitable for processing of on different surface carving.
2. Top Quality Components
1.) Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2.) Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
3.) Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
4.) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.

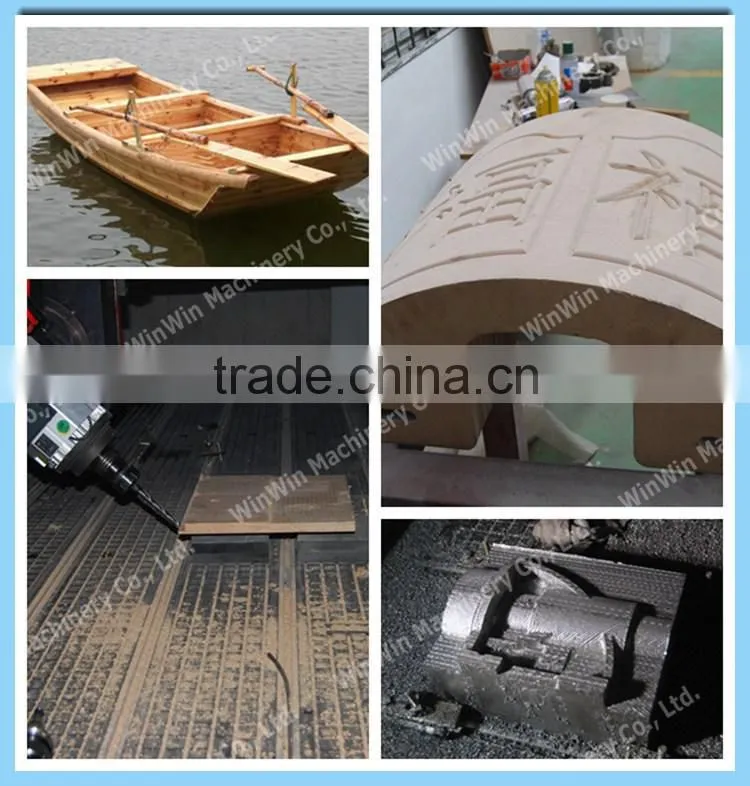

3. Applications
Woodworking industry: wooden doors, cabinets, plate, office wood furniture, speakers, musical instruments, etc.
Plate processing: insulation, plastic and chemical, PCB, ABS, PP, PE and other carbon mixture.
Decoration industry: Acrylic, PVC, MDF, plastic and copper and aluminum and other soft metal plate engraving and milling.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x400mm*180degree |
| 2 | Table Size | 1450×2940mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
| 6 | Frame | Welded structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 5.5kw |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 9.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Yaskawa servo |
| 15 | Working Voltage | AC 380V/50/60Hz,3PH |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | Enthernet, CF Card |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3950x2250x2200mm |
| 26 | N.W. | 2190KG |
| 27 | G.W. | 2380KG |
| 28 | Optional Parts | 3.8KW HSD Auto Spindle |
| Dust Collector/Dust hoods for Liner rails | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| Delta/Panasonic Servo Motors |

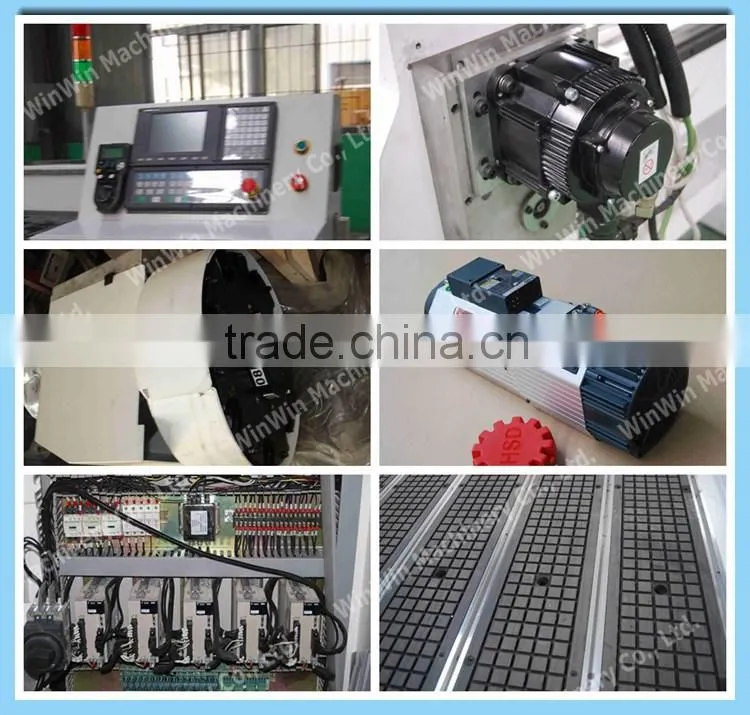

6. Configurations

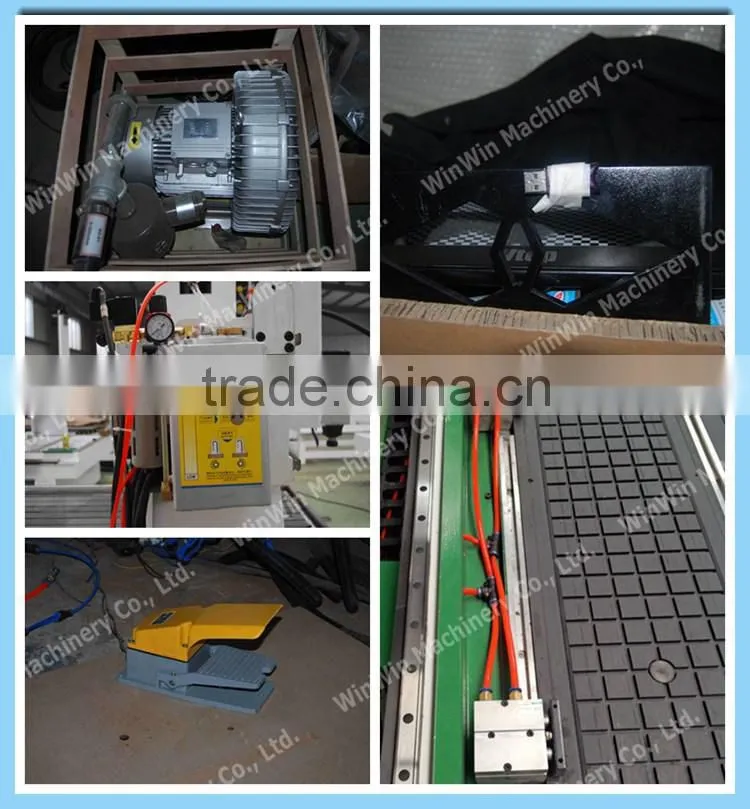

7. Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
