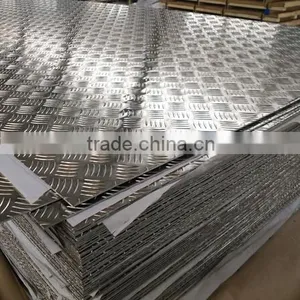

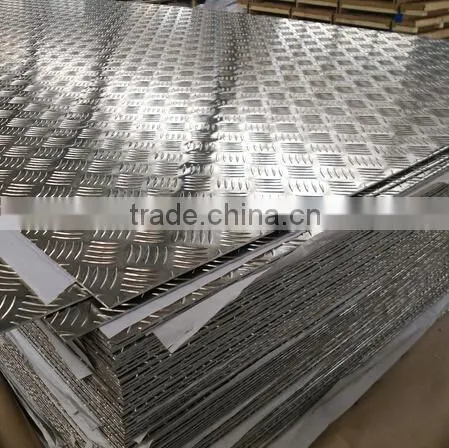

1.6mm aluminum tread plate 5052 1100
1, Introduction of 5052 aluminum alloy suitable for embossed
Aluminium Alloy 5052 is a popular aluminium for general sheet metal work where moderate strength is required. Also used in extrusions where high ductility and corrosion resitance is important. It generally gives a bright finish.
5052/5021 aluminium tread plate has good workability, very good corrosion resistance, high fatigue strength, weldability, and moderate strength. This leads to its use in aircraft fuel/oil lines, fuel tanks, other transportation areas, sheet metal work, appliances and lighting, wire, and rivets.
Alloy nickname: UNS A95052; ISO AlMg2.5; Aluminium 5052-O; AA5052-O
5251/5052 0 5-BAR tread plate Properties
| Electrical Properties | Metric | English | Comments |
| Electrical Resistivity | 0.00000499ohm-cm | 0.00000499ohm-cm | AA; Typical |
| @Temperature 20.0 °C | @Temperature 68.0 °F | ||
| Thermal Properties | Metric | English | Comments |
| CTE, linear | 22.1µm/m-°C | 12.3µin/in-°F | |
| @Temperature -50.0 - 20.0 °C | @Temperature -58.0 - 68.0 °F | ||
| 23.8µm/m-°C | 13.2µin/in-°F | AA; Typical; average over range | |
| @Temperature 20.0 - 100 °C | @Temperature 68.0 - 212 °F | ||
| 23.8µm/m-°C | 13.2µin/in-°F | ||
| @Temperature 20.0 - 100 °C | @Temperature 68.0 - 212 °F | ||
| 24.8µm/m-°C | 13.8µin/in-°F | ||
| @Temperature 20.0 - 200 °C | @Temperature 68.0 - 392 °F | ||
| 25.7µm/m-°C | 14.3µin/in-°F | ||
| @Temperature 20.0 - 300 °C | @Temperature 68.0 - 572 °F | ||
| 25.7µm/m-°C | 14.3µin/in-°F | average | |
| @Temperature 20.0 - 300 °C | @Temperature 68.0 - 572 °F | ||
| Specific Heat Capacity | 0.880J/g-°C | 0.210BTU/lb-°F | Estimated from trends in similar Al alloys. |
| Thermal Conductivity | 138W/m-K | 960BTU-in/hr-ft²-°F | AA; Typical at 77°F |
| Melting Point | 607.2- 649 °C | 1125- 1200 °F | AA; Typical range based on typical composition for wrought products 1/4 inch thickness or greater |
| Solidus | 607.2°C | 1125°F | AA; Typical |
| Liquidus | 649°C | 1200°F | AA; Typical |
| Processing Properties | Metric | English | Comments |
| Annealing Temperature | 343°C | 650°F | holding at temperature not required |
| Hot-Working Temperature | 260- 510 °C | 500- 950 °F | |
| Component Elements Properties | Metric | English | Comments |
| Aluminum, Al | 95.7 - 97.7 % | 95.7 - 97.7 % | As remainder |
| Chromium, Cr | 0.15 - 0.35 % | 0.15 - 0.35 % | |
| Copper, Cu | <= 0.10 % | <= 0.10 % | |
| Iron, Fe | <= 0.40 % | <= 0.40 % | |
| Magnesium, Mg | 2.20 - 2.80 % | 2.20 - 2.80 % | |
| Manganese, Mn | <= 0.10 % | <= 0.10 % | |
| Other, each | <= 0.050 % | <= 0.050 % | |
| Other, total | <= 0.15 % | <= 0.15 % | |
| Silicon, Si | <= 0.25 % | <= 0.25 % | |
| Zinc, Zn | <= 0.10 % | <= 0.10 % | |
Available patterns:
2, Available alloy and specification:
1.Alloy no.:1050, 1060, 1070, 1000, 3003, 3004, 3005, 5052, 5005, 5083, 5086, 6061, 7075, etc.
2.Temper: all tempers
3.Passed the ISO9001 and SGS certificate
4.Have a wide product range of choices
5.Thickness: 0.2mm-500mm
6.Width: 40mm-1500mm
7.High quality with competitive price
8.We can produce the products according to the customer's requirements.
3, Business terms:
Terms of payment: 30% of the total contract down payment by T/T, 70% balance payment against B/L copy by T/T or by 100% irrevocable L/C at sight.
Leading time: Around 15 working days after order and deposit confirmed.
Packaging: waterproof plastic cover the package, and then make the wooden pallet.
4, Corporation Introduction: We are Zhengzhou zhongxin aluminum & Cable Co.,Ltd, which has 20 years experiences for manufacturing All
Aluminum Coils and Sheets in China. And due to our professional processing method and efficient logo,we can
provide our high quality aluminum plate, sheet, coil, foil with competitive price which worth the high quanlity.
Production Equipment: Main machinery include:10 continous casting lines, 7 cold rolling mills, 10 foil mills,
tension-levelling lines, shearing lines, slitting lines, and a 1+4 tandem hot mill with an annual capacity of 300
thousand metric tons.
If you want to see more products of our company, you can surf our web site:
Our strict quality control system and high efficient ensure you can get good quality and quantity products at
the best competitive price.
1. Minimum Order Quantity?
MOQ is 2 tons, your quantity is ok, sample is available.
2. What kind of terms of payment?
T/T,Western Union are available.
3. What grams of the product can you offer?
Our products can be customized according to your requirment
4.Can you do Customization & Reproduction if I provide a photo?
Yes, we do Customization & Reproduction service.
You need to send the pictures to our email, tell us the specification you want,
then we will quote you exact price.
5. Does the packaging safe and arrive in good conditions?
Yes,Safe Packing guarrantee,the products will arrive your door under good conditions.
6. How long does it usually take to deliver the product?
We'll make the shipment to you immediately. It will take about 25 to 40 days .
Accurate delivery time depends on the specific quantity
Whenever you need more info, please don't hesitate to contact mewith telling the thickness*width*length, alloy no.&temper, color, quantity,other details including package. I'll reply your email within 2 days.
