Zhengzhou Zhongxin Aluminum Co,, Ltd. located in Zhengzhou, Henan, central China area. With abundent aluminum resource and low labour force, we're able to offer you the best products at factory prices.
Main products: 1xxx, 3xxx, 5xxx, 6xxx, 8xxx series aluminum alloy
If you need any regular products of the alloy series above, please don't hesitate to try us.
Here we proudly provide the following item for you:

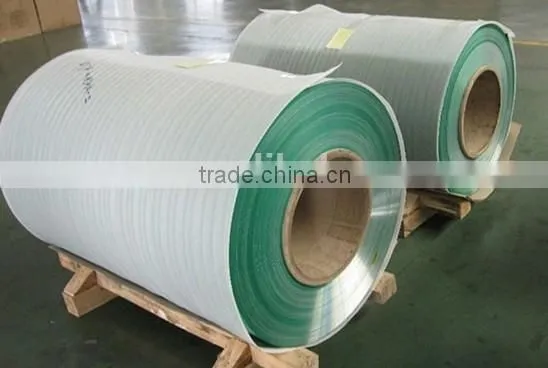

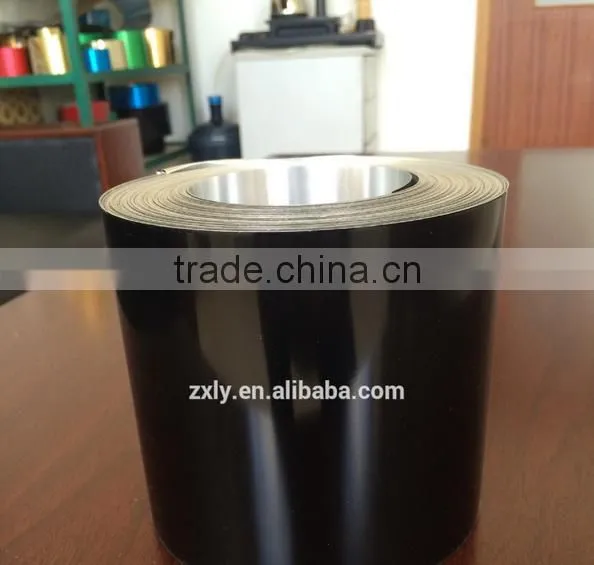

Cost price PPG color coated aluminum coil factory
1) The type of paint: PE, PVDF
2) Thickness coating: PVDF: More then 25 micron; PE, more then 18 micron.
3) Paint supplier: PPG (PVDF)
4) Interior diameter: Mainly in 405mm, 505, mm
5) Width: Less then 1600mm, sheets are also available
6) Color: Panton, RAL or refer to customers' counter sample.
7) Coating hardness: (pencil hardness) more than 2H
8) Impact resistance: No cracking and peeling (50kg/cm, ASTMD-2794: 1993)
9) Flexibility (T-bend): No more than 2T
10) MEK resistance: More than 100
The base of Painted Aluminium Coil details:
1) Temper: H14, H18, H24 mainly.
2) Alloy 1100, 1050, 3003, 3004, 3005, 5052, 8011 etc
3) Origin: China
4) MOQ: 5 tons each size
5) Lead Time: Within 20 days
6) The term of payment: T/T, irrevocable L/C at sight
7) Application: Curtain wall, roof, internal and external wall, ACP, Door
8) Remarks: Specific requirement of alloy, temper or specification can be discussed at your request.
|
TECHNICAL PARAMETERS OF COLOR COATED ALUMINUM COIL
| |||||
| ACRYLIC ACID | POLYESTER | PVDF | |||
| Item | Technical requirements | Item | Technical requirements | Item | Technical requirements |
| Thickness of coating film | ≥ 12 µm | Thickness of coating film | ≥ 18 µm | Thickness of coating film | ≥ 25µm |
| Gloss deviation | gloss<65, tolerance≤10% gloss≥65, tolerance≤5% |
Gloss deviation | gloss<70, tolerance≤10% gloss≥70, tolerance≤5% |
Gloss deviation | gloss<70, tolerance≤10% gloss≥70, tolerance≤5% |
| Hardness of pencil | ≥2H | Hardness of pencil | ≥3H | Hardness of pencil | ≥3H |
| Adhesion | no lower than class 1 | Adhesion | no lower than class 1 | Adhesion | no lower than class 1 |
| Flexibility | ≤3T | Flexibility | ≤2T | Flexibility | ≤2T |
| Boiling water resistance | no change (2h) | Boiling water resistance | no change (2h) | Boiling water resistance | no change (2h) |
| Color difference | ΔE≤2.0 | Color difference | ΔE≤2.0 | Color difference | ΔE≤2.0 |
| MEK | ≥70 times | MEK | ≥100 times | MEK | ≥150 times |

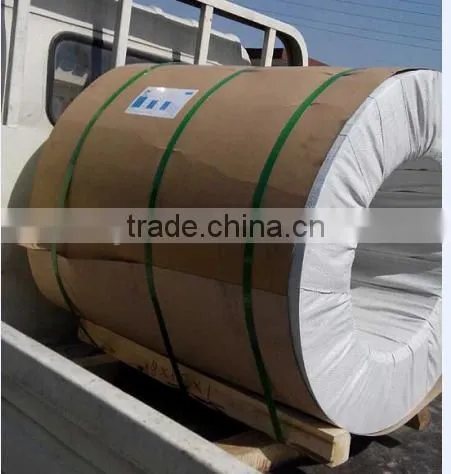

Packaging
aluminum ingot
↓
aluminum billets
↓
roller coating
↓
final color coil
↓
Whenever you need more info, please don't hesitate to contact mewith telling the thickness*width*length, alloy no.&temper, color, quantity,other details including package. I'll reply your email within 2 days.
