Floor deck roll forming machine
Machine Description |
Quantity |
Delivery time |
Container Type |
Price(FOB TIANJIN) |
galvanized sheet processing machine |
1 SET |
45 working days after receiving deposit |
One 40GP |
USD29500--39500 |
Floor deck are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and
different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'
requests.
Components of galvanized sheet processing machine
No. |
Name |
Unit |
Qty |
1 |
Manual decoiler |
set |
1 |
2 |
Main forming machine |
set |
1 |
3 |
PLC control system |
set |
1 |
4 |
Hydraulic pump station |
set |
1 |
5 |
Post cut |
set |
1 |
6 |
Electric motor |
set |
1 |
7 |
Output table |
set |
1 |
galvanized sheet processing machineProduction Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving
Details of galvanized sheet processing machine:
Parameters metal rolling mills:
Product name |
galvanized sheet processing machine |
|||
NO. |
Items |
Parameters |
Remark |
|
1 |
Suitable
Material |
Type |
GI/PPGI/AL |
|
|
|
Width |
1000/1200/1220/1250mm |
Custom |
|
|
Thickness |
0.30-0.80mm |
|
2 |
Product Specifications |
Length |
Any length |
|
|
|
Length Tolerance |
±2mm/6m |
|
3 |
Working Speed |
25 m/min (10 piece per min as 8 feet per piece) |
Standard machine |
|
4 |
Control System |
Mitsubishi/Siemens PLC& transducer |
Custom |
|
5 |
Total Power |
About 15KW |
|
|
6 |
Total Weight |
About 14T |
Up to final design |
|

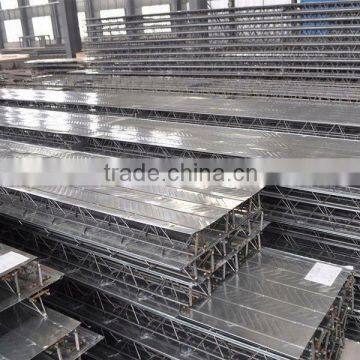

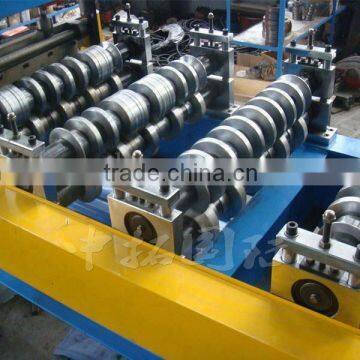

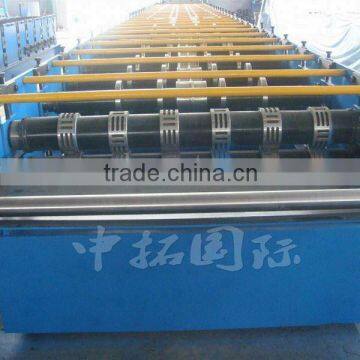

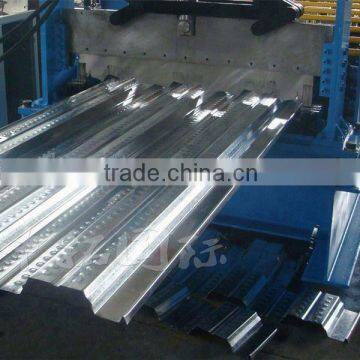

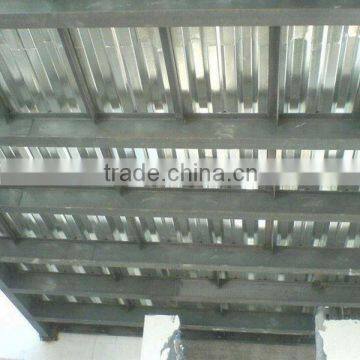

More photos of galvanized sheet processing machine:
Raw materials of roofing steel machine
Packaging Detail of roofing steel machine:
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
1. Installation and training of roofing steel machine:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other
necessary things.
2. After Service roofing steel machine
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of roofing steel machine, we will repair it for free in one
year.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich
has its own factory and also cooperate with several production factories and associated nterprises, conc
erning with the design, development and production of cold roll forming machines,material of building. It
is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All
products comply with international quality standards and are greatlyappreciated in variety of different mar
kets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We
need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can
pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can
pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts
replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we
can through negotiationfor to solve the problems,and we supply the technical support for the whole life
of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on
developing How to make machines much more automatic, accurate and high quality. We can make
sure thatour machine could use more than 20 years without any problem. We can provide 2 years free
qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need
machines in a hurry, we can make it for you less than a month.
