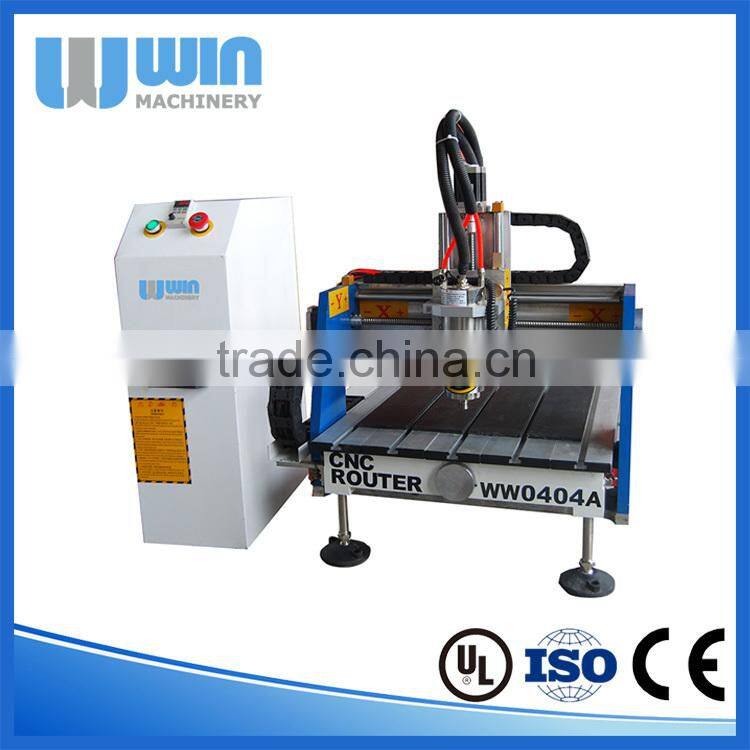

Good Quality WW0404A Mini Desktop CNC Router
1. Overview
The desktop CNC is an affordable CNC work platform. Ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool. The desktop Routers features ball screw drives on all three axes and is controlled using a DSP easy-to-use hand-held micro stepper controller. The controller can run G-Code or dxf file formats.
2. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
3. Performance Parameter
| No | Description | Parameter |
| 1 | X,Y,Z Working area: | 400x400x90 mm |
| 2 | Table Size: | 450x640 mm |
| 3 | Table Surface: | T-slot table |
| 4 | Frame: | Cast Iron |
| 5 | X, Z Structure: | Round rails and TBI ball Screw, |
| 6 | Y Structure: | Ball Screw, Hiwin Rail Linear Bearings |
| 7 | Max. Power Consumption (Without spindle): | 0.8 KW |
| 8 | Max. Rapid Travel Rate: | 8000mm/min |
| 9 | Max. Working Speed: | 5000mm/min |
| 10 | Spindle Power: | 1.5kw water cooling spindle |
| 11 | Spindle Speed: | 0-24000RPM |
| 12 | Drive Motors: | Stepper system |
| 13 | Working Voltage: | AC220V/50/60Hz,1 Phs |
| 14 | Command Language: | G Code |
| 15 | Operating System: | DSP System(options: Ncstudio/Mach3 PC Software) |
| 16 | Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) |
| 17 | Running Environment Temperature: | 0degree - 45 degree |
| 18 | Relative Humidity: | 30% - 75% |
| 19 | Computer interface: | USB |
| 20 | Flash Memory: | 128M(U Disk) |
| 21 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 22 | X,Y,Z Repositioning Accuracy: | ±0.01 |
| 23 | X,Y Resolution | <0.01mm |
| 24 | Collet: | ER16 |
| 25 | Packing Size: | 900X900X900mm |
| 26 | N.W.: | 100kg |
| 27 | G.W.: | 150KG |
| 28 | Guarantee | One year from the date of commission |
4. Details
5.Samples
6. Packing&Delivery
7. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
8. Factory
9. Contact US
