colorful aluminum coil for Honeycomb aluminum panel
prepainted aluminum coil
| Products Name | prepainted aluminum coil |
| alloy | 1050 1100 3003 5052 5005 5182 5754 |
| thickness | 0.15~3.0mm |
| width | 10~2500MM |
| Surface | color coated/mill finished /embossed/ corrugated |
| Products standards | GB/T3880 ,ASTM,YS |
| MOQ | 1000KGS |
| Produce leading time | 20~30working days |
| Payments term | L/C ,T/T ,D/A,D/P |
| Sample | availbale (deliery fee by clients) |
| Roller inner diameter | 200,405,505,508mm |
| Roller out diameter | 500~1500mm |
| coating | PE (Polyester)/epoxy/PVDF |
| color | Ral color chart , as per clients sample |
| Coating thickness | 10~25Um |
Adhesion |
5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance |
No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |
| End application | roofing, Ceiling, curtain wall, Aluminum window and door, Traffic signs, Cabinets, ACP, Tank, Channel letter, Can tab/body/lid, Marine, Insulation,Refrigerator,Bottle caps, contruction ,building ,decoration ,automobile ,device parts. |
Test Item |
PE |
PVDF |
Color Difference |
ΔE≤2.0 |
ΔE≤1.5 |
Gloss Difference |
≤5 |
≤5 |
Coating Thickness |
Two layers min 23µm |
Two layers min 25µm |
Three layers min 30µm |
Three layers min 23µm |
|
Pencil Harness |
≥HB |
HB |
T-bend |
≤3T |
≤3T |
Adhesion |
Grade 0 |
Grade 0 |
Impact |
≥20kg.cm |
≥50kg.cm |
Boiling Water Resistance |
4h no change |
4h no change |
Solvent Resistance |
200 times no break |
200 times no break |
Acidity Resistance |
5%HCL 24hrs no change |
5%HCL 24hrs no change |
Alkali Resistance |
5%NaOH 24hrs non change color |
5%NaOH 24hrs non change color |
ΔE≤2.0 |
ΔE≤2.0 |
|
Oil Resistance |
20# oil 24hrs no change |
20# oil 24hrs no change |
Salt Spray Resistance |
720hrs≤Grade 1e |
720hrs≤Grade 1e |
Abrasion Resistance |
≥5L/µm |
≥5L/µm |
Dirt Resistance |
≤5% |
≤5% |

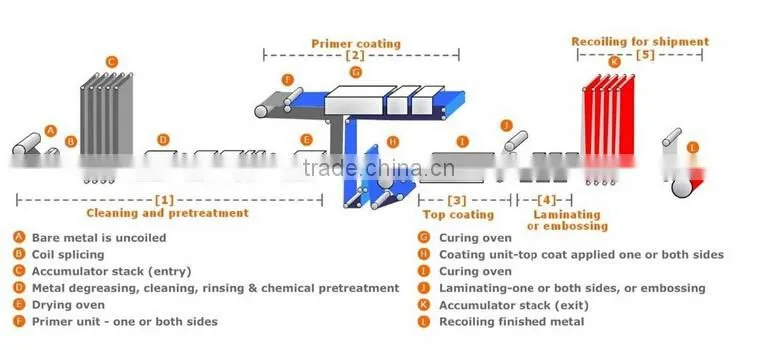

Process of Coating Line:
- Stitching the strip to the previous coil
- Cleaning the strip
- Power brushing
- Pre-treating with chemicals
- Drying the strip
- Applying primer on one or both sides
- Curing (often only 15 to 60 seconds!)
- Cooling the strip
- Top coating on one or both sides
- Second curing
- Cooling down to room temperature
- Rewinding of the coated coil
aluminum ingot
↓
aluminum billets
↓
roller coating
↓
Quality:
With the top-grade equipment, material with super quality and global brand, the best skill from accumulative experience for long time. Our products can keep excellent quality and stability. Meanwhile it is certified by ISO9001:2000 international quality management system, SGS, CE, SONCAP,

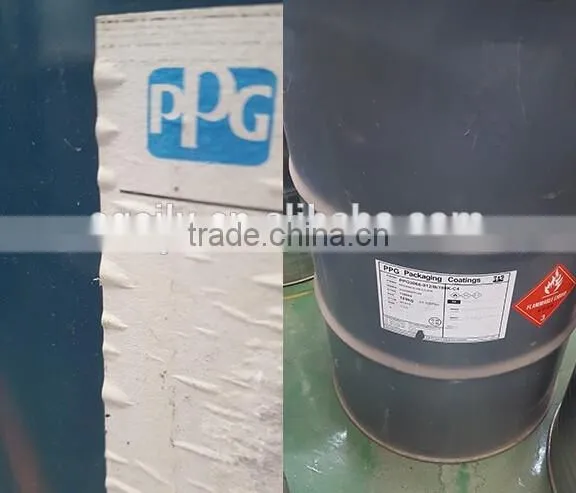

coating painted brand: PPG and NIPPON

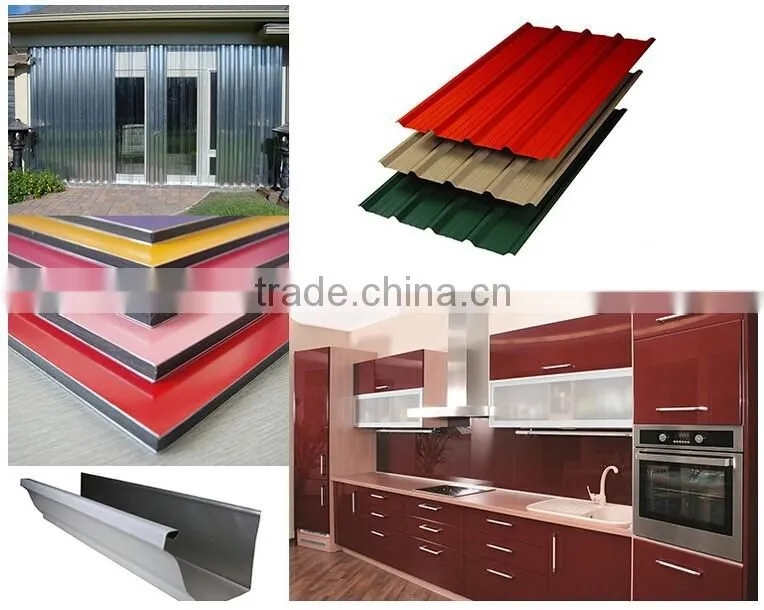

Application
1) Exterior applications such as: Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations
2) Interior applications such as: Wall cladding, ceilings, bathrooms, kitchens and balconies
3) Advertisement and market applications such as: Display platforms, signboards, fascias and shop fronts
4) Transport and industry application

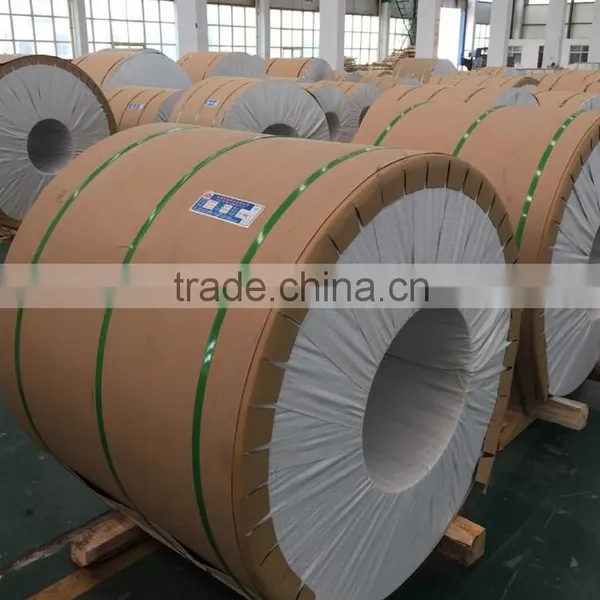

Packing details:
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 30~40 tons.
| products | package method | unit weight |
| aluminum sheet | reinforced by steel belt | 1~2.5tons |
| aluminum coil | eye to sky (vertical) or eye to wall(horizontal) | 1~2.5tons |
| aluminum circle | packed in wooden case | as clients request |
| aluminum foil | big roll or small roll | 70~2500kgs |
Business terms:
Payment Terms: 30% deposit before production,the balance against the B/L scanned copy, or L/C at sight;
Packing method: strong overseas water proof package with wooden pallets or boxes. The goods will be shipped out by Sea, 20'GP/40'GP
Port of Loading: Qingdao, Shanghai, etc
Leading of goods: within 25 working days after the deposit confirmed.
Henan Zhongxin Aluminum Co.,Ltd is a professional Aluminum manufacture which has 30 years experiences for manufacturing aluminum sheet, coil, and foil in China.
Our main products include: various alloy of aluminum plate, strip, foil, color-coated aluminum coil, aluminum sheet circle, ginning aluminum plate, aluminum and copper strip/foil for dry type transformer.The products are widely used in areas including electric power, transportation, construction decoration, aerospace, packaging materials, electronic appliances, etc.
If you want to see more products of our company, you can surf our website: or zxly.en.china.cn
Should you have any questions, please do not hesitate to contact me! I will reply you VERY SOON!
