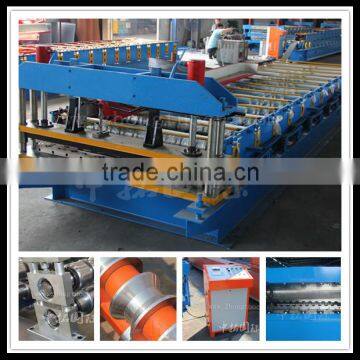

ZT Roof Tile Roll Forming Machine

Roof sheet profile

Main Components
1. Manual Decoiler: one set
Un-powered,Manually control steel coil inner bore shrinkage and stop,
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 5 Ton
2. Main machine:
With feeding material guide, body frame made from H type steel by welding;
Rollers manufactured from 45#, precision machined, hard Chrome Coated;
Shafts Diameter=75mm,precision machined
Gear/Sprocket driving, about 16steps to form
Main Motor=5.5KW , Frequency speed control
Forming speed approx.5m/min
3. Hydraulic Cutting device:
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting
Pump motor: 5.5KW Cutting pressure: 0-12Mpa
Cutting tool material: Cr12, Heat treatment
4. PLC Control System(key components use international famous brand Japan PANASONIC/MITSUBISHI or German
Schneider Electric/Siemens or Taiwan Delta)
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V
5. Exit Rack Un-powered, two units
6. User's manual in English

Features of Roof Tile Machine
Different tile roof forming machines can produce different shapes of steel tile roof sheets in various thickness and colors. Steel tile roof sheets are the new substitutes for traditional clayey, concrete tiles. They are more popular because of the low cost, short building period, re-cycle use, and elegant appearance. They are used as the roof of villas, luxury houses, theatres, exhibition centers, etc.
The complete roof tile machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the roof tile machine produces it automatically. The machines are easy to operate and running stable.
After-sale Service
1. The warranty of the machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: 90 days
3. Port of loading: port of Tianjin Port
4. Type of payment: T/T
5. Export: Australia, Ireland, Poland, Mexico, India, Iran, Dubai, Sri Lanka, Philippines, Iraq, and others.
As an experienced roof tile machine manufacturer and supplier based in China, HF provides a wide range of products that includes glazed tile forming machine, guardrail forming machine, sheet slitting line, construction roof panel forming machine, and more.

The advatage of ZT roof tile machine comparing with other roof tile machines from other facory:

1  ZT roof tile machine with high quality, the enginner design the machines carefully and the workers make the machines according to customer 's specifications strictly .

Thers is one important point in of the machine apperance that can proove ZT roof tile roll forming machine is better than others:

tThers are two holes of the ZT roof tile forming machine which are used for loading the machines and unloding the machines by carriage car so that the machines can advoid from been destroyed by the forklift car.

Cangzhou zhongtuo cold roll forming machine company is prefessional making different kinds of the roll forming machine.

we have more than 20 years experience in making the roll forming machine.And our machine is customized made according to customer's sheet profile drawing. We have a strong enginner team to design the machines for you! And we also own a strong and mature after sales service team to offer you any service to help you with your sheet production by our roofing machines.

 The tile roofing roll forming machine is packaged by the plastic film to keep the mahines from being affacted from damp during the flight on the ship. and the machines is loaded into the container when is finished in the factory to profect the machines from being damager during loading to the ship. So we can guarantee the machine is perfect conditions during the delivery.

The pictures below is for your refercence:
