Superior Quality Utp Female Keystone Jack Cat5e
Product Description
CAT 6 UTP KEYSTONE JACKS (WITHOUT TOOLS)
This series keystone jack work together with high speed cables, cords and panels to provide performance beyond proposes Category 6 standards.
Features and benefits

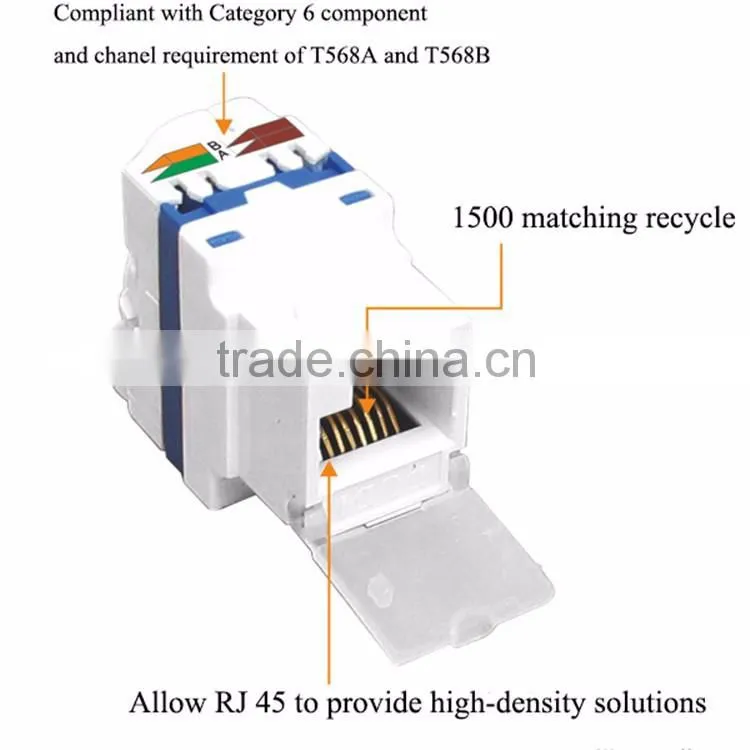

1. Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements.
2. Housing: high temperature thermoplastic
3. Compact jack design, 8 positions and 8 conductors
4. Contact: phosphor bronze, phosphor bronze with 6 to 50u” gold plate
5. Accept 22-26AWG solid with a insulation diameter of 0.4-0.6 mm
6. Easy to be terminated, low attenuation loss and high return loss
7. High reliability and superior performance
8. Available in different colors
Mechanical characteristics
Description |
Description |
Contract resistance(max) |
100mΩ |
Insulation resistance (min) |
500mΩ |
Return loss (dB) |
5.8(dB) |
next(dB) |
4.7(dB) |
Ps next(dB) |
5.5(dB) |
Related Products
Order information
Part number |
Description |
Standard Color |
Inner box |
Carton |
Carton measurement |
Carton Weight |
NT-006-C6 |
CAT 6 UTP KEYSTONE JACKS (WITHOUT TOOLS) |
WHITE |
50 PCS |
1000 PCS |
55.5*44.5*37CM |
13kg |
