Original Cat6 Utp Cat6e Indoor Keystone Jack
Product Description

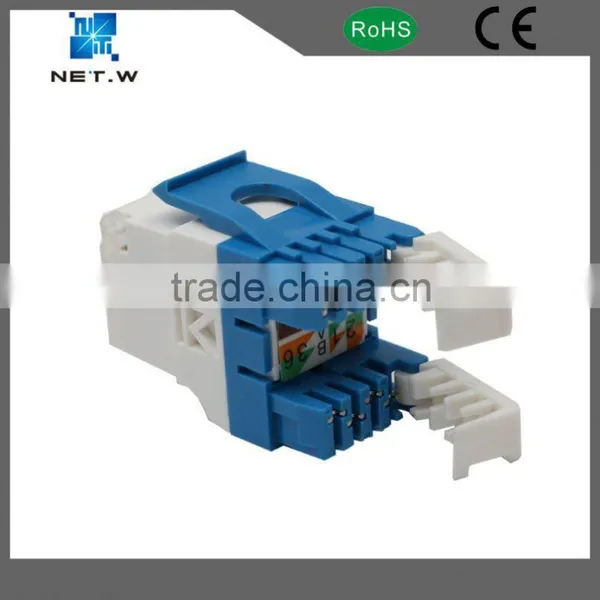

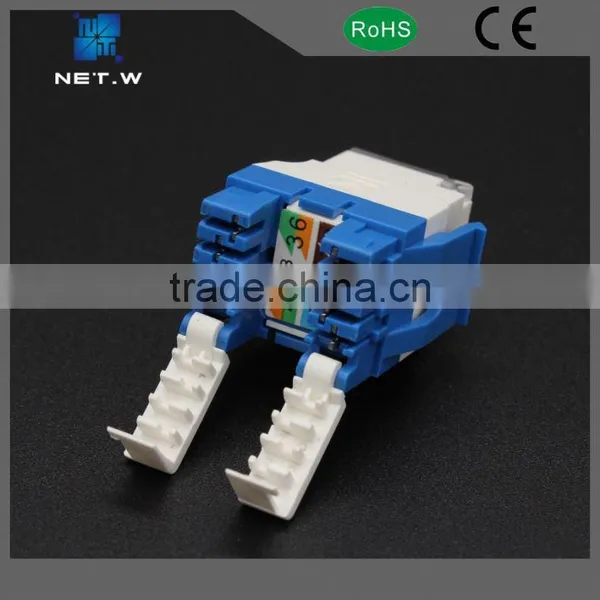

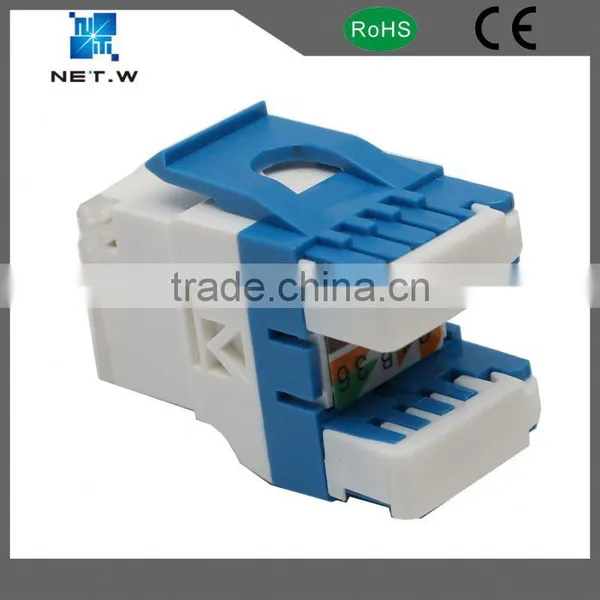

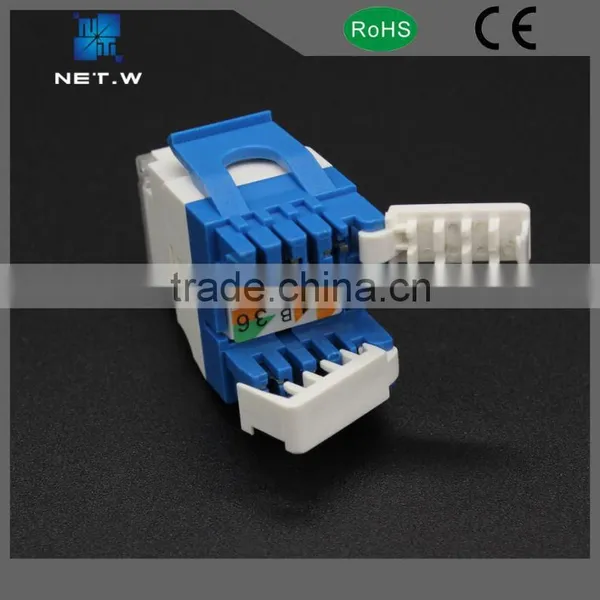

CAT 5E UTP KEYSTONE JACKS (WITHOUT TOOL)
This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposes Category 5E standards
Features and benefits

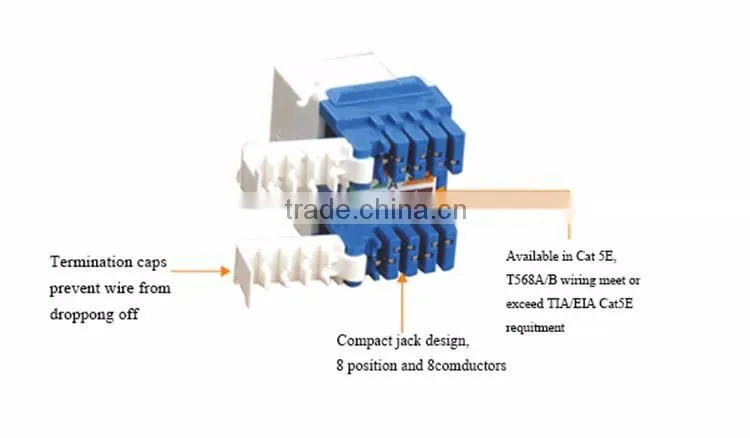

1. Available in Cat 5E, T568A/B wiring, meet or exceed TIA/EIA Cat 5E requirements.
2. Housing: high temperature thermoplastic
3. Compact jack design, 8 position and 8 a conductors
4. Contact: phosphor bronze, phosphor bronze with 6 to 50” gold plate
5. Accept 22-26AWG solid with a insulation diameter of 0.4-0.6mm
6. Easy to be terminated, low attention loss and high return loss
7. High reliability and superior performance
8. Available in different colors
Mechanical characteristics
Description |
Description |
Contract resistance(max) |
100mΩ |
Insulation resistance (min) |
500mΩ |
Return loss (dB) |
5.8(dB) |
next(dB) |
4.7(dB) |
Ps next(dB) |
5.5(dB) |
Related Products
Order information
Part number |
Description |
Standard Color |
Inner box |
Carton |
Carton measurement |
Carton Weight |
NT-005-C5 |
CAT 5E UTP KEYSTONE JACKS (WITHOUT TOOLS) |
WHITE |
50 PCS |
1000 PCS |
55.5*44.5*37CM |
13kg |
