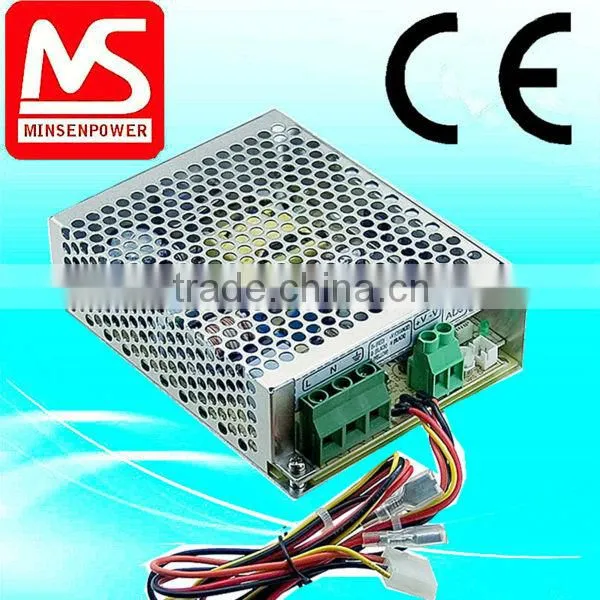

Help CenterMinsen SCP-50-24 Charger Power Supply 27.6v 1.8a
Related Products
-
Minsen SCP-50-24 Switching Power Supply With Charging 27.6v 1.8aUS$ 3.66 - 9.66MOQ: 10 Pieces -
Minsen SCP-75-12 Switching Power Supply 13.8V 5.4AUS$ 3.66 - 10.66MOQ: 10 Pieces
-
Minsen SCP-75-12 13.8V 5.4A Switching Power Supply 13.8V 5.4AUS$ 3.66 - 10.66MOQ: 10 Pieces
-
Minsen SCP-75-12 13.8V 5.4A Switching Power Supply With Charger 13.8V 5.4AUS$ 3.66 - 10.66MOQ: 10 Pieces
-
Minsen SCP-75-12 13.8V 5.4A Switching Power Supply With Charging 13.8V 5.4AUS$ 3.66 - 10.66MOQ: 10 Pieces
Specifications
1.Minsen switching power supply2.High quality and good price
3.scp-50-24 27.6v 1.8a power supply
|
MODEL
|
SCP-50-12 |
SCP-50-24 |
|
OUTPUT |
DC VOLTAGE |
13.8V |
27.6V |
RATED CURRENT |
3.6A |
1.8A |
|
CURRENTRANGE |
0 ~ 3.6A |
0 ~ 1.8A |
|
PEAK 5S Note.6 |
4.3A |
2.2A |
|
RATED POWER |
49.7W |
49.7W |
|
RIPPLE & NOISE (max.)Note.2 |
120mVp-p |
200mVp-p |
|
VOLTAGEADJ. RANGE |
+15,-5% |
+15,-5% |
|
VOLTAGE TOLERANCENote.3 |
±2.0% |
±1.0% |
|
LINE REGULATION Note.4 |
±1.0% |
±1.0% |
|
LOAD REGULATION Note.5 |
±2.0% |
±1.0% |
|
SETUP, RISE TIME |
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load |
||
HOLD UP TIME (Typ.) |
50ms/230VAC 16ms/115VAC at full load |
||
INPUT |
VOLTAGERANGE |
85 ~ 264VAC 120 ~ 370VDC |
|
FREQUENCYRANGE |
47 ~ 63Hz |
||
EFFICIENCY(Typ.) |
81% |
85% |
|
AC CURRENT (Typ.) |
1.1A/115VAC 0.65A/230VAC |
||
INRUSH CURRENT (Typ.) |
COLD START 45A |
||
LEAKAGE CURRENT |
<2mA / 240VAC |
||
FUNCTION |
TEMP. COMPENSATION |
By NTC (not provide with the power supply) |
|
OUTPUT VOLTAGE SENSOR |
+0.7 L=output voltage V -0 |
||
PROTECTION |
OVERLOAD |
2.2 ~ 2.9A rated output power |
2.2 ~ 2.9A rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||
OVER VOLTAGE |
16.6 ~ 19.3V |
16.6 ~ 19.3V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +60°C (Refer to output load derating curve) |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||
STORAGE TEMP., HUMIDITY |
-40 ~ +85°C , 10 ~ 95% RH |
||
TEMP. COEFFICIENT |
±0.03%/ °C(0 ~ 45°C ) |
||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
||
|
SAFETY & EMC (Note 7) |
SAFETY STANDARDS |
UL60950-1, CB(IEC60950-1) approved |
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH |
||
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
||
HARMONIC CURRENT |
Compliance to EN61000-3-2,-3 |
||
EMSIMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A |
||
OTHERS |
MTBF |
495.7K hrs min. MIL-HDBK-217F (25°C ) |
|
DIMENSION |
129*98*38mm (L*W*H) |
||
PACKING |
0.45Kg; 30pcs/14.5Kg/0.95CUFT |
||
