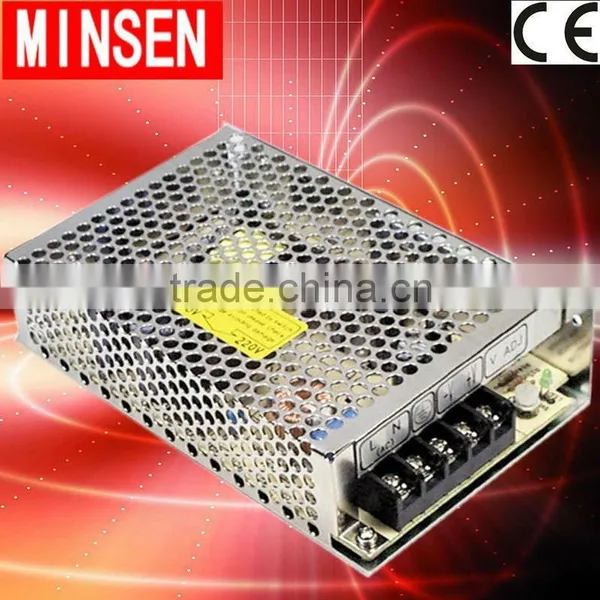

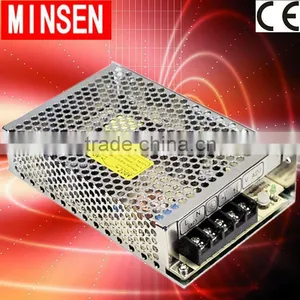

AC DC S-50-12 12V 4.2A switch power supply single output for led cctv tv ad and so on

MODEL

S-50-5

S-50-12

S-50-15

S-50-24

OUTPUT DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

10A

4.2A

3.4A

2.1A

CURRENT RANGE

0 ~ 10A

0 ~ 4.2A

0 ~ 3.4A

0 ~ 2.1A

RATED POWER

50W

50.4W

51W

50.4W

RIPPLE & NOISE (max.) Note.2

75mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

22.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±0.5%

±0.5%

±0.5%

SETUP, RISE, HOLD TIME

200ms, 100ms, 20ms at full load

INPUT

VOLTAGE RANGE

85 ~ 132VAC / 170 ~ 264VAC selected by switch       240 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

71%

78%

78%

82%

AC CURRENT

1.3A/115VAC       0.65A/230VAC

INRUSH CURRENT (max.)

COLD START 18A/115VAC           36A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type: Fold back current limiting, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.

-10 ~ +60ºC (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85ºC, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

OTHERS

MTBF

408.3K hrs min. MIL-HDBK-217F (25ºC)

DIMENSION

159*97*38mm (L*W*H)

PACKING

0.444Kg; 30pcs/14.92Kg/0.0250CUFT
