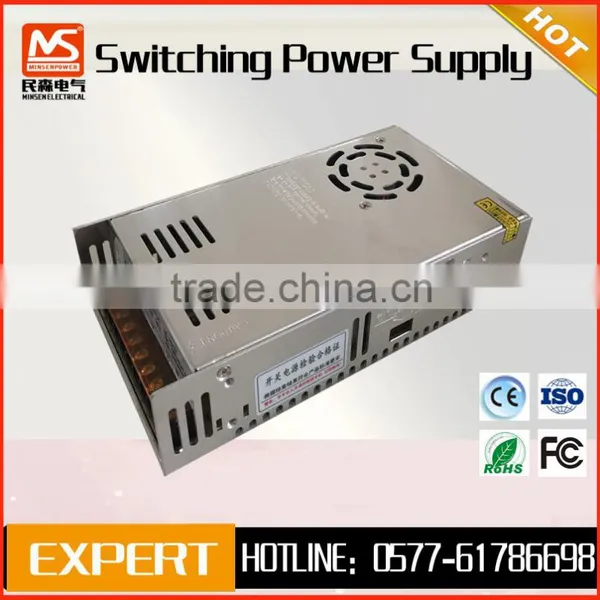

Minsen 350w 12V 30A Single Output Slim Swithing Power Supply

Name: Minsen 350w 12V 30A Single Output Slim Swithing Power Supply
Brand: minsen
SKU: 106463697

US$ 2 - 20 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

minsen

Model Number:

S-350-12

Yueqing Minsen Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name minsen

Model Number S-350-12

Output Power Other, 350W

Output Type Single

Input Voltage Other, 110V,220VAC

Output Voltage 12V

Output Frequency 63Hz

Output Current 30A

Switching power supply:

low price and high reliability, high efficiency and low operation temperature.

We are switching power supply manufacturer .we can accept OEM&ODM

MODEL		S-350-5	S-350-7.5	S-350-12	S-350-15	S-350-24	S-350-48
OUTPUT	DC VOLTAGE	5V	7.5V	12V	15V	24V	48V
	VOLTAGE TOLERANCE	± 2%	± 2%	± 2%	± 2%	± 1%	± 1%
	RATED CURRENT	50A	40A	29A	23.2A	14.6A	7.3A
	CURRENT RANGE	0-50A	0-40A	0-29A	0-23.2A	0-14.6A	0-7.3A
	RATED POWER	250W	300W	348W	348.3W	350.4W	350.4W
	RIPPLE & NOISE(MAX)	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	240mVp-p
	DC VOLTAGE ADJUSTMENT RANGE	± 10%	± 10%	± 10%	± 10%	± 10%	± 10%
	SETUP, RISE, HOLD UP TIME	600ms, 30ms, 20ms
INPUT	VOLTAGE RANGE	85~130/170~264VAC Selected by Switch
	AC CURRENT	6.5A/115VAC 4A/230VAC
	EFFICIENCY	74%	79%	82%	82%	83%	86%
	INRUSH CURRENT	Cold start 50A
	LEAKAGE CURRENT	< 3.5mA/240VAC
PROTECTION	OVERLOAD PROTECTION	110%~150% Shut down O/P voltage, re-power on to recover
	OVER-VOLTAGE PROTECTION	115%-135%
	HIGH TEMPERATURE PROTECTON	115%-135%
ENVIRONMENT	WORKING TEMP. & HUMIDITY	-10C~+50C; 20%~90 %RH
	STORAGE TEMP. & HUMIDITY	-20C~+85C; 10%~95 %RH
	VIBRATION	10~500Hz, 2G 10min. /1cycle, period for 60min, each along X. Y. Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
SAFETY	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
STANDARDS	SAFETY STANDARDS	Design refer to UL1950, EN60950
STANDARDS	EMC STANDARDS	Design refer to EN55022, EN55024, EN61000
OTHERS	WEIGHT	0.9Kg
OTHERS	PACKING	30pcs/ctn products size:223*6840mm
NOTE	1. Tolerance: Includes set up tolerance, line regulation and load regulation. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a 0.1μ f & 47μ f parallel capacitor.
