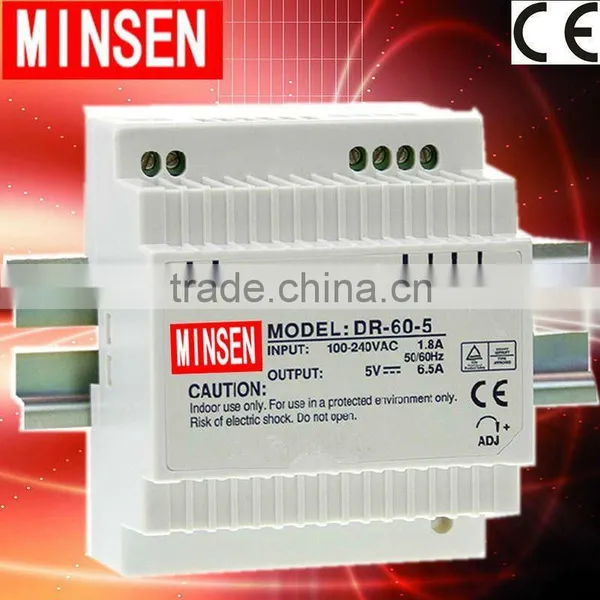

60w din rail switching power supply DR-60-5

Specifications

Competitived price and high reliability
Universal AC input/Full range
Protections:Short circuit/Over load/Over voltage

60w Din Rail Switching Power Supply DR-60

SPECIFICATIONS

INPUT

Voltage Range  88~264 VAC   47~63 Hz; selected by switch 124~370VDC

AC Current      1.2A/115 V 0.8A/ 230 V

Efficiency      76%(HDR-60-5); 82%(HDR-60-12); 83%(HDR-60-15); 81%(HDR-60-24)

Inrush Current  Cold start 20A/115V 40A/230V

Leakage Current  <1mA/240VAC



PROTECTION

Over Load 105%~160%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage 115%~135%

Protection type: Shut down o/p voltage, re-power on to recover



ENVIRONMENT

Working Temp., Humidity -20°C~+60°C; 20%~90 %RH

Storage Temp., Humidity -40°C~+85°C; 10%~95 %RH

Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes



SAFETY

Withstand Voltage I/P-O/P: 3KVAC

Isolation Resistance I/P-O/P: 100M Ohms / 500VDC



STANDARD

Safety Standard Design refer to UL60950-1,TUV EN60950-1,EN50178

EMC Standard Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3



OTHERS

Weight 0.3Kg

Packing 48pcs/15.4Kg/1.02CUFT
