30W 5V Dinrail Mode Single Output Power Supply Zhejiang Circuit

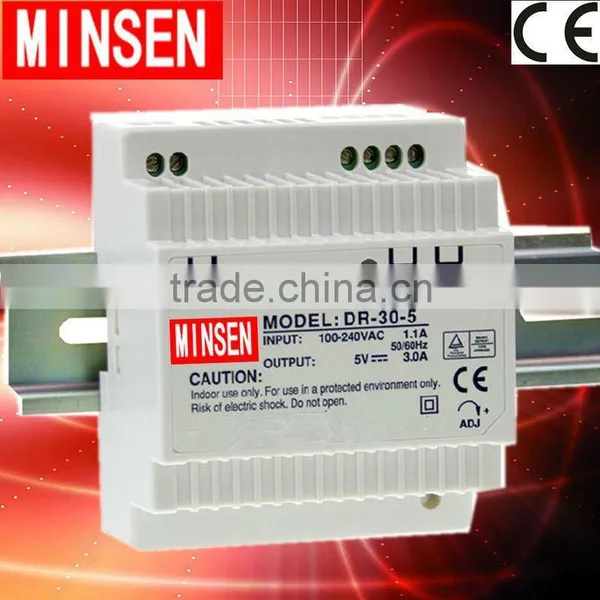

30W 5V Dinrail Mode Single Output Power Supply Zhejiang Circuit thumbnail-1
30W 5V Dinrail Mode Single Output Power Supply Zhejiang Circuit photo-1
US$ 2 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
minsen
Model Number:
DR30-5
Contact Supplier Request Quote Chat Now
Yueqing Minsen Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name minsen
Model Number DR30-5
Output Power Other, 30w
Output Type Single
Input Voltage Other, 110V,220VAC
Output Voltage 5V
Output Current 3A

Specifications

1.Competitived price and high reliability
2.Universal AC input/Full range
3. single output power supply

MODEL DR-30-5 DR-30-12 DR-30-15 DR-30-24
OUTPUT DC VOLTAGE 5V 12V 15V 24V
RATED CURRENT 3A 2A 2A 1.5A
CURRENT RANGE 0 ~ 3A 0 ~ 2A 0 ~2A 0 ~ 1.5A
RATED POWER 15W 24W 30W 36W
RIPPLE & NOISE (max.) 80mVp-p 120mVp-p 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 21.6 ~ 26.4V
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load
HOLD TIME(Typ.) 100ms/230VAC 30ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 74% 81% 82% 83%
AC CURRENT 0.88A/115VAC 0.48A/230VAC
INRUSH CURRENT(max.) COLD START 15A/115VAC 30A/230VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Constant current limiting,recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V
Protection type : Shut down o/p voltage,re-power on to recover
ENVIRONMENT WORKING TEMP. -20 ~ +60ºC (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85ºC , 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ºC (0 ~ 50ºC)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Design refer to UL60950-1,TUV EN60950-1,EN50178
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A
OTHERS MTBF 441.5K hrs min. MIL-HDBK-217F (25ºC)
DIMENSION 78*93*56mm (L*W*H)
PACKING 0.27Kg; 48pcs/14Kg/1.02CUFT
