Main Features
1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).

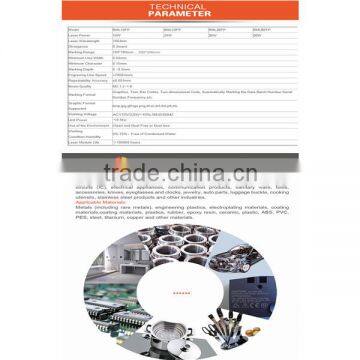

Laser Power |
10W |
20W |
30W |
Laser Wavelength |
1064nm |
||
Q-frequency |
20KHz~30KHz |
||
Divergence |
0.3mard |
||
Marking Range |
100*100mm |
||
Minimum Line Width |
0.02mm |
||
Minimum Character |
0.15mm |
||
Marking Depth |
0 ~0.5mm |
||
Engraving Line Speed |
≤7000mm/s |
||
Repeatability Accuracy |
±0.001mm |
||
Beam Quality |
M2:1.2~1.8 |
||
Marking Format |
Graphics,Text,Bar Codes,Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc. |
||
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
||
Working Voltage |
220V±10%/50Hz/4A |
||
Unit Power |
0.5kw |
||
Use of the Environment |
Clean and Dust Free or Dust less |
||
Working Condition:Humidity |
Free of Condensed Water |
||
Laser Module Life |
100000 hours |
||
Warranty the whole machine for 2 YEARS and laser tube for 4 months; offer lifelong repair; laser tube’s
average life is 4000-10000 working hours(depends on the laser power); Offer 24 - hour technical support.
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
