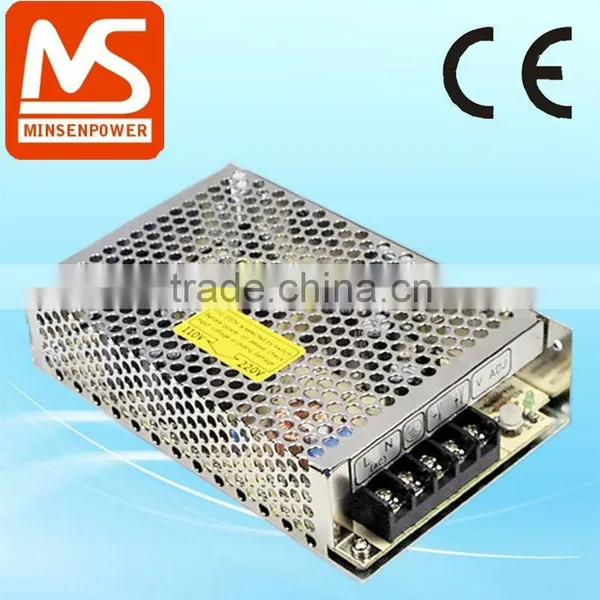

Minsen 12v 50w Power Supply

Name: Minsen 12v 50w Power Supply
Brand: minsen
SKU: 106461029

US$ 2 - 30 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

minsen

Model Number:

D-50

Yueqing Minsen Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name minsen

Model Number D-50

Output Power Other, 50W

Output Type Dual

Input Voltage Other, 110V,220VAC

Output Voltage 12V

Output Current 2A

Specifications

low price and high reliability, high efficiency and low operation temperature.

Model Specification	D-50 A		D-50 B
DC Output Voltage	5V	12V	5V	24V
Iutput Voltage Error	± 2%	± 3, -7%	± 2%	± 3, -5%
Rated Output Current	6A	2A	6A	1A
Output Current Range	1-6A	0.3-2A	1-6A	0.2-1A
Tripple and Noise	50mVp-p	100mVp-p	50mVp-p	100mVp-p
Iniet Stability	± 0.5%	± 1%	± 0.5%	± 1%
Tolerance Voltage	± 0.5%	± 5%	± 0.5%	8%
DC Output Power	54W		54W
Efficiency	73%		73%
Adjustable Range for DC Voltage	`+10, -5%		± 10, -5%
AC Input Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current	1.3A/115V 0.65A/230V
AC Inrush Current	Cold-Start Current: 18A/115V, 36A/230V
Leakage Current	<0.5mA/240VAC
Overload Protection	105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery
Over Voltage Protection	…………
High Temperature Protection	…………
Temperature Coefficient	± 0.03% /°C (0~50°C)
Start, Rise, Hold time	200ms, 50ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand Voltage	Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation Resistance	Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity	`-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity	`20°C~+85°C, 10%~95%RH
Overall Dimension	1599838 mm
Weight	0.52 kgs
Safety Standards	Meet UL 1012 requirement (Not apply for the mark)
EMC Standards	Meet FCC Part 15J Conduction class B
