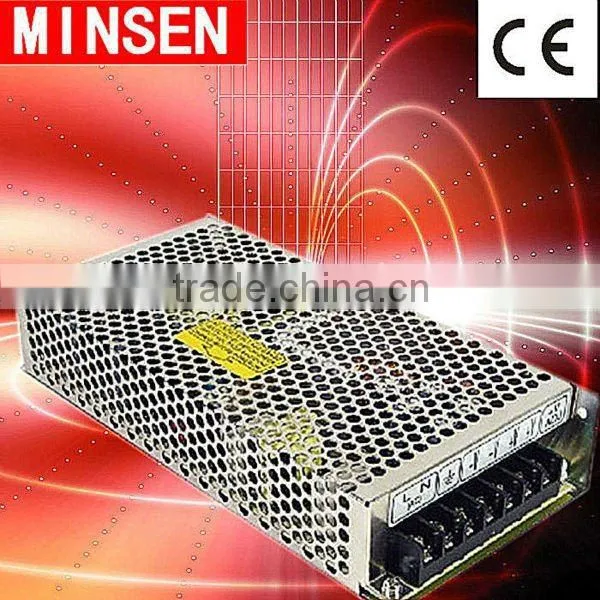

100W Cctv Dual Switching Power Supply

Name: 100W Cctv Dual Switching Power Supply
Brand: minsen
SKU: 106460545

US$ 0.99 - 8.99 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

minsen

Model Number:

D-100-5

Yueqing Minsen Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name minsen

Model Number D-100-5

Output Power Other, 100W

Output Type Dual

Input Voltage Other, 110V,220VAC

Output Voltage 5V

Output Current 10A

Specifications

low price and high reliability,
high efficiency and low operation temperature.
LED power supply

INDEX TYPE	D-100U1		D-100U2
DC VOLTAGE	5V	12V	5V	24V
VOLTAGE ADJ.RANGE	+10%--5%		+10%--5%
VOLTAGE TOLERANCE	±2%	±6%	±2%	±7%
RATED CURRENT	10A	4A	6A	3A
CURRENT RANGE	2-10A	0.5-4A	2-6A	0.5-3A
RATED POWER	98W		102W
EFFICIENCY(Typ.)	78%		80%
RIPPLE&NOISE(MAX.)	60mvp-p	100mvp-p	60mvp-p	100mvp-p
LINE REGULATION	±0.5%	±1%	±0.5%	±1%
LOAD REGULATION	±2%	±4%	±0.5%	±4%
VOLTAGE RANGE	176-264VAC 47-63Hz
AC CURRENT	2.5/115VAC 1.25A/230VAC
INRUSH CURRENT(MAX.)	cole inrushed current 50A/230VAC
LEAKAGE CURRENT	<3.5mA/240VAC
OVERLOAD PROTECTION	105%-135% type output cutput recovery
OVERVOLTAGE PROTECTION	115%-145%
OVERTEMPERATURE PROTECTION	--
TEMP.COEFFICIENT	±0.03%(0-50)
SETUP.RISE,HOLD TIME	200ms 50ms 20ms /230VAC
WITHSTAND VOLTAGE	I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
ISOLATED RESISTOR
STORAGE TEMP.HUMIDITY	0-50@100%,-10@80%,60@60%,20%-90%RH
WEIGHT
SAFETY STANDARDS	UL1012 TUV.EN60950 UL1950
EMC	EN55022 CLASSB.EN61000-4-2,3,4,5 EN60555-2-3
Note 1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature. 2.Tolerance:includes set up tolerance,line regulation and load regulation 3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 4.line regulation:min&max voltage of the rated load. 5.load regulation:load from 0 to 100%.
