Quick Details
| Application: | Condition: | Laser Type: | |||
| CNC or Not: | Cooling Mode: | Control Software: | |||
| Graphic Format Supported: | Working Accuracy: | Place of Origin: | |||
| Brand Name: | Model Number: | Power(W): | |||
| Certification: | After-sales Service Provided: |
New design mini type fiber laser marking machine BML-FM
Laser Power |
10w |
20w |
|||
Laser Wavelength |
1064nm |
||||
Marking Range |
100*100mm |
||||
Beam Diameter |
6mm |
||||
Frequency Tunable Range |
20KHz~60KHz |
||||
Marking Depth |
0-0.5mm |
||||
Engraving Line Speed |
≤7000mm/s |
||||
Repeatability Accuracy |
±0.001mm |
||||
Beam Quality |
M2:1.2~1.8 |
||||
Marking Fprmat |
Graphics,Text,Bar Codes,Two-dimensional Code,Automatically Marking the Date,batchnumber,Serialnumber,Frequency,etc. |
||||
Graphic Format Supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt.etc |
||||
Power Supply |
AC110V/220V+10%,50HZ/4A |
||||
Unit Power |
<0.5kw |
||||
Use of the Environment |
Clean and Dust Free or Dust less |
||||
Drive System |
High-precision 3-phase Stepper Motor |
||||
Working Condition:Humidity |
10%~95% Free of Condensed Water |
||||
Laser Module Life |
>100000hours |
||||
1) The quality warranty period is 2 years which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage. We will provide you with the fittings for free during the guarantee period. But please kindly noted that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and there will be reasonable charged.
2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to deal with the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

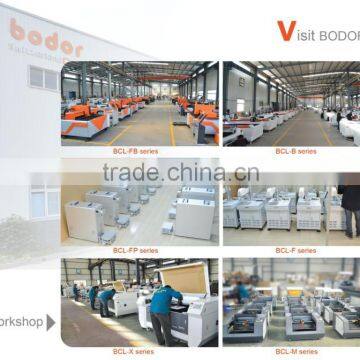

Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
