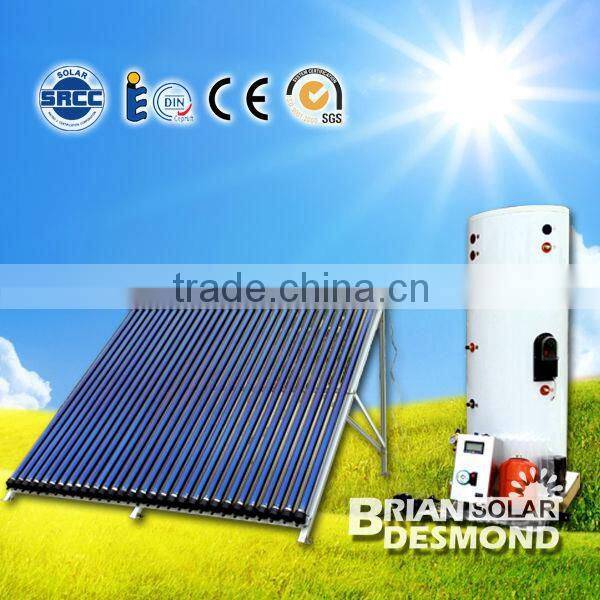

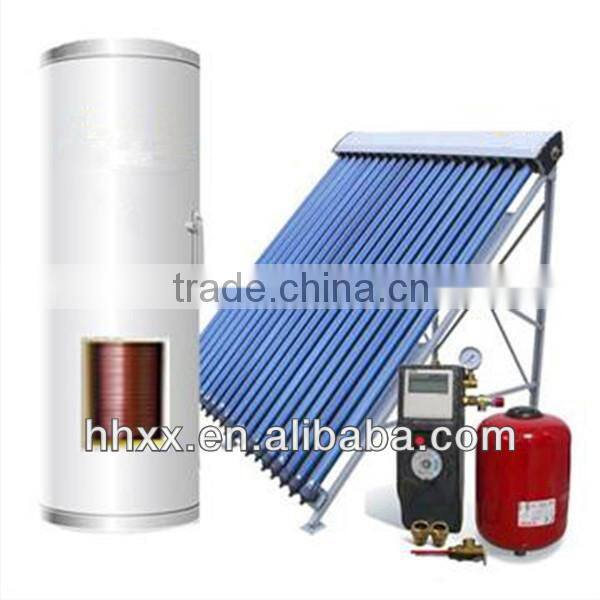

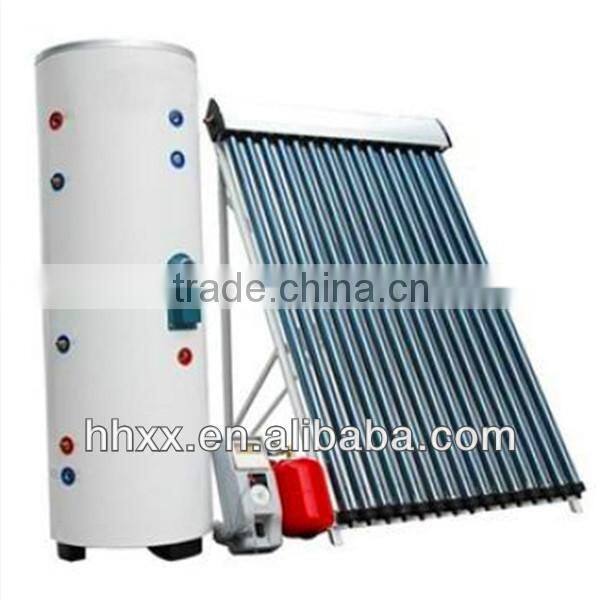

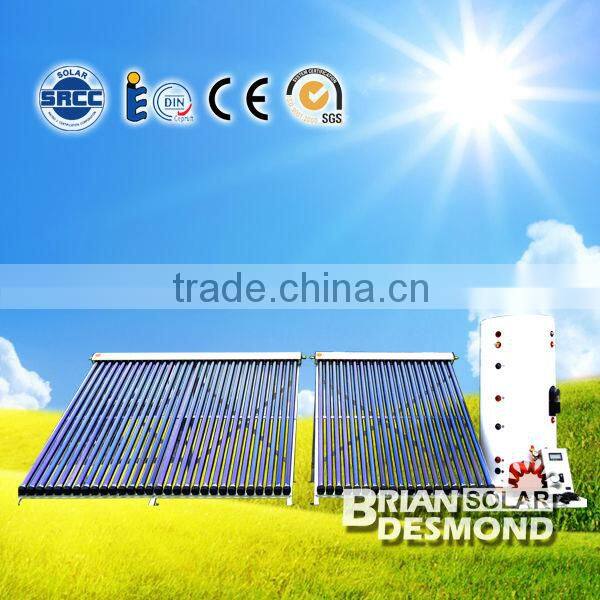

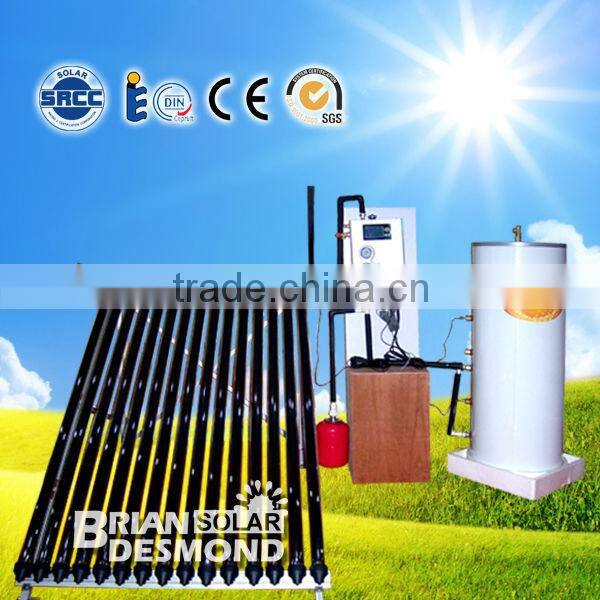

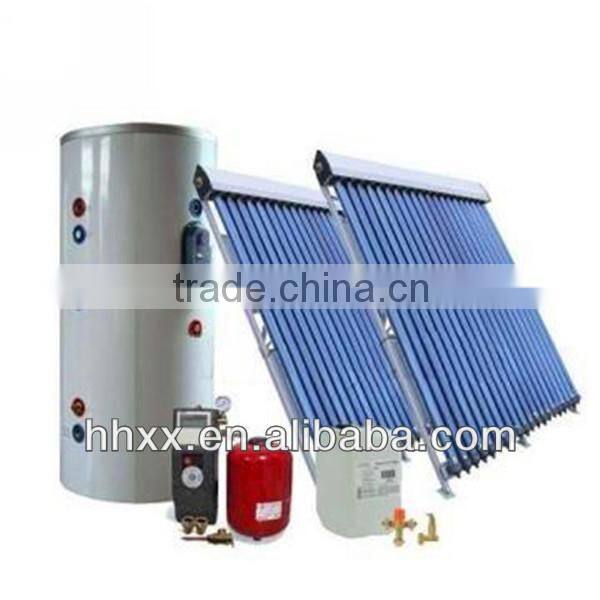

split pressurized heat pipe solar water heater for bathroom
Descripition |
Split pressurized solar water heater system |
Material of out manifold |
0.31-0.4mm thickness color steel/ fluorine carbon steel |
Material of inner tank |
Food grade 1.2-2.0mm thickness SUS304 stainless steel |
Tank insulating layer |
50mm high-density polyurethane foamed |
Inlet and outlet hole |
Male G3/4 |
Max pressure |
0.6 Mpa |
Solar collector tube |
3.3 Borosilicate glass with SS-ALN(L)/ALN or CU/SS/ALN coating |
Thickness of glass tube |
1.6mm |
Vacuum tube tightness |
P≤0.005 Pa |
Absorption |
as=0.93-0.96(AM1.5) |
Emission ratio |
εh=0.04-0.06(80C±5C) |
Idle sunning property parameters |
Y=220~260m2.C/KW |
Average heat loss coefficient |
ULT=0.6~0.7W/(m2.C) |
Bracket: |
2.0mm thickness aluminum alloy |
Welding: |
Argon arc welding |
Fastening pieces: |
Made of stainless steel screw |
Tank capacity |
100L,150L,200L,300L,350L,400L,450L,500L |
Solar collector |
10/12/15/18/20/24/30/36 tubes |
Absorber area |
2.343m² |
OEM |
Available |
Heat exchanger length |
1500mm |
split pressure solar water heater working principle
1. The collector absorbs solar energy and transmits it to the water tank through circulation.
2. When the temperature of the collector reaches the set value, the controller activates the circulation
pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value,
the circulation pump will be shut automatically.
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to
work automatically.
split pressure solar water heater features
1.Collector separates with the storage tank. The tank can be put anywhere of the house
2. And the collector can be put on both tilted roof and flat roof
3. Module design, arbitrary combination, harmony with the building perfectly
4. Intelligent control and automatic operation
5. Anti-freeze: no water inside the tubes when it works
6. The system controller has the anti-freezing function.The temperature circulation will operate
while it reaches the fixed temperature.
7.Multifunction: Bathing, washing, domestic heating.
8. Workable at anytime and enjoyable
9. For school,hotel,swimming pool or larger project use
