e training martingale collar for big dogs hunting birds

e training martingale collar for big dogs hunting birds

Features of bird dog training supplies:

1. The unit size: L*W*H = 65 *69 *37 mm

2. 8 operating modes and 4 selecting tones for Pointing dog & Moving dog

3. LED power indication

4. Built-in Li-ion rechargeable battery(550 mAH)

5. Rapid charge time within 2 hours for full charge.

6. 5V500mA USB Adaptor

7. Water-proof design

8. Low power consumption

9. Locate one to four dogs at the same time

Operation:

A: Before use

1. Recharge the collar well before use. (reference to the recharge battery)

2. Open the “ON/OFF” switch to “ON” status (reference the “ON/OFF” switch)

B: How the Beeper works

When on, and according to the mode selected, the collar may emit beep sounds when your dog is not moving, if it has been still for at least 5 seconds. As soon as the dog moves, it is considered moving

C: Switching on and Switching off the beeper collar

1.Switching on the collar

To switch on the beeper collar , Press and hold the On/Off button for 1 second . When you heard 2 beeps and see the red LED flash , then release the on/off button , the collar is power on . (Note: You press and hold on/off button for 2 seconds when turning it on , You can enter changing operating modes)

2.Switching off the collar

Press and hold on/off button for 1 second when the collar are in working status , you can hear one long beep and see red led , then release on/off button . The collar is power off .

D: Changing operating modes and selecting tones

BP-118L Beeper Collar allows you to locate one to four dogs at the same time (with four different tones). Either when they are pointing, or when they are moving or pointing.

To change the tone emitted by your Beeper Collar or to change operating modes, when turning it on, you need to press and hold the On/Off button for 2 seconds , The beeper enter Changing Operating Modes .

The collar emits a number of beep sounds (from 1 to 8) to show operating modes from 1 to 8 .

Modes 1 to 8 run through as long as you press and hold on the On/Off button .

Release the On/Off the button as soon as you have reached the desired mode: the collar will memorize the configuration chosen. The next time you turn it on, BP-118L will be in the mode you selected last.

The table below shows how Beeper Collar works according to the mode selected:

E. Setting the movement detection sensitivity

When leaving the factory, the collar is set to an intermediate position (medium sensitivity). It is up to you to adjust the sensitivity of your beeper to your dog’s behavior and to the results you want to obtain.

To change the movement detection sensitivity, you need to remove the Plastic Casing of the collar in order to get access to the sensitivity adjustment screw located inside the collar.

F: Adjusting sound volume

When leaving factory, the collar is set at the maximum volume, the system is set at the maximum stop. You can not turn beyond to increase sound volume.

It is up to you to adjust your Beeper Collar sound volume to the level you wish.

To adjust the volume of your collar, you need to lift the Plastic Casing in order to get access to the adjusting screw located inside the collar.

To decrease the sound volume of your Beeper Collar , turn the volume adjustment screw clockwise to the minimum sound volume .

To increase the sound volume of your Beeper Collar , turn the sound volume adjusting screw counter-clockwise to the maximum sound volume.

Note : The adjustment system has a stop for the minimum sound volume and a stop for the maximum sound volume (maximum 1/2 turn).

E: Cautious

Battery Maintenance : When storing the receive collar for long periods , remember to regularly give the battery a full charge .This should be done once every 10 to 12 weeks

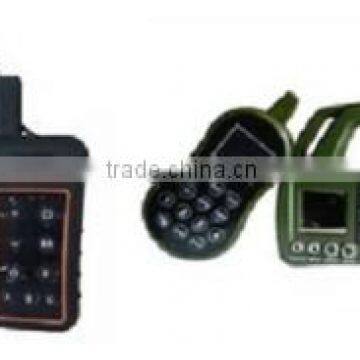

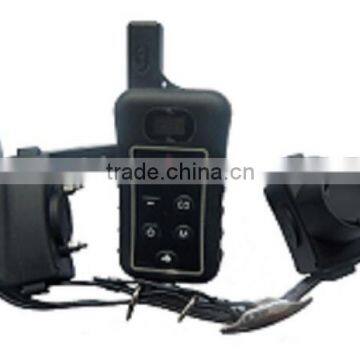

Pictures:

1.We're R&D factory specialized in dog training collar for 5 years.

1.How about your delivery terms?

   Yes.We can accept FOB.

2.What is the main advantage between the well-known brand and yours?

   We have our own R&D team.We have stable quality,cost-effective,timely and professional services      of pre-sale &after-sale.

3.Can you provide samples? How long does it take for sampling?

   Yes.We can send samples for our real customer.Sampling time around 3-5 days.

4.Can you support OEM and how about the lead time?

   Yes.Welcome OEM orders and lead time takes around 45 days after order confirmed.

Looking forward to make win-win business with you.
