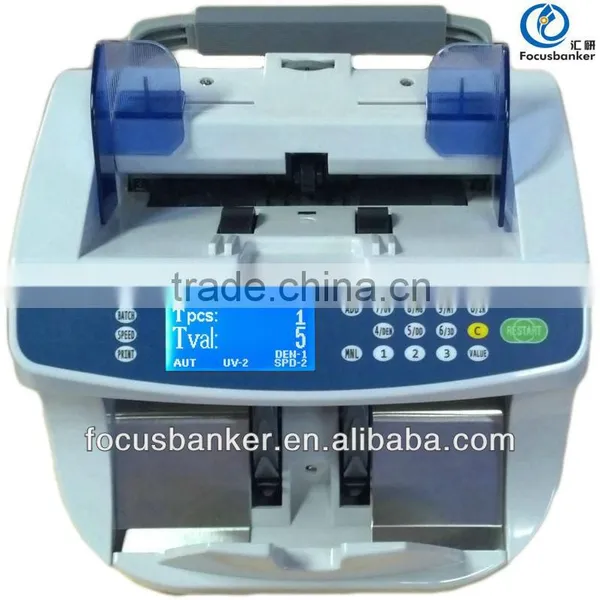

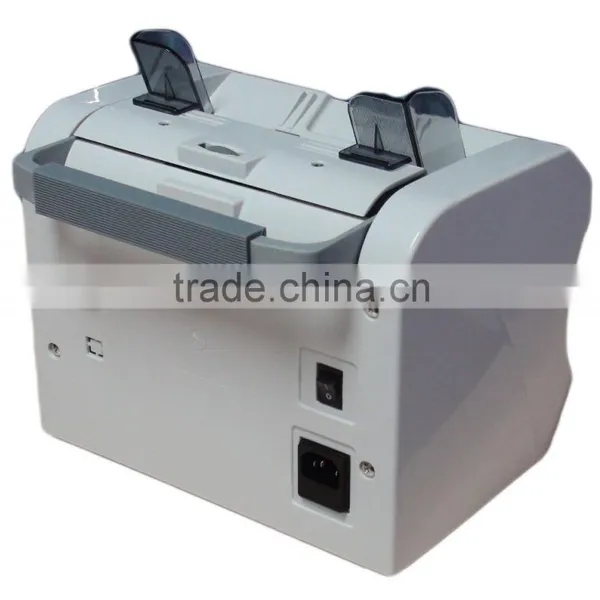

FB-520 Bill counter / currency counter / note counting machine / banknote counter

Advantages

• High quality reliable parts
• Count notes of any condition(new, dirty, unfit, etc.)
• Large LCD display
• High key-board sensitivity, easy handling
• User-friendly interface
• Handle for daily carrying
• Easy maintenance with self-diagnostic system
• Setting are kept in memory even machine turned off

Feature

• Large LCD display for detailed message
• Automatic & Manual Start and Stop
• Automatic half-note, chain note, double note detection
• Accumulation: add result to previous one
• UV MG/MT optional counterfeit detections
• Variable Batch Stop from 1 to 999(preset for 5, 10, 20, 50, 100)
• Count pieces of mixed notes
• Value calculating for selected denomination notes
• Optional DD and 3D size detection: Sort out different width or length notes
• Easy Software Update through RS232 port

 Specification

• Feed system:Roller Friction System
• Hopper capacity&Stacker capacity:400 sheets & 200 sheets
• Size of countable banknote:50*90--110*189(mm)
• Thickness of countable banknote:0.075--0.15(mm)
• Counting speed(3 levels):750/1000/1500 notes/min
• Power:AC100--240V,50--60Hz,50W
• Dimension & Net weight:272mm*235mm*239mm & 5.3kg
• Payment terms: TT, Western Union
• Packing:2 units/CTN,35*35*66cm/CTN,14kg/CTN

Detailed Models

External Connections for the Counter(Printer&Display):

 FAQ

What is the delivery time?

We will arrange the production as soon as possible after we receive the payment. As it is generally the case, it will take about 2 to 3 weeks to prepare the machines. But sometimes we have to do some adjustment according to the production plan of the manufacture department, so it may take more than 3 weeks.

What is the warranty period?

1-year guarantee/Warranty, Life-long Maintenance. During the warranty period, you can change the parts free of charge if the parts broken under the normal use condition and the maintenance/repair is also free of charge.

And you can turn to us for help to solve any problems about the counters within or even after 1-year warranty period.

Can I have some discount?

Different price for different order quantity, the more you order, the better price you can get.

How to update the machine?

If new version of banknotes is issued, you can use sampling box to capture the images of new banknotes and email us. Our technicians will develop the software for you to update the machines. It is free of charge.
