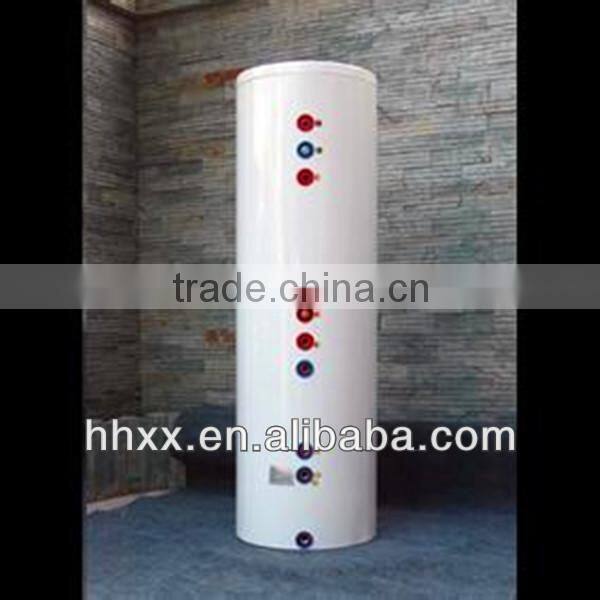

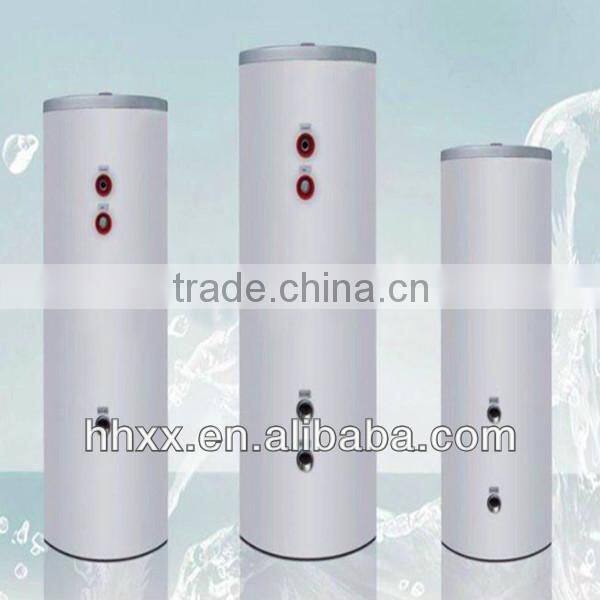

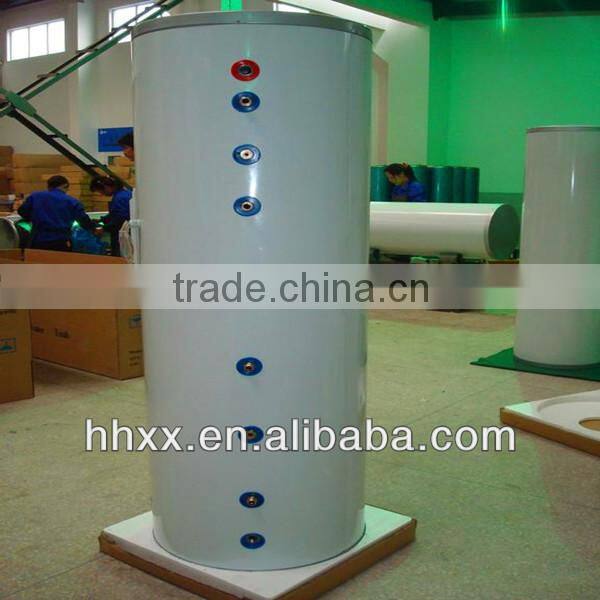

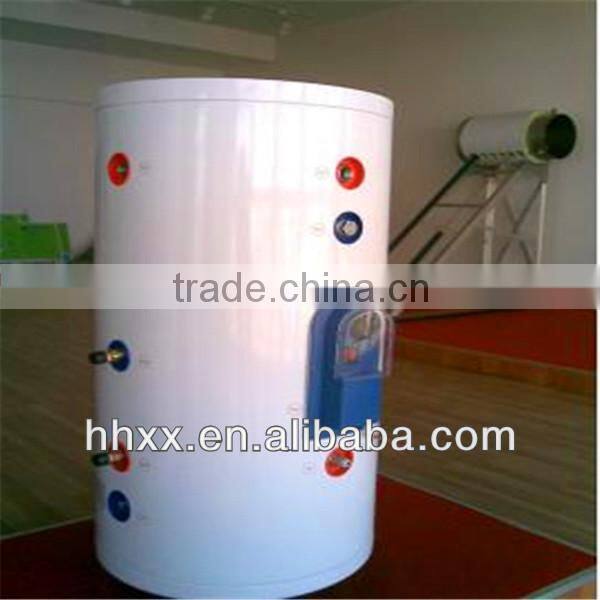

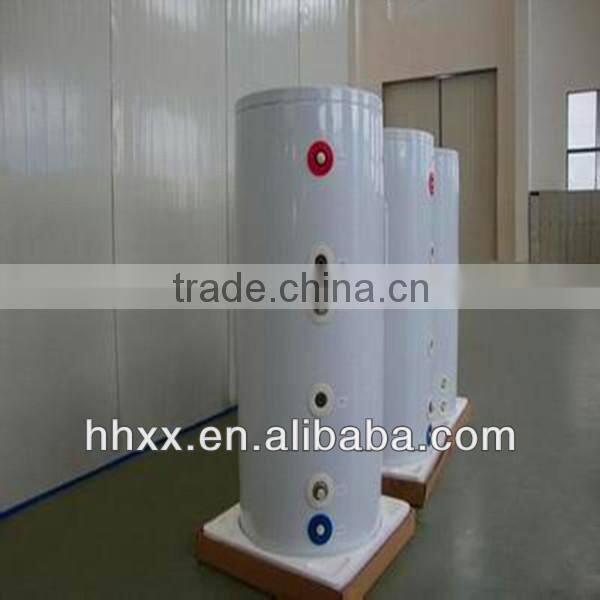

Heat Exchange Double Coils Pressurized Water Tank

FOB Price

US$ 150 - 500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Pressurized
Circulation Type	Indirect / Closed Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Split	Installation	Freestanding
Housing Material	Other, galvanized steel	Certification	CE, Other, CE, SOLAR KEYMARK, ISO, SRCC, CCC
Capacity	300	Place of Origin	Zhejiang, China
Brand Name	BRIAN SOLAR/OEM	Model Number	ST3085

heat exchange double coils pressurized water tank

solar water tank

Outer tank : galvanized steel

Inner tank : SUS 304-2B food grade stainless steel

Insulation layer : High density polyurethane foam, heat preservation 90 hours

HEAT EXCHANGER

Material: Copper coil

Exchanger numbers: Singel, Double in optional

COMPONENTS

Each tank equip with a Electric heater, a Magnesium bar, a P/T valve, a Pressure release valve and Electric control box.

solar water tank working principle:

1. The collector absorbs solar energy and transmits it to the water tank through circulation

2. When the temperature of the collector reaches the set value, the controller starts the circulation

pump automatically

3. The circulation pump makes heat-conducting liquid circulate automatically

4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.

5. When the temperature difference between solar collector and tank doesn't reach the set value, the

circulation pump will be shut automatically

6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start

to work automatically
