JRHT-G006 audio mp3 buletooth player module

bluetooth decoder board

Quick Details :

  support USB and SD card;
support USB and SD card;
Support MP3, WMA format decoding
Support bluetooth stereo play;
With IR remote control
With the LINE input
With LCD display, lyrics synchronous display;
Support FM radio
Support 5v/12v voltage

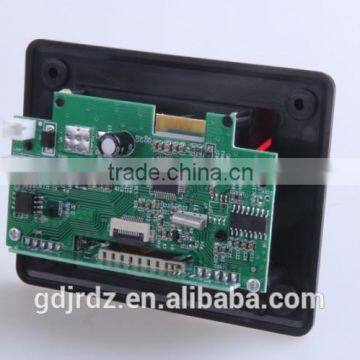

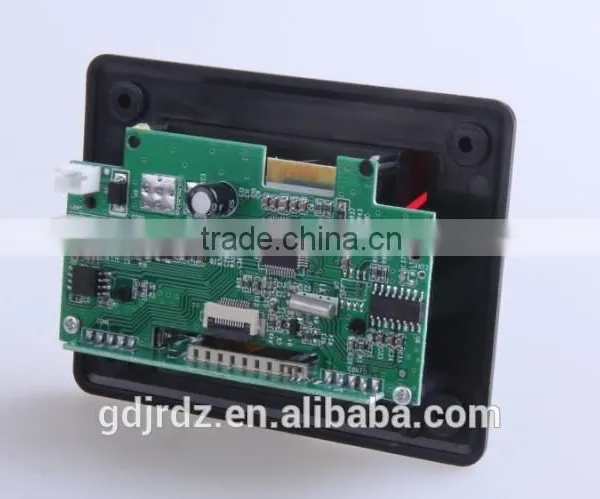

PCB size:73.7*42mm

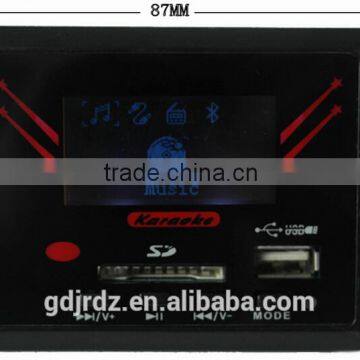

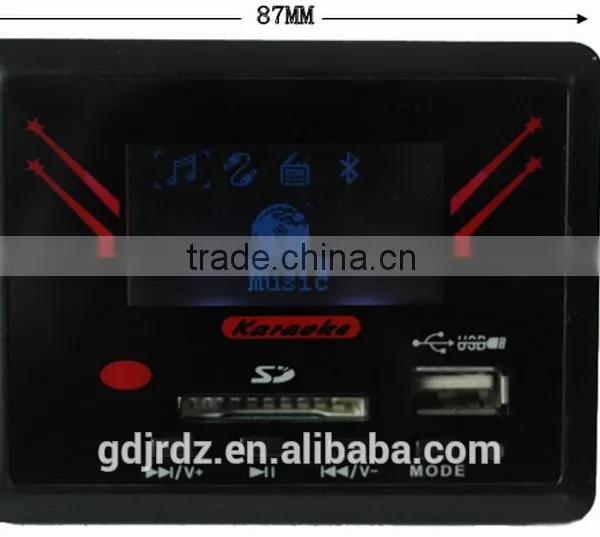

Panel size:87*68mm

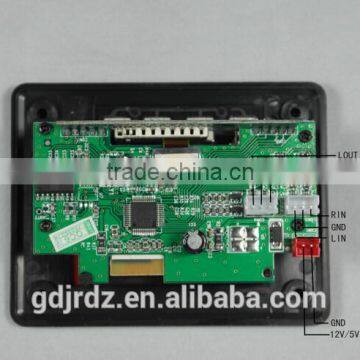

DC Input:5V/12V optional
Audio output:stereo

1, Functions instruction

Features:

1.Support EQ, single cycle, random choice

2.Support to switch external signals directly

3.Support IR remote control in 8 meter

4.Support USB&SD card switchover

5.Support MP3/WMA format

2, Mainboard keys operation instruction

S1: (PLAY/PAUSE/RANDOM) Short press for play or pause circularly.

Long press for on/off random play function.

S2: (PREV/VOL-) Short press for LAST, long press for VOL-.

S3: (NEXT/VOL+) Short press for NEXT, long press for VOL+.

detail  picture
