Home > Products > Pre-heated Copper Coil Solar Water Heater > Vacuum Tube Pre-heated Pressurizied Solar Water Heater

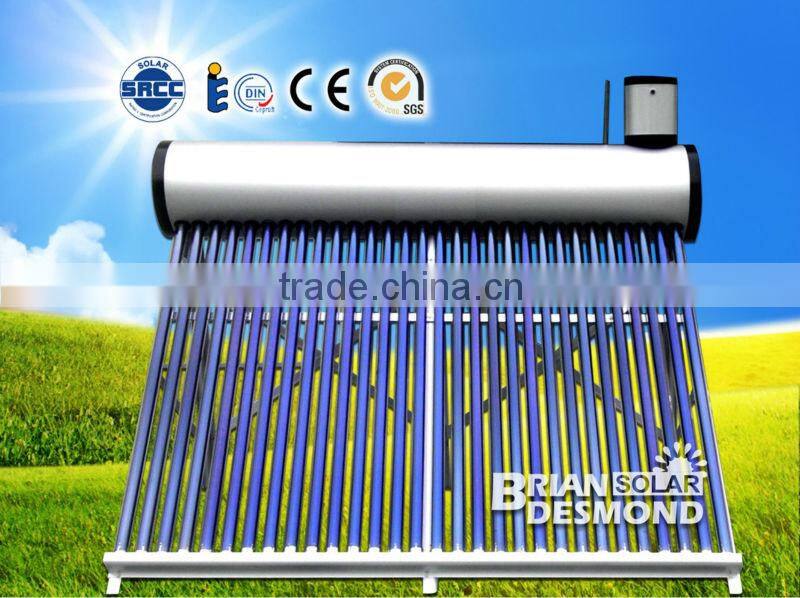

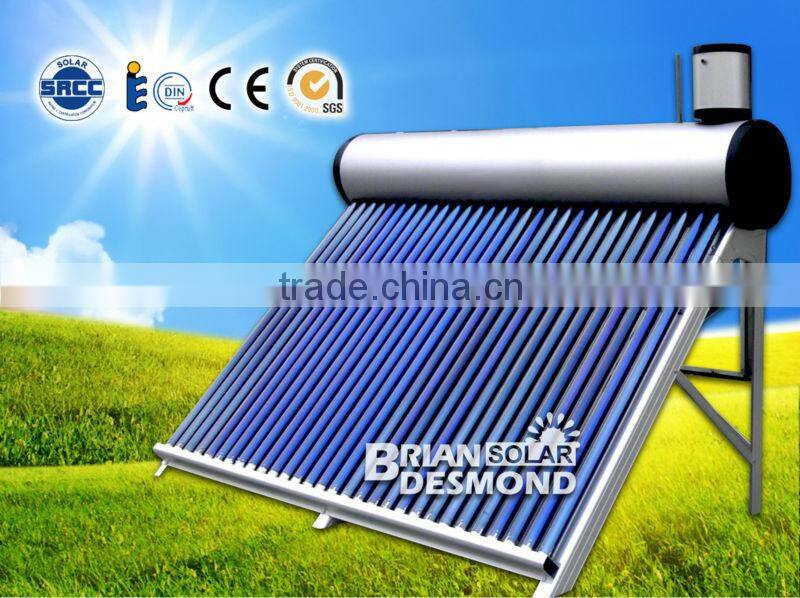

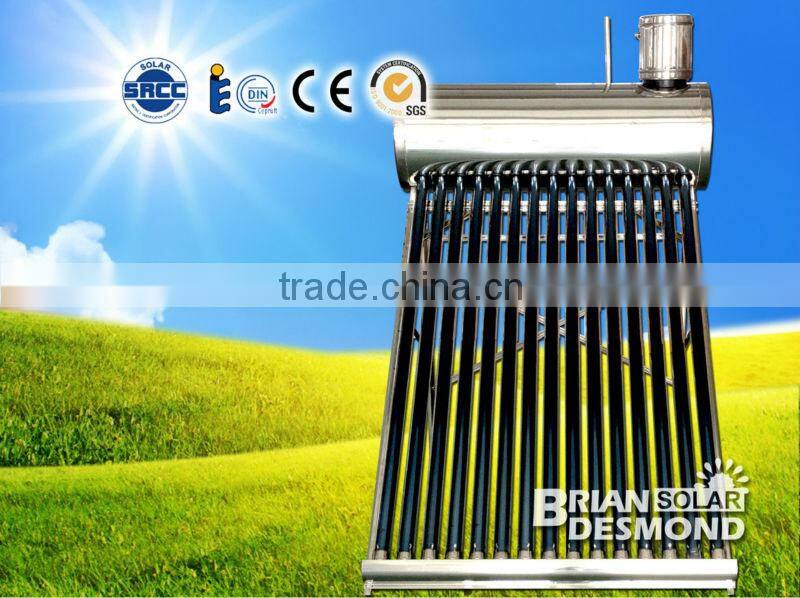

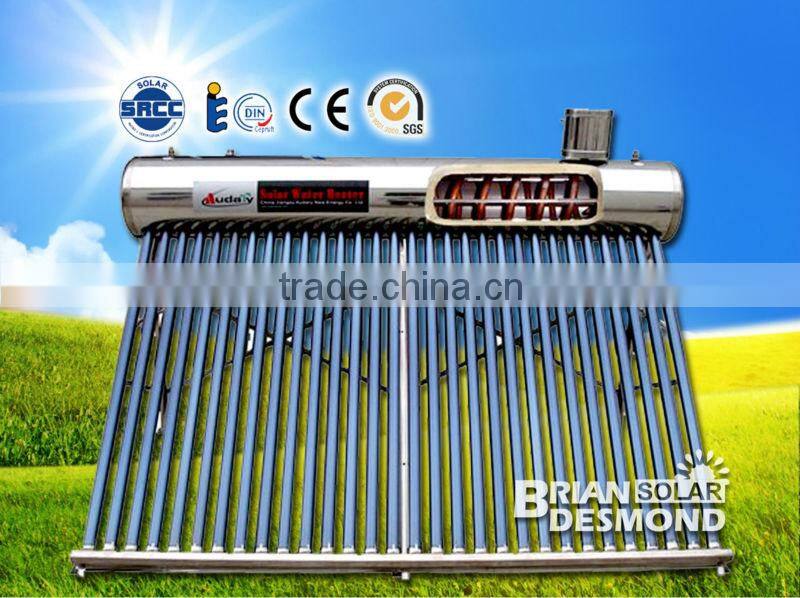

Vacuum Tube Pre-heated Pressurizied Solar Water Heater
US$ 80 - 380
/ Set
1 Set(Min. Order)
- SHANG HAI / NING BO
- Credit Card
You May Like
Product Details
| Type | Evacuated Tube | Pressure | Pressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Direct-Plug | Installation | Other, Freestanding, flat roof / incline roof ( 20°-45° ). | |
| Housing Material | Other, Stainless Steel / Galvanized Steel | Certification | CE, Other, CE, ISO,SGS,CCC | |
| Capacity | 200 | Place of Origin | Zhejiang, China | |
| Brand Name | OEM / DESMOND | Model Number | QDKM-CP037 |
Product Description
Vacuum Tube Pre-heated Pressurizied Solar Water Heater
(China Best Gold Suppier/Manufacturer)
Descriptions:
1) Inner tank: 0.4MM~0.5MM food grade stainless steel304, Outer tank: 0.4mm color steel /stainless steel 304-2B
2) Bracket: stainless steel / galvanized steel
3) Insulation: 55mm polyurethane,heat preservation 72hours/3days
4) Capacity: From 100L To 500L

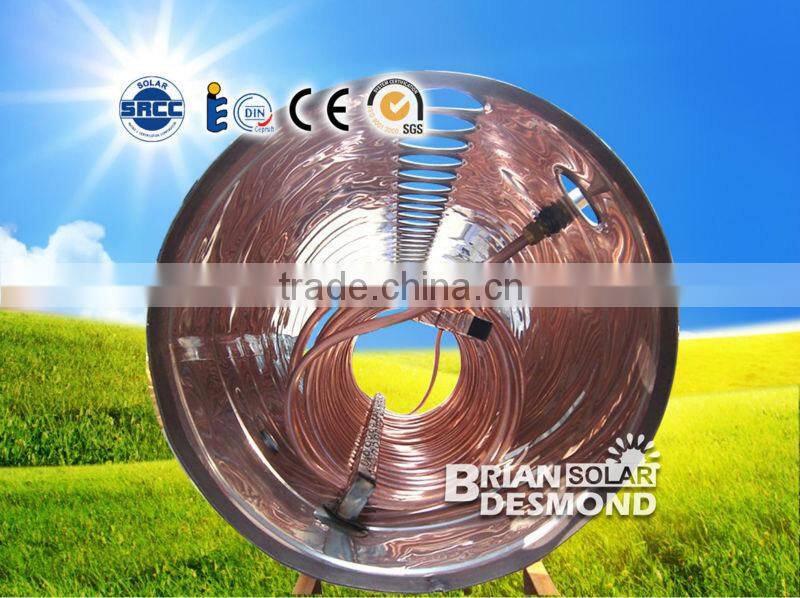

5) Copper coil for rapid heat transfer,high efficiency.

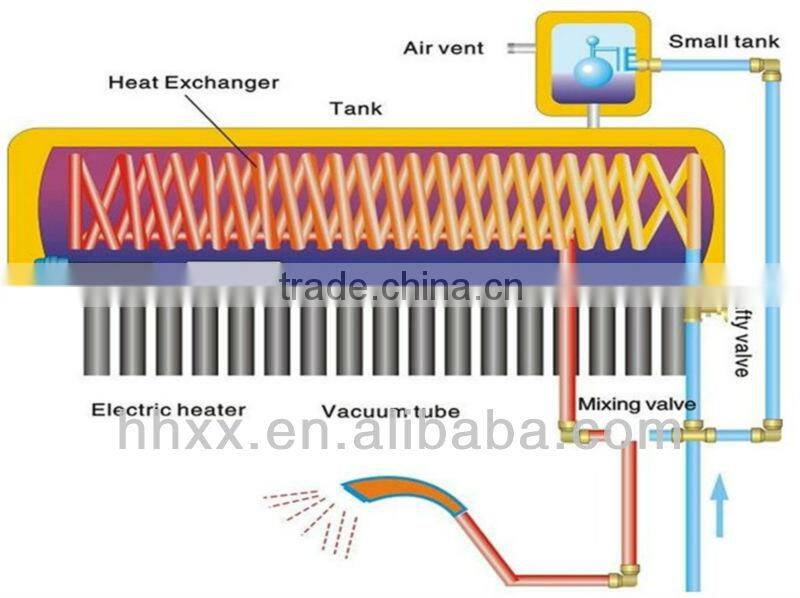

Working principle:
the copper coil in installed inside the water tank as the heat exchanger. When the cold water flows into the copper coil, it absorbs the heat of the water in the tank via the copper coil.
| Product Model | Tubes Qty. | Tank (L) | Absorbing Area (m 2 ) | Weight (KGS) | Dimension (L×W×H) | Qty. per 20FT/40FT/40HQ |
| ODKM-CP-1800/58-18 | 15 | 150L | 1.37 | 93 | 1830*1690*1600 | 35 / 70 / 85 |
| ODKM-CP-1800/58-20 | 16 | 160L | 1.52 | 103 | 1830*1850*1600 | 32 / 64 / 78 |
| ODKM-CP-1800/58-24 | 18 | 180L | 1.83 | 125 | 1830*2170*1600 | 27 / 55 / 67 |
| ODKM-CP-1800/58-30 | 20 | 200L | 2.29 | 156 | 1830*2650*1600 | 23 / 46 / 55 |
| ODKM-CP-1800/58-18 | 22 | 220L | 1.37 | 98 | 1830*1690*1630 | 34 / 69 / 83 |
| ODKM-CP-1800/58-20 | 24 | 240L | 1.52 | 109 | 1830*1850*1630 | 31 / 63 / 76 |
| ODKM-CP-1800/58-24 | 25 | 250L | 1.83 | 132 | 1830*2170*1630 | 26 / 54 / 65 |
| ODKM-CP-1800/58-30 | 30 | 300L | 2.29 | 164 | 1830*2650*1630 | 22 / 45 / 53 |
