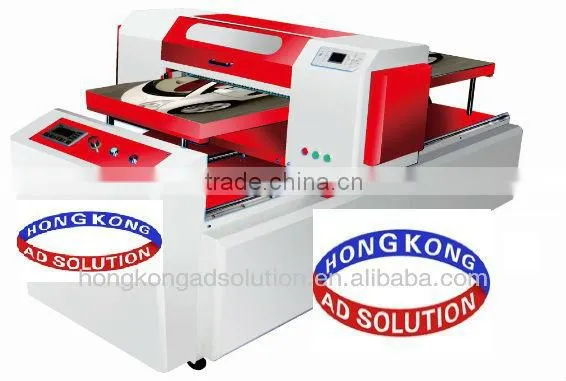

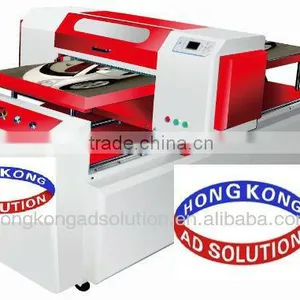

Help CenterUV Flatbed Printer on LED Lamps 610*1700 (A1) Print Size
Related Products
-
UV Flatbed Printer on LED Lamps 420*900 (A2) Print SizeNegotiableMOQ: 1 Unit -
Sprinter UV Flatbed Printer 2*3m Print Size F2030NegotiableMOQ: 1 Unit
-
UV Flatbed Printer Sprinter F2512 on 8 Konica Minolta 1024 Heads 2.5m*1.2m WideNegotiableMOQ: 1 Unit
-
UV Flatbed Printer Sprinter F2512 on 8 Konica 512 HeadsNegotiableMOQ: 1 Unit
-
Hybrid UV Flatbed + Roll to Roll Printer Sprinter F2512 on 8 Spectra Polaris Heads 2.5m*1.2m With Roll to RollNegotiableMOQ: 1 Unit
Specifications
Print size:610x1700mmPrinting thickness:150mm
Colors: 6 Colors+2Colors(PK;C;M;Y;LK;LC;LM;LLK)
Precision 2880DPIX1440DPI
Machine mode(A1) | UV6118 |
Print size(width-length) | 610x1700mm(Arbitrary length can be produced according to customer requirements) |
Printing thickness | 150mm(You can customize and thickness) |
Ink system | 6 Colors+2Colors(PK;C;M;Y;LK;LC;LM;LLK) |
Printing precision | 2880DPIX1440DPI |
Nozzle configuration | 180nozzle x 8colors,using intelligent transform ink technology |
Ink drop size | Minimum 3.5pl ink |
Print speed | Average speed:7.15minutes A1 size;maximum speed:1.1 minutes A1 size |
Power requirements | 110-220V 50-60HZ work500w,standby 5w |
Work environment | Working temperature:15-35°C,Operating humidity:20-80%,Storage humidity:5-85% |
Curable menthod | LED light curing,max.20000hours curing life time |
Operating plat form | Window2000/XP.XP/x 64,Vista,Vistax64,Mac OSX |
Interface printing | USB2.01.1 interface and 100 Base-T Ethernet interface |
Nozzle cleaning methods | Auotmatic cleaning |
Nozzle protection methods | Infrared automatic protection system |
Print object height detection | Intelligent induction,dual detection system |
Wight of equipment | 200KG/250KG |
Device dimensions(length*width*height) | 2500*1900*1250mm |
Packing size(length*width*height) | 2700*2100*1500mm |
