1mm Building Material Double UV Coating Solid Polycarbonate Sheet

Name: 1mm Building Material Double UV Coating Solid Polycarbonate Sheet
Brand: Desmond / OEM
SKU: 106454375
Availability: InStock

US$ 2 - 5 MOQ: 50 Square Meters

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Desmond / OEM

Model Number:

PC-0050

Haining Brian Desmond Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Desmond / OEM

Model Number PC-0050

1mm Building material double UV Coating solid Polycarbonate Sheet

Product Description

1. Product Description

Multi-wall Sheet Product Data
Walls	Structure	Thickness (mm)	Weight (kg/m²)	Rib distance (mm)	U-value (W/m²K)	LT (%) clear	LT (%) opal white
2-wall	R-structure	4	0.85	6	3.96	78	25~55%
		4.5	1.0	6	3.86	78
		5	1.1	6	3.72	77
		6	1.3	6	3.56	77	20~50%
		8	1.5	10	3.26	76
		10	1.7	10	3.02	73
3-wall	R-structure	6	1.4	12	3.22	74	25~55%
		8	1.6	12	2.92	72
		10	1.8	12	2.68	72
		12	2	12	2.60	71	25~45%
		12	2.1	16	2.56	72
		14	2.4	16	2.42	69
		16	2.7	16	2.27	68
4-wall	R-structure	8	1.8	12	2.56	71	25~45%
		10	2.1	12	2.39	70
		12	2.3	12	2.32	70
		14	2.5	12	2.11	69
		16	2.8	12	2.03	68
		18	3.1	12	1.88	66	20~40%
		20	3.3	12	1.69	63	20~40%
5-wall	X-structure	10	2	16	2.62	68	25~45%
		12	2.1	16	2.60	66
		14	2.3	16	2.56	65
		16	2.7	16	2.10	65
4-wall	H-structure	8	2	5	2.42	58	20~40%
		10	2.2	5	2.16	57
		12	2.5	5	1.98	56
7-wall	X-structure	25	3.6	20	1.41	57	20~38%
		30	3.8	20	1.38	53	20~35%
		32	4	20	1.32	52
		35	4.5	20	1.26	52
		40	5	20	1.19	50

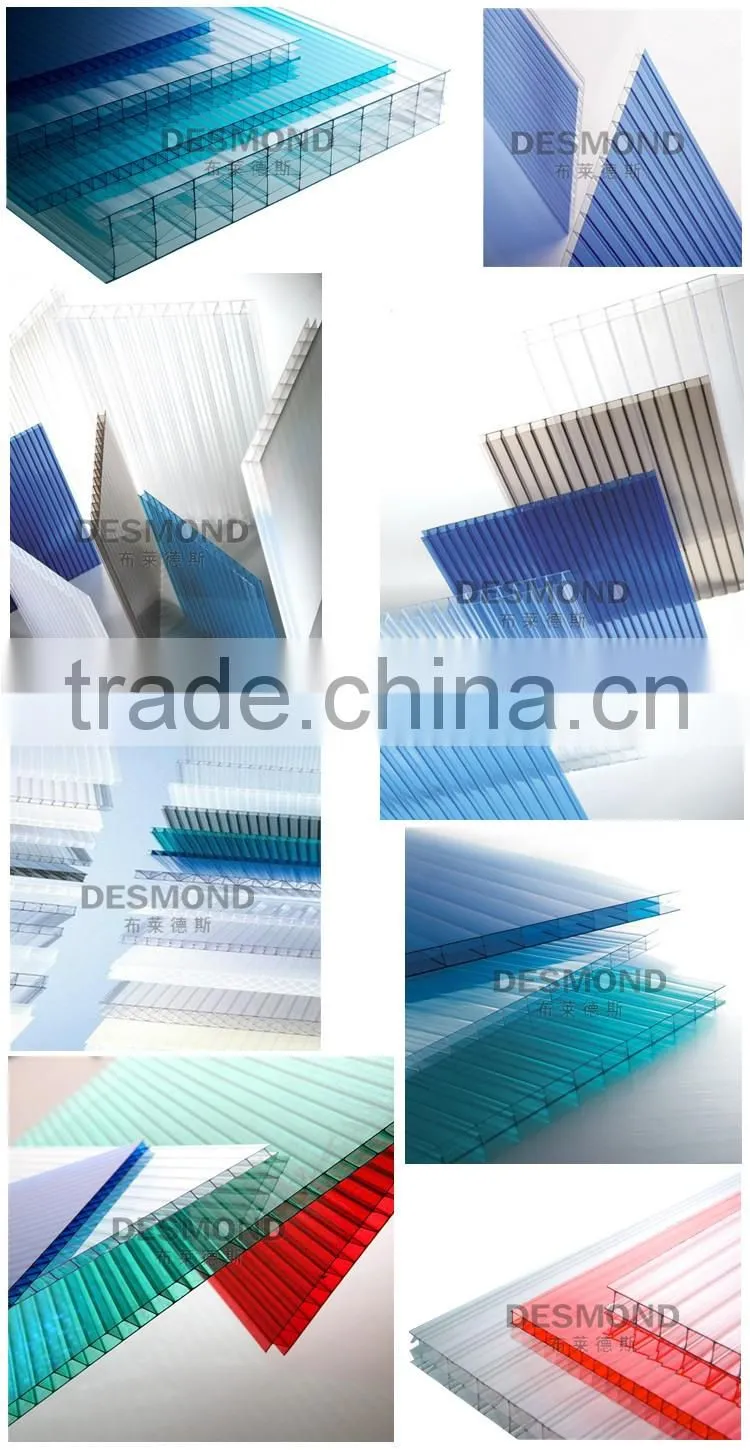

Color

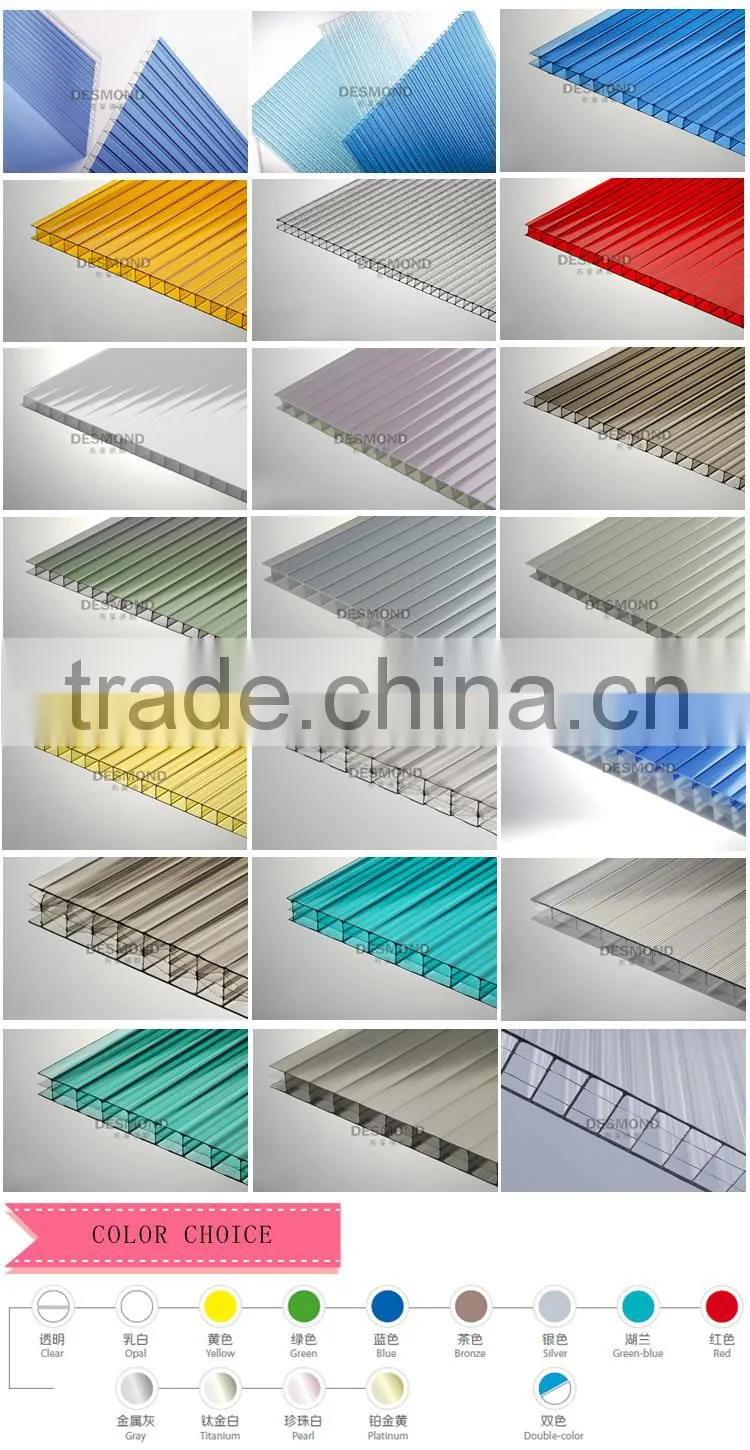

2. Color Choice

Functions

3. Functions

Quotation: To be sent in excel files with product pictures as soon as you inquiry
Package: supplying various packing design with customers brand and idea.
Delivery: within 20-25 days
Shipment: Pre-shipment inspection is available. The lowest sea freight and fastest vessel will be selected

Please send the feedback of goods within 90 days after shipment, it is helpful for us to improve the design, quality,package and service.
The goods with quality defect will be replaced within 60 days after shipment.
Five years quality warranty.

Since preparing material to the finished products, every steps are controlled by our QC and sales.
While order are under producing, we will select some samples for testing.
After finished producing, every pieces will be checked one by one by QC.
Before loading, our worker will check the products appearance and package.

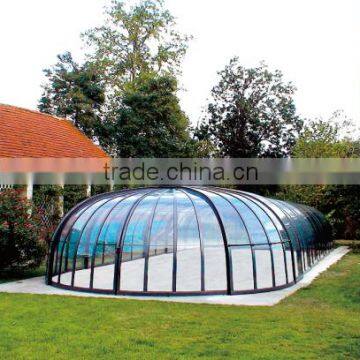

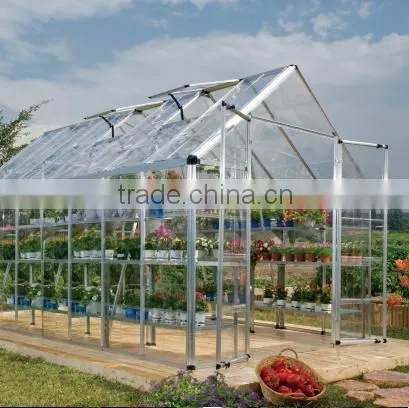

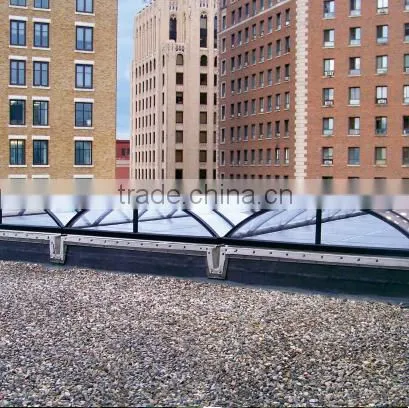

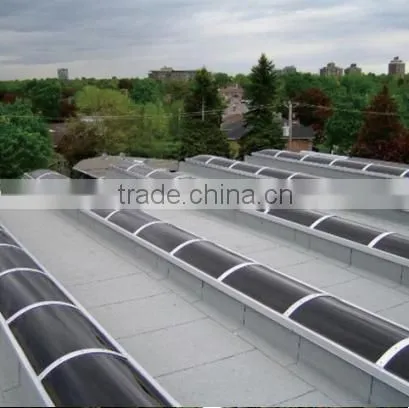

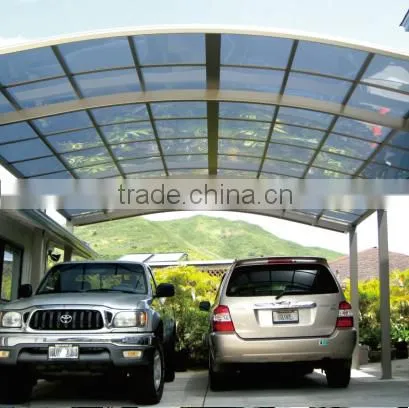

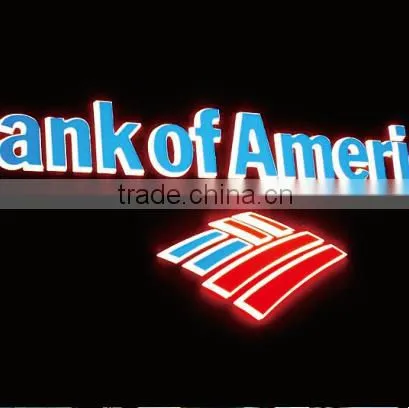

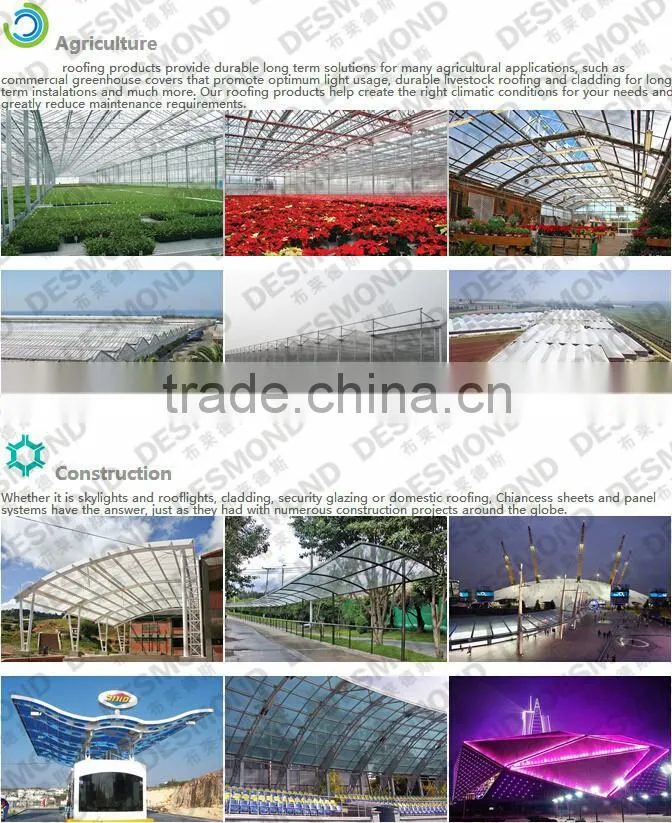

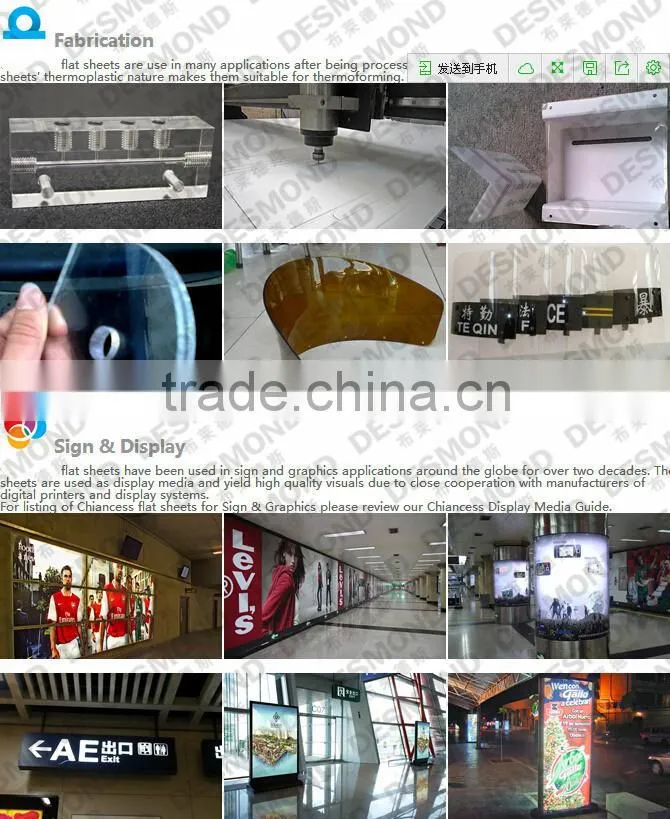

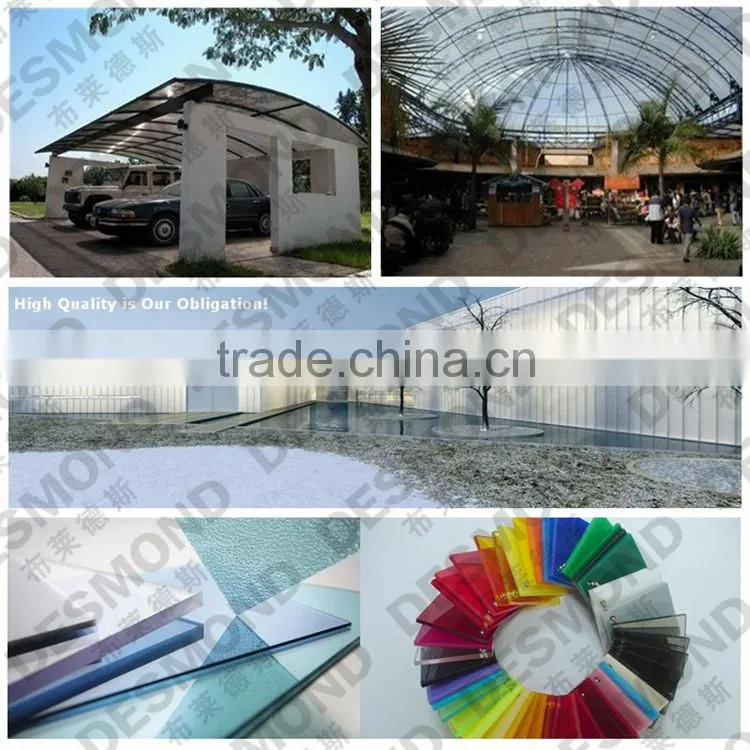

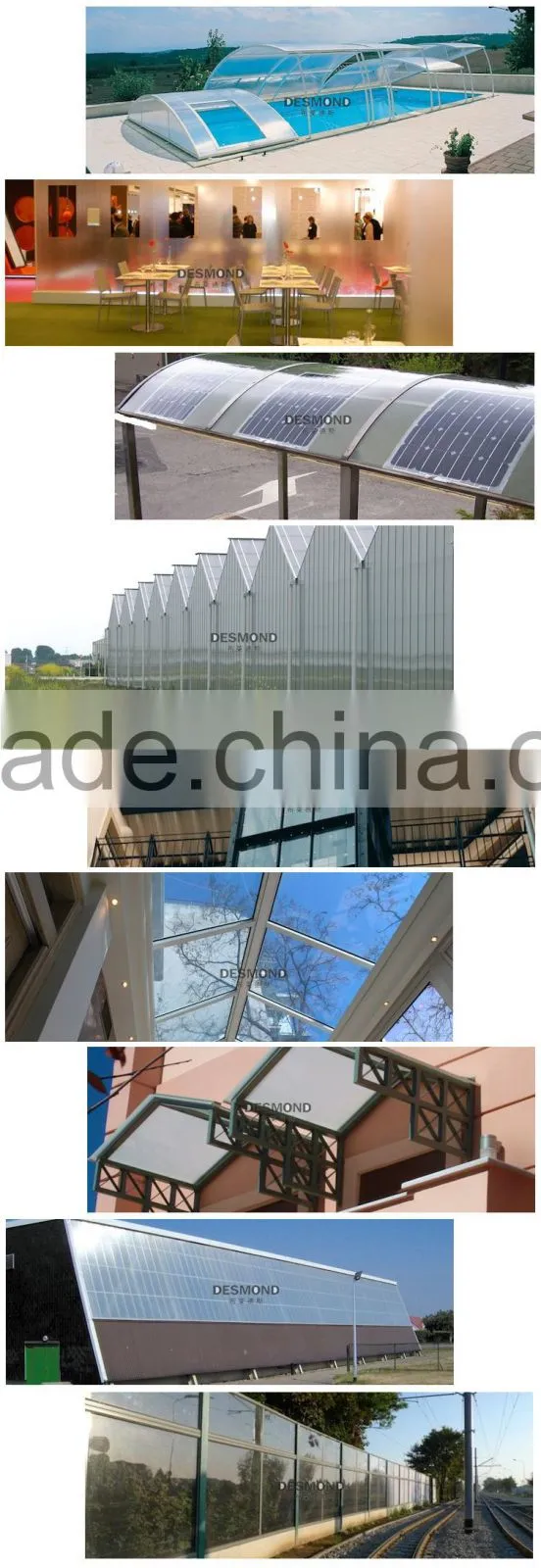

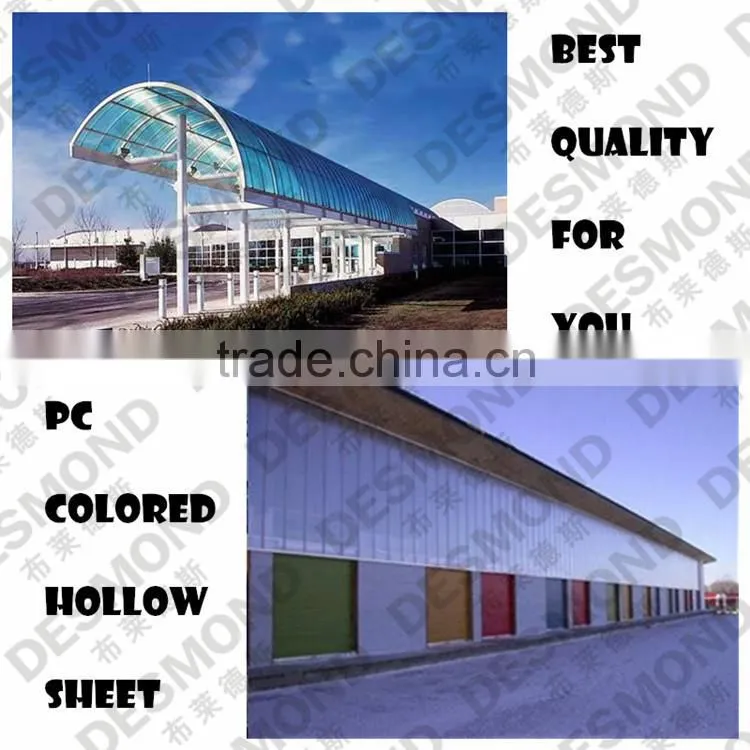

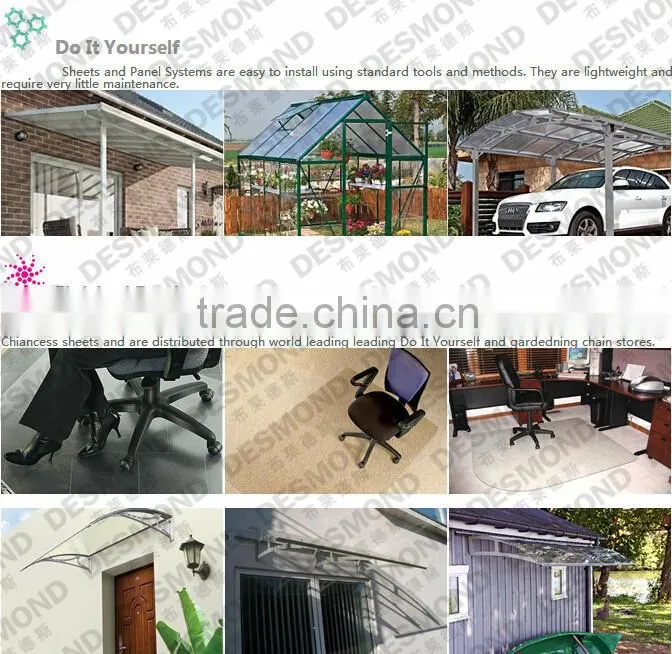

Product Uses

6. Product Uses

Product Overviews

7. Product Overviews

Business Card

8. Business Card
