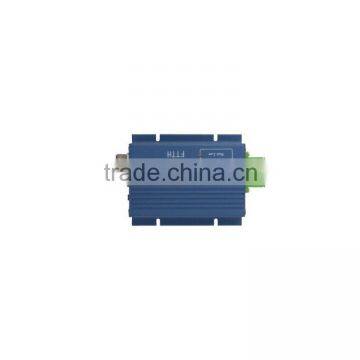

Free sample CATV FTTH WDM AGC PON Optical fiber micro Receiver
I.WDM FTTH Optical Receiver description
This WDM optical receiver is specifically designed for CATV HFC network with FTTH structure. Its main feature is low power consumption, AGC optical constant level output, small Volume and high reliability. Adopting aluminum alloy shell, with optical control AGC circuit built in, compact structure and external modular power supply make the installation and debugging very conveniently. It is an ideal product to build FTTH CATV network.
II. Product feature
1. Low noise, high power, low power consumption and high cost performance
2. Excellent flatness in the bandwidth
3. Output attenuation control
4. With CWDM built-in, suitable for single fiber three wave system, RFTV working wavelength 1550nm and pass through wavelength 1310/1490nm. Can easily connect the ONU for EPON and GPON.
III. Technical parameter
Item |
Unit |
Paramter |
Supplement |
CATV working wavelength |
|
1540~1560 |
|
Pass wavelength |
nm |
1310,1490 |
|
Receiving power |
(dBm) |
+2~-10 |
Analog TV |
+2~-18 |
Digital TV |
||
Return loss |
(dB) |
≥45 |
|
Work bandwidth |
MHz |
47~862/1000 |
|
|
Flatness (dB) |
dB |
±0.75 |
|
RF output level |
(dBuv) |
≥80 |
Single output Pin:-9~0dBm Pin:-9~0dBm |
≥76 |
Dual outputs Pin:-9~0dBm |
||
AGC control range |
(dBm) |
0~-9 |
|
|
AGC character (dB) |
dB |
≤±0.5 |
Pin:-9~+0dBm |
Output level control |
(dB) |
0-20 |
MGC |
Output return loss |
(dB) |
≥14 |
47-862MHz |
Output impedance |
(Ω) |
75 |
|
Number of output port |
ea |
single output / dual outputs |
|
|
CNR (dB) |
dB |
≥51 |
Pin=-2dBm |
|
CTB (dB) |
dB |
≥61 |
Pin=-2dBm |
|
CSO (dB) |
dB |
≥60 |
Pin=-2dBm |
|
Power supply (V) |
V |
+8VDC |
|
Power consume |
W |
≤3 |
+8VDC,250mA |
Work temperature |
(℃) |
-20~+60 |
|
Size |
mm |
79*98*25.5 |
(W)*(D)*(H) |

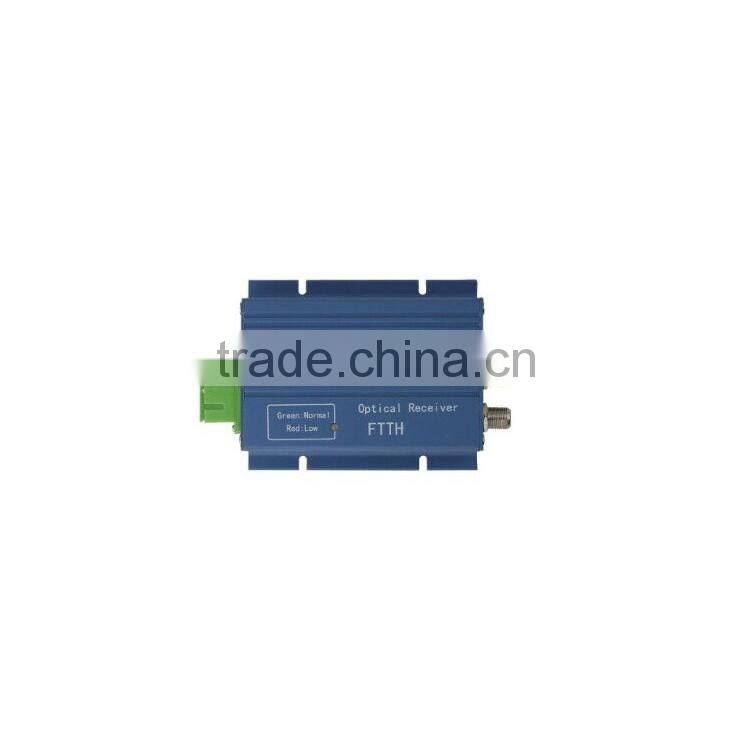

WDM FTTH Optical Receiver
Packaging Details:15pieces/carton, Optical Fiber Product can be OEM/ODM
We can design some special packaging according to customer's requirement.
Delivery Details:3~5 days after receipt of deposit for little orders.
Before Sale Service:professional offer detailedproducts test report related specifications
Contract Manufacturing: OEM Service Offered design service offered buyer Label Offered
Shanghai Yogel Communication Equipment Co.,Ltd. welcome to visit our factory!
The core of Yogel is honesty and efficiency.pls feel free to contact us.
Your inquiry is expected! Warmly welcom you to inquiry us for this product.
1. Can I get some samples for optic fiber product?
Yes, Sample order for WDM FTTH Optical Receiver is available for quality check and market test .But you have to pay the express cost.
2. What’s delivery time ?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What’s your payment terms ?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What’s your warranty terms ?
We offer 12 months warranty time .
5. Do you have the products in stock ?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. How does your factory do the quality control ?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping.
7.How to contact us?
If you have any questions or requirements, please send your Enquiry Details in the Below, Click "Send" Now! Or "the onlineTM".
