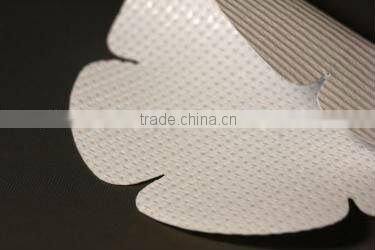

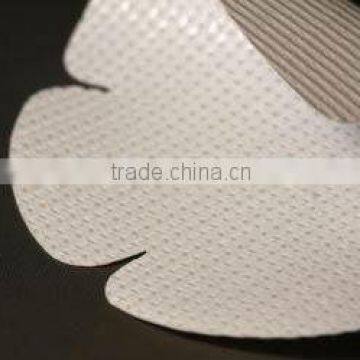

PVC Coated Mesh Without Liner 270gsm 500DX1000D 18X12

Negotiable MOQ: 5000 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

PVC coated mesh without liner 270gsm 500DX1000D 18X12

HongKong AD Solution Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OEM

Model Number PVC coated mesh without liner 270gsm 500DX1000D 18X12

Specifications

PVC coated mesh without liner 270gsm 500DX1000D 18X12

COATED MESH WITHOUT LINER 270GSM

Item	Unit	Value		Test Method
Base Fabric	Denier	500DX1000D		(High tenacity yarn) 100%PES
Construction	Weaving/inch	18X12		/
Weight of fabric	Gsm/m2	270±10		DIN53352 BS3424 Method5B
Weight of PVC	Gsm/m2	/		DIN53352 BS3424 Method5B
Total weight	Gsm/m2	270±20		DIN53352 BS3424 Method5A
Width	cm	Up to 5.00		/
Tensile Strength	N/5cm	Warp	850	DIN53352 BS3424
		Weft	1000
Tearing Strength	N	Warp	190	DIN53356 BS3424
		Weft	200
Adhesion	N/5CM	/		DIN53357 BS3425 Method9B
Temperature Resistance	°C	-20~70		DIN53357 BS3425 Method10
Lacquering	None
Flammability	We can reach: B1, B2, NFPA701, DIN75200 etc.
LOW CADMIUM & HEAVY METALS	We can reach: EN71-3
Conclusions and Announcements	Declaration: Please choose products suitably according to relative provisions or industrial standards. The company bears the responsibility for the specified technical and performance data on this page only. The company is not responsible for any other liability. (The technical data on this page is calculated on average, and ±5% tolerance is acceptable)
