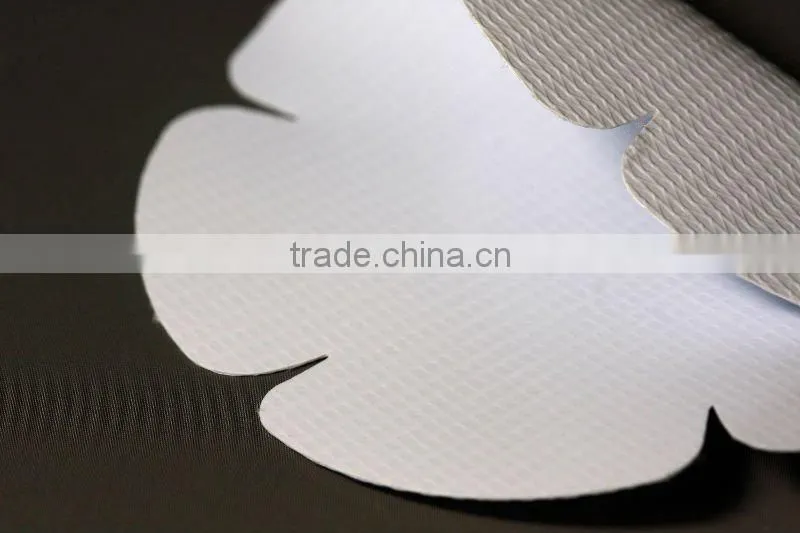

Laminated Frontlit 440gsm 300D500D 1218

Negotiable MOQ: 5000 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

Laminated frontlit 440gsm 9*9

HongKong AD Solution Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OEM

Model Number Laminated frontlit 440gsm 9*9

Specifications

Laminated frontlit 300D*500D 12*18 440gsm

Item	Unit	Value		Test Method
Base Fabric	Denier	300DX500D		(Domestic yarn) 100%PES
Construction	Weaving/inch	18x12		/
Weight of fabric	Gsm/m2	55±5		DIN53352 BS3424 Method5B
Weight of PVC	Gsm/m2	385±5		DIN53352 BS3424 Method5B
Total weight	Gsm/m2	440±10		DIN53352 BS3424 Method5A
Thickness	mm	0.34±0.02		DIN EN ISO 2286-3
Width	cm	102---320		/
Tensile Strength	N/5cm	Warp	635	DIN53352 BS3424
		Weft	450
Tearing Strength	N	Warp	125	DIN53356 BS3424
		Weft	107
Adhesion	N/5CM	60		DIN53357 BS3425 Method9B
Temperature Resistance	°C	-20~70		DIN53357 BS3425 Method10
Lacquering	None
Flammability	We can reach: B2, DIN75200
LOW CADMIUM & HEAVY METALS	We can reach: EN71-3
Conclusions and Announcements	Declaration: Please choose products suitably according to relative provisions or industrial standards. The company bears the responsibility for the specified technical and performance data on this page only. The company is not responsible for any other liability. (The technical data on this page is calculated on average, and ±5% tolerance is acceptable) Remarks : ‘G’represents Glossy surface, “M” represents Matte surface, Glossy or Matte could be made as requirements
