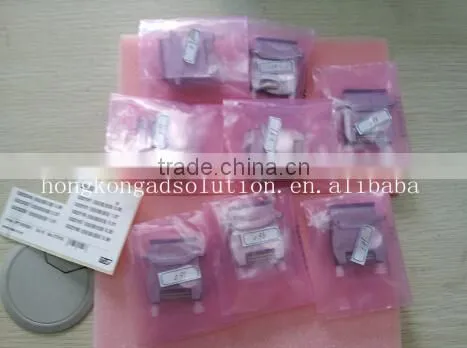

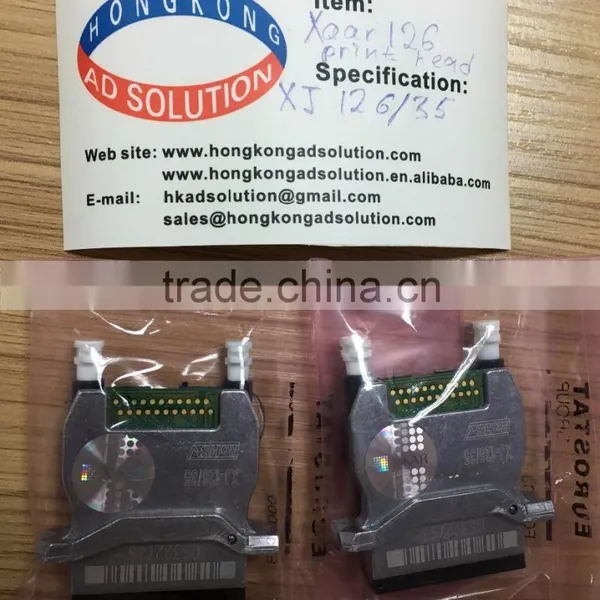

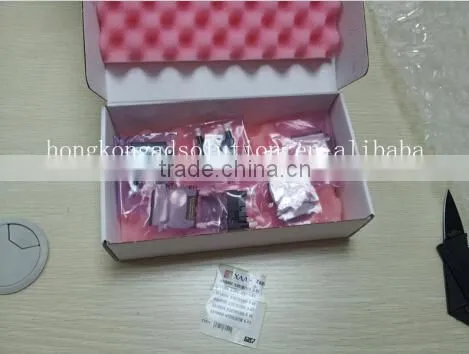

Help CenterXaar 126 35 Pcl Print Head XJ126/35
Related Products
Product Information
Compatible with UV, solvent and oil-based inks, this truly versatile printhead meets diverse customer requirements. The robust and quality-driven 80pl version is ideal for outdoor signs and outer-case printing, while the 50pl unit addresses the requirements of high-quality indoor signs, banner printing and POS collateral.
Unique Features
All-round Performer
- Reliable
- Flexible
- Cost-effective solution.
Maximum Print Quality
- Unique internal surge control mechanism
- Maintains drop size uniformity
- Maintains placement accuracy.
Lightweight
- Light aluminium chassis
- Leads to cost savings and speed advantage.
XAAR126/35 (600) 600DPI speed can reach 6 meters / second ,ink drop size 35PL,ignition frequency is 9KHZ,color identification: silver-gray metallic
Compatable with printers:
Gerber Solara UV2, Rodin 1802 / 1804, Yat Fung Digital Xplorer YF-1232 III / Xplorer YF-8180 III Plus / Xplorer YF-8250 III Plus / Xplorer YF-8320 III
Model Number : Xaar XJ126/35
Active nozzles: 126
Print swathe width: 17.2mm
Nozzle pitch: 137.3um
Nozzle density: 185npi
Drop velocity: 6m/s
Printhead weight: 22g
Dimensions (W*D*H): 45*43*11.8mm
Drop volume: 35pl
Typical firing: 5.2/7.5/9kHZ
More information:
/Goods-for-AD/LEDs/Xaar-126-print-head/
We also supply:
(1).Original print head:
Xaar 128/40W(128/360),Xaar 128/80L(128/200),Xaar 128/80W(128+)
Xaar 126/80PL, Xaar 126/50PL, Xaar 126/35PL
Xaar 382/60PL, Xaar 382/35PL
Xaar 500/80, Xaar 500/40 uv
SPT255/12PL, SPT255 /35PL
SPT510/35PL, SPT510/50PL
SPT1020/35PL,
spectra nova256, spectra galaxy256/30
spectra Polaris PQ15, spectra Polaris PQ35
spectra sl128,, spectra sm128, spectra se128
Konica512/14PL, Konica512/42PL ,
Konica512/35PL
Konica512/14PL uv, Konica512/42PL uv
Konica256/14PL, Konica256/42PL
Konica1024/14PL, Konica1024/42PL
Konica1024/14PL uv, Konica1024/42PL uv
Ricoh gen4, gen5
Toshiba CA3W, Thoshiba CA4W
(2).PCB board:
Main board, printhead board, USB board and ink supply boards for all branded printers.
(3) . Normal spare part:
Ink pump, ink filter capping, damper, ink tube,tube connector, filter, solenoid valve, wiper, encoder strip, encoder sensor, data cable, belt, motor , gear, pulley, cleaning stick, non-dust cloth,ink tank, cutting blade and so on.
You can order this item in our online Aliexpress store:
/store/product/Xaar-126-35-pcl-print-head-for/221450_32608555873.html
/store/product/Xaar-126-35-pcl-print-head-for-Orasign-W-Jet-160-Orasign-W-Jet-180-Orasign/221450_32607810364.html
/store/product/Xaar-126-35-pcl-print-head-for-Yat-Fung-Digital-Xplorer-YF-1232-Xplorer-YF-8180/221450_32607869347.html
/store/product/FREE-SHIPPING-Xaar-126-35-pcl-print-head/221450_32607830109.html
