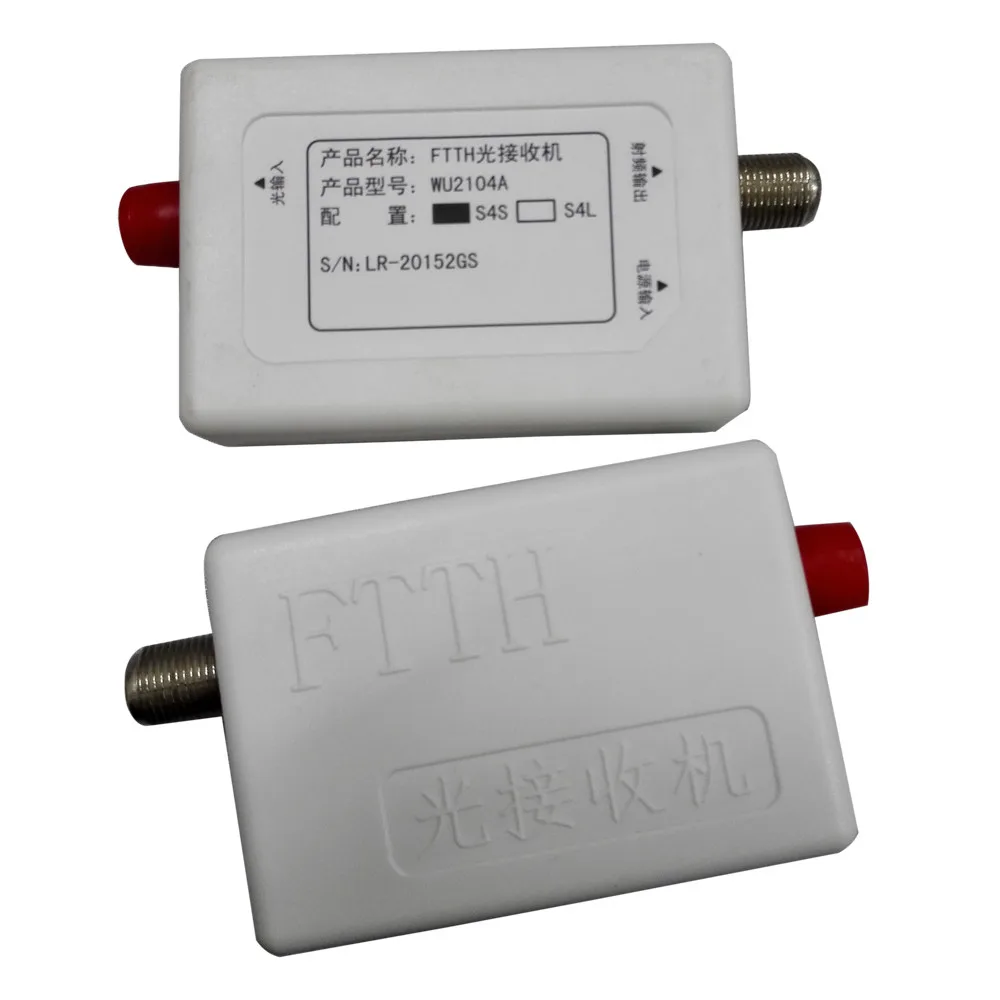

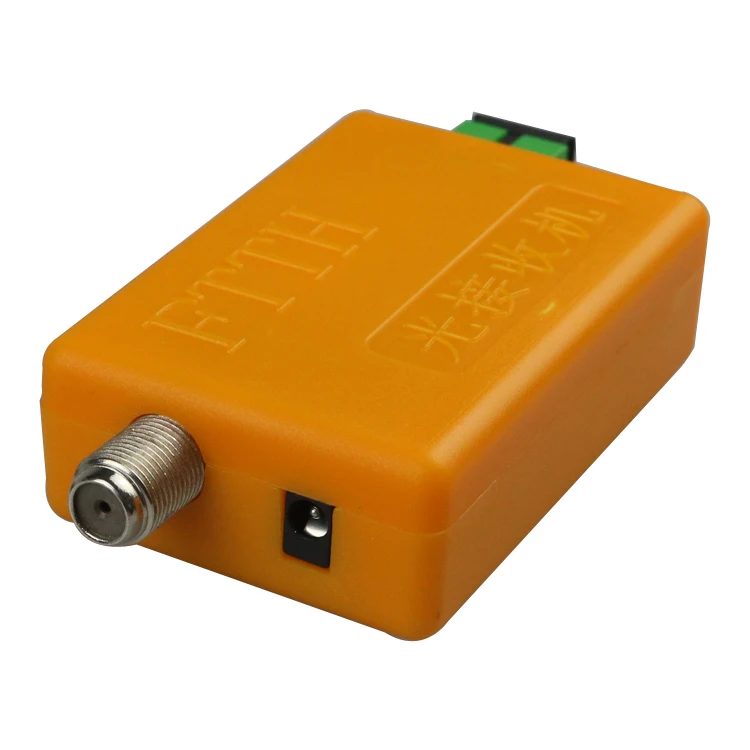

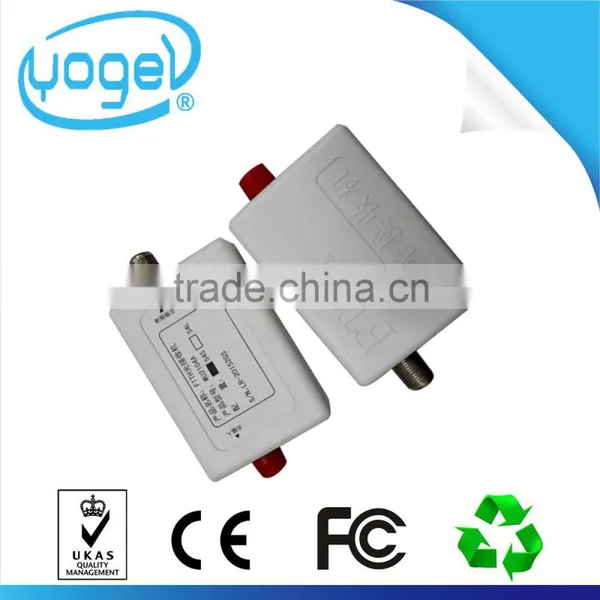

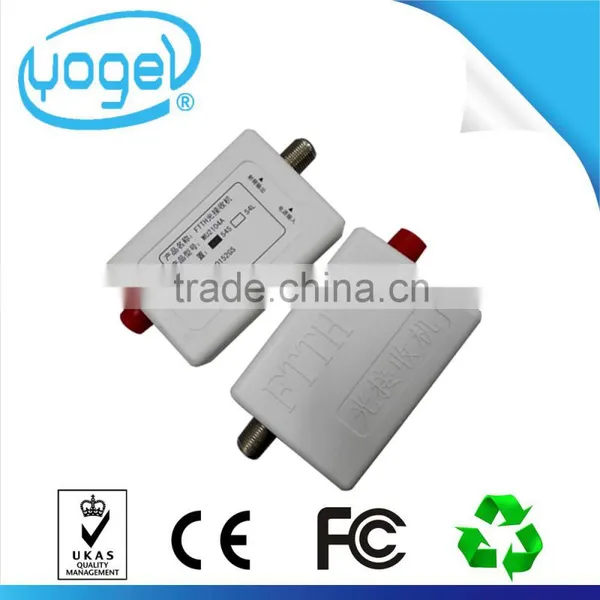

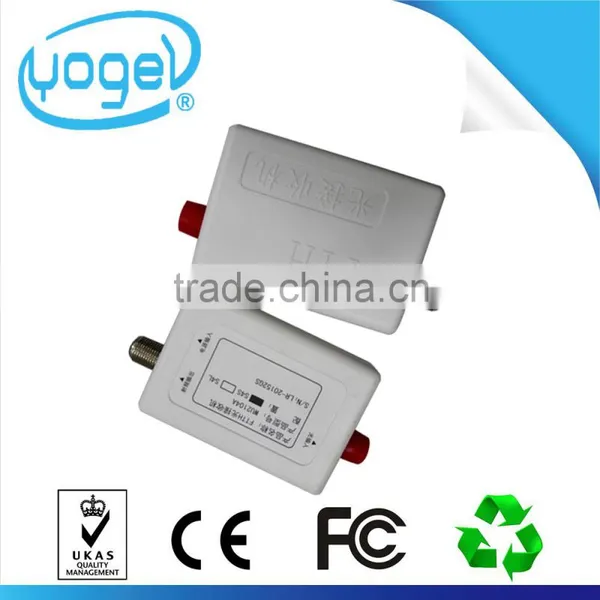

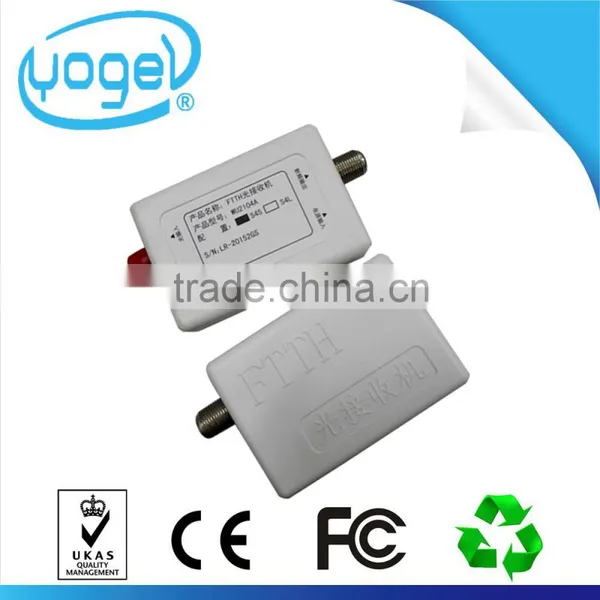

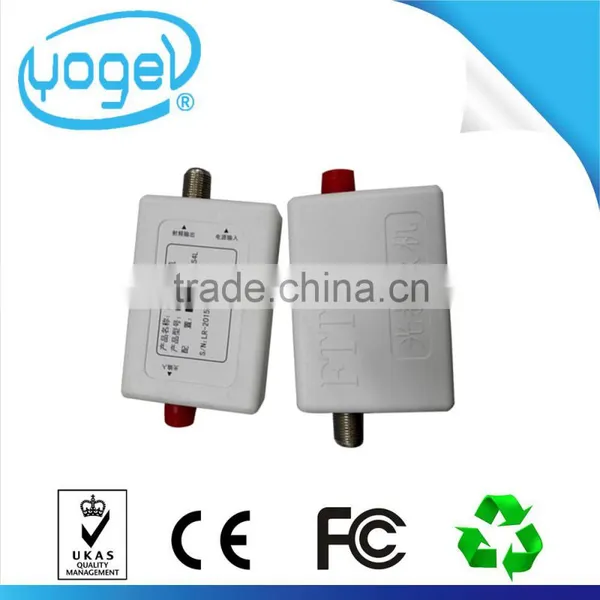

direct price catv ftth fiber optic optical node for optical receiver

general description

optical ftth node is specially designed for FTTB - Fiber to the building network structure.

Low consumption, high output level, small size, compact and reasonable internal circuit structure and excellent performance make it to be the first choice to build CATV FTTB network.

Main used to fiber to building network to simple the network structure, reduce the cost and optimize the signal quality.

Key Features:

1. Adopt low noise high sensitivity PIN Optical detector.

2.AGC control range0~-7dBm, output level unchanged, CTB and CSO unchanged basically.

3.EQ and ATT both use the professional electric control circuit, makes the control more accurate.

4.Work under the control of single-chip microcomputer. All parameters display digitally and easy for operation.

5. Small size and easy to install.

6. Built-in the national standard class network manager responder, support remote network management.

specification

Receiver wavelength : 1100-1600nm

receive power range : -15~2dBm frequency range : 47-1000hz

output voltage level : 75±1 C/N : ＞51dB

power supply : 5V/0.5A DC+12v optional power consumption : ＜1.5VA

working temperature ： -20~+50℃ storage temperature： -35~+70℃ weight : 0.1kg

The main idea of Yogel company is honesty and efficiency.
Our company has been audited and approved ISO9001,CE.

We provide sales and services of patchcords, fast connector, fiber coupler, optical adapters and fiber splice closure.

Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.

We have atteneded the Peking Exhibition, hope to meet you next year.

For more information, please visit Shanghai Yogel Communication Equipment Co., Ltd.

We offer the sincere dedicated service!

Before Sale:
detailed products test report
related specifications

During Cooperation:
OEM Service Offered
Design Service Offered
Buyer Label Offered

After Sale:
Any problems on the product, please contact us

Can I get some samples ?

Yes, Sample order is available for quality check and market test .And you just to pay the express cost.

What's your payment terms ?

We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.

What's the delivery time ?

It usually takes about 3-7 working days .

optional item:

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: simplex/duplex
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
