Help Center100% Resin Material Hollow Polycarbonate Sheet Roof Sheets Price per Sheet
Related Products
-
pc Multi-wall Sheet / pc Hollow Sheet pc SheetUS$ 2.6 - 3.6MOQ: 100 Square Meters -
Polycarbonate Multi-wall Sheet High Quality 10mm pc Sheet Hollow SheetUS$ 2.6 - 3.6MOQ: 100 Square Meters
-
Polycarbonate Multi-wall Sheet / PC Multi-wall Sheet/pc Hollow SheetUS$ 2.6 - 3.6MOQ: 100 Square Meters
-
Desmond Polycarbonate Multi-wall Sheet Top Quality 1mm pc Sheet Hollow SheetUS$ 2.6 - 3.6MOQ: 100 Square Meters
-
Desmond Polycarbonate Multi-wall Sheet pc Hollow Sheet pc Sheet Plastic PanelUS$ 2.6 - 3.6MOQ: 100 Square Meters
UV coated silver sun panel for building material clear hollow polycarbonate sheet
1. Product Description
| Multi-wall Sheet Product Data | |||||||
| Walls | Structure | Thickness (mm) | Weight (kg/m²) | Rib distance (mm) | U-value (W/m²K) | LT (%) clear | LT (%) opal white |
2-wall |
R-structure | 4 | 0.85 | 6 | 3.96 | 78 | 25~55% |
| 4.5 | 1.0 | 6 | 3.86 | 78 | |||
| 5 | 1.1 | 6 | 3.72 | 77 | |||
| 6 | 1.3 | 6 | 3.56 | 77 | 20~50% | ||
| 8 | 1.5 | 10 | 3.26 | 76 | |||
| 10 | 1.7 | 10 | 3.02 | 73 | |||
|
3-wall
|
R-structure | 6 | 1.4 | 12 | 3.22 | 74 | 25~55% |
| 8 | 1.6 | 12 | 2.92 | 72 | |||
| 10 | 1.8 | 12 | 2.68 | 72 | |||
| 12 | 2 | 12 | 2.60 | 71 | 25~45% | ||
| 12 | 2.1 | 16 | 2.56 | 72 | |||
| 14 | 2.4 | 16 | 2.42 | 69 | |||
| 16 | 2.7 | 16 | 2.27 | 68 | |||
|
4-wall
|
R-structure |
8 | 1.8 | 12 | 2.56 | 71 | 25~45% |
| 10 | 2.1 | 12 | 2.39 | 70 | |||
| 12 | 2.3 | 12 | 2.32 | 70 | |||
| 14 | 2.5 | 12 | 2.11 | 69 | |||
| 16 | 2.8 | 12 | 2.03 | 68 | |||
| 18 | 3.1 | 12 | 1.88 | 66 | 20~40% | ||
| 20 | 3.3 | 12 | 1.69 | 63 | |||
5-wall |
X-structure |
10 | 2 | 16 | 2.62 | 68 |
25~45% |
| 12 | 2.1 | 16 | 2.60 | 66 | |||
| 14 | 2.3 | 16 | 2.56 | 65 | |||
| 16 | 2.7 | 16 | 2.10 | 65 | |||
4-wall |
H-structure |
8 | 2 | 5 | 2.42 | 58 | 20~40% |
| 10 | 2.2 | 5 | 2.16 | 57 | |||
| 12 | 2.5 | 5 | 1.98 | 56 | |||
7-wall |
X-structure | 25 | 3.6 | 20 | 1.41 | 57 | 20~38% |
| 30 | 3.8 | 20 | 1.38 | 53 | 20~35% |
||
| 32 | 4 | 20 | 1.32 | 52 | |||
| 35 | 4.5 | 20 | 1.26 | 52 | |||
| 40 | 5 | 20 | 1.19 | 50 | |||
2. Color Choice
3. Functions

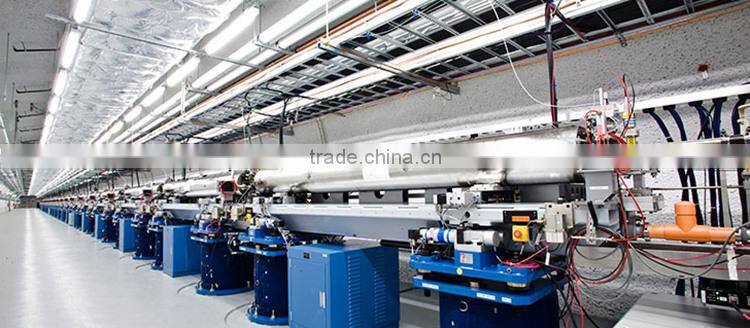

4. Company Information
Haining Brian Desmond Electrical Co., Ltd. is a professional manufacturer of polycarbonate multi-wall sheets and polycarbonate solid sheets. The company has a whole set of advanced UV co-extrusion production apparatus and technology, using German Bayer and Japanese Mitsubishi raw materials, capable of producing polycarbonate multi-wall sheets and polycarbonate solid sheets of various specifications. To strictly control the quality of produced sheets, the company is equipped with advanced apparatuses for test and control the quality of waw material, with production process under ISO 9001. The production has passed the test conducted by the National Supervision and Ispection Center of Quality of Chemical Building Materials, and ROHS recognition of SGS Laboratory, a world-famous inspection agency, with each item of specification meeting the standards. We are the expert in PC sheets right in your immediate access.
5. Our service
OUR SERVICE
- Quotation: To be sent in excel files with product pictures as soon as you inquiry
- Package: supplying various packing design with customers brand and idea.
- Delivery: within 20-25 days
- Shipment: Pre-shipment inspection is available. The lowest sea freight and fastest vessel will be selected
AFTER-SALES SERVICE
- Please send the feedback of goods within 90 days after shipment, it is helpful for us to improve the design, quality,package and service.
- The goods with quality defect will be replaced within 60 days after shipment.
- Five years quality warranty.
QUALITY CONTROL
- Since preparing material to the finished products, every steps are controlled by our QC and sales.
- While order are under producing, we will select some samples for testing.
- After finished producing, every pieces will be checked one by one by QC.
- Before loading, our worker will check the products appearance and package.

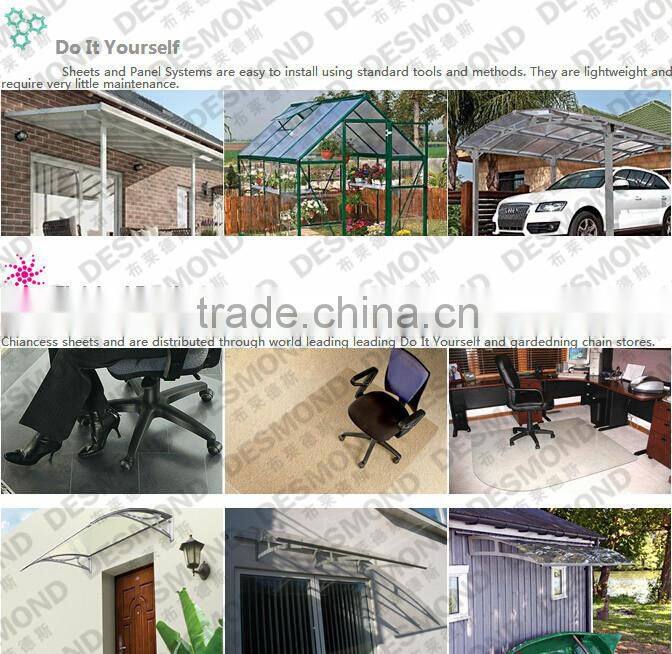

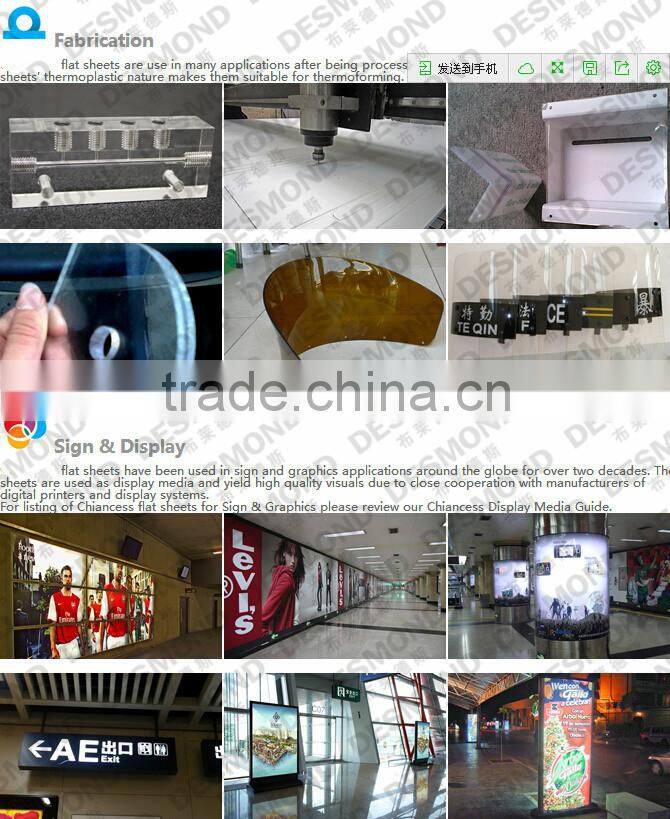

6. Product Uses

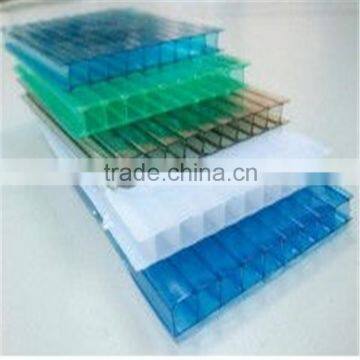

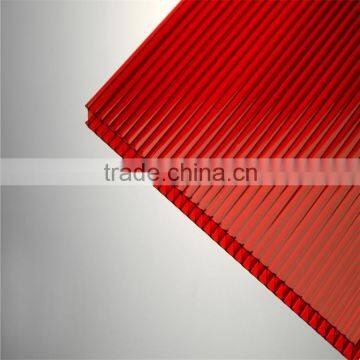

7. Product Overviews
