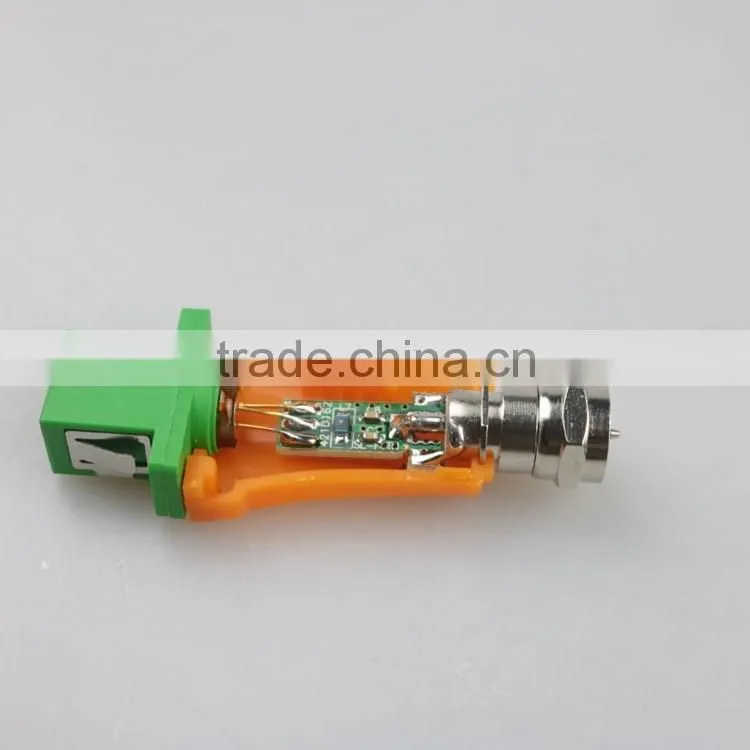

SC / APC FC / APC 1100 - 1600nm optical fiber node FTTB FTTH receiver
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Yogel | Model Number: | mini receiver |
Product Description
catv ftth fiber optic optical node
optical ftth node is specially designed for FTTB - Fiber to the building network structure.
Low consumption, high output level, small size, compact and reasonable internal circuit structure and excellent performance make it to be the first choice to build CATV FTTB network.
Main used to fiber to building network to simple the network structure, reduce the cost and optimize the signal quality.
Key Features:
1. Adopt low noise high sensitivity PIN Optical detector.
2.AGC control range0~-7dBm, output level unchanged, CTB and CSO unchanged basically.
3.EQ and ATT both use the professional electric control circuit, makes the control more accurate.
4.Work under the control of single-chip microcomputer. All parameters display digitally and easy for operation.
5. Small size and easy to install.
6. Built-in the national standard class network manager responder, support remote network management.
Specifications:
wavelength :1100~~1600nm &1550nm
Input optical power :0dBm~-10dBm&0dBm~-7dBm
Return loss :>45dB
Optical connector :FC/APC&SC/APC&PC&SC/PC
RF bandwidth : 40~862&1006MHz
Flatness :±0.75dBm@40~862MHz&1006MHz
FR output loss :≥16dB@40-550MHz≥14dBm@550~860&1006MHz
Output level :>68dBuV(0dB test)
Output port :1
Output impedance: 75Ω
Noise ratio :≥51dB
CTB :≥65dB
CSO :≥62dB
Working temperature :-25℃~+45 or customize
Size :65*22*10mm
RELATED TYPES
Packing:
1/carton box,or according to customer request
Shipping:
in7 days for Mini Fiber Optical ftth node
Welcome to our factory.
The main idea of Yogel company is honesty and efficiency.
Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in optical fiber passive devices, fusion splicer & accessories and optical test instruments.
We provide sales and services of patch cords, fast connector, fiber coupler, optical adapters and fiber splice closure.
Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.
We attended the Peking Exhibition, hope to meet you next year.
For more information please visit Shanghai Yogel Communication Equipment Co., Ltd.
We offer the sincere dedicated service.
Before Sale | detailed products test report related specifications |
During Cooperation | OEM Service Offered Design Service Offered Buyer Label Offered |
After Sale | Any problems on the product, please contact us |
1. Can I get some samples of optical fiber receiver?
Yes, Sample order is available for quality check and market test .And you just to pay the express cost.
2. What’s delivery time catv ftth agc optical receiver?
It usually takes about 5-7 working days .
3. What’s your payment terms of optical receiver?
We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.
4. What’s your warranty terms ?
We offer 12 months warranty time .
5. Can I mix different power in one container ?
Yes ,Different models can be mixed up in one container ,even one order .
6. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.
