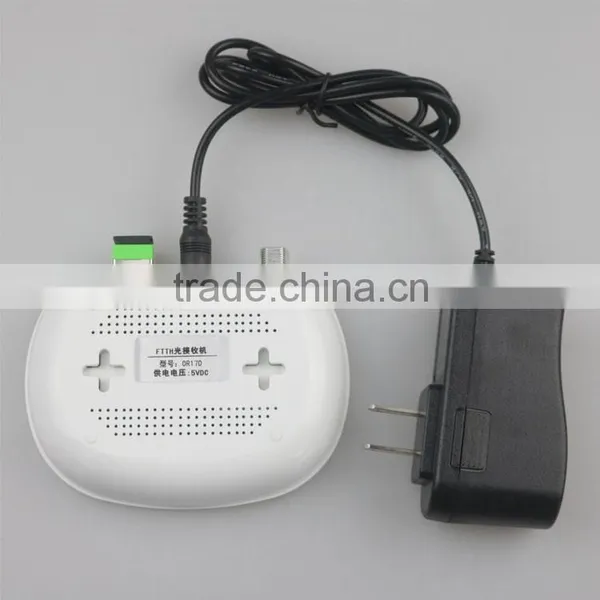

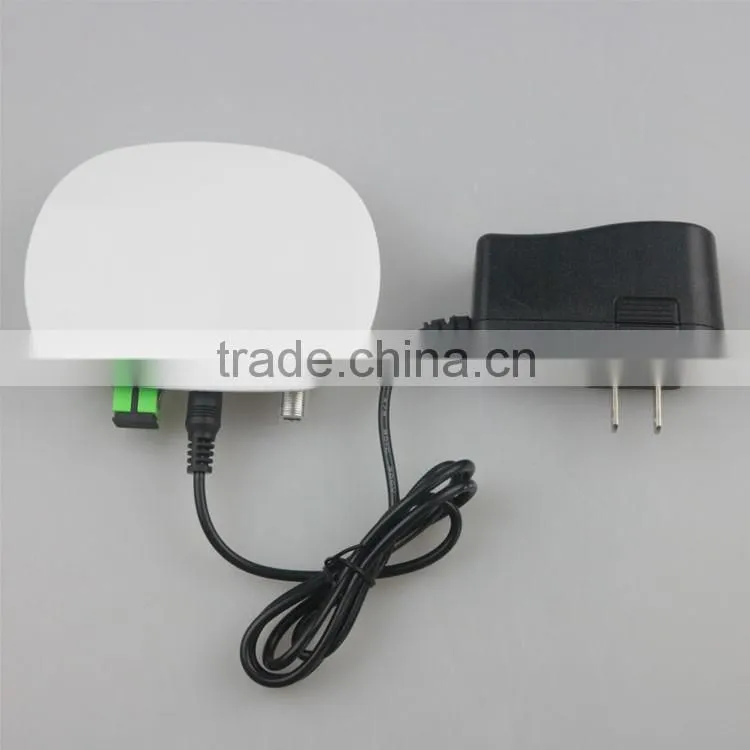

Free shipping Cable TV FTTX Optical fiber FTTH Receiver mini node PON OLT
Key Features:
1. FTTH CATV Fiber Optic Receiver build in Filter Fiber Optic Node
2. with the function of filter. +2~-9dBm, AGC, 70~80dBuv
Specifications
Item |
Unit |
Specifications |
Optical parameters | ||
Received optical power |
dBm |
-15—+2 |
Optical Return Loss |
dB |
>45 |
The wavelength of the optical-receiving |
nm |
1100 ~ 1600 |
Optical Connector Type |
|
FC/APC,SC/APC(or User-specified) |
Fiber Type |
|
Single-mode |
Link performance | ||
C/N |
dB |
≥50 |
C/CTB |
dB |
≥65 |
C/CSO |
dB |
≥63 |
RF parameters | ||
Range of Frequency |
MHz |
45~1000 |
Band flatness |
dB |
±0.5(45-550MHz) ;±0.75(550-1000MHz) |
Nominal output level |
dBμV |
82(±1dBuV) |
AGC input |
dBm |
-8—+2 |
Output Return Loss |
dB |
≥14 |
Output Impedance |
Ω |
75 |
General characteristics | ||
Power supply |
V |
AC (150~265)V |
Working temperature |
℃ |
-25 ~60 |
Power consumption |
VA |
≤ 5 |
Before Sale Service:professional offer detailedproducts test report related specifications
Contract Manufacturing: OEM Service Offered design service offered buyer Label Offered
Shanghai Yogel Communication Equipment Co.,Ltd. welcome to visit our factory!
The core of Yogel is honesty and efficiency.pls feel free to contact us.
Your inquiry is expected! Warmly welcom you to inquiry us for this product.
