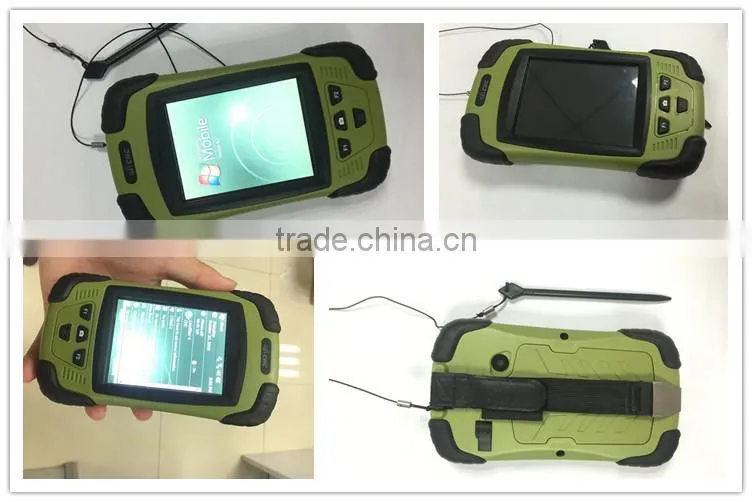

CHC LT30TM cheap handheld gps China handheld devices for land surveying
LT30TM is a GIS handheld terminal with SBAS&DGPS enabled high-sensitivity GPS+GLONASS engine. Designed for efficient field work in the most demanding conditions, LT30TM features GPS+GLONASS capability, post-processing for better accuracy, VGA sunlight readable screen and up to 10 hours battery life. G
gps handheld
LT30TM GPS/GIS Handheld Terminal
| LT30TM GNSS (M Level) | 167 Channel L1 GPS+GLO | ||
| Part Number | Description | Pcs |
| LT30TM Kit | ||
| 0505 080 005 | LT30TM GNSS Receiver Kit | 1 |
| 0401 070 053 | LT30TM GNSS Receiver | 1 |
| 0405 000 027 | Li-Ion Battery | 1 |
| 0403 000 033 | Data Cable (USB) for LT30TM | 1 |
| 0405 000 028 | Power Adapter | 1 |
| 0490 000 093 | Stylus | 1 |
| 0490 000 094 | Hand strap | 1 |
| 0101 080 005 | 8G TF Card | 1 |
| Software | ||
| 1904 210 602 | Map Cloud Software | 1 |
| 1904 210 571 | CGO Post Processing Software | 1 |
| Additional Accessory | ||
| 0403 000 079 | LT30TM Magnetic L1 Antenna with Cable | 1 |
| 0403 000 033 | LT30TM Data Cable (USB) | 1 |
| 0403 000 036 | LT30TM USB to RS232 Data Cable | 1 |
| 0405 000 028 | LT30TM Power Adapter | 1 |
| 0405 000 027 | LT30TM Lithium Battery | 1 |
| 0406 000 037 | LT30 Carry Pouch | 1 |
| 0490 000 093 | LT30TM Stylus | 1 |
Versatile Data Collector
The versatile functionality of LT30TM makes it meet the demands in various fields, like municipal projects, logistics and forestry. It is an ideal field computer with an affordable price for a large range of applications from GIS data collection and maintenance, agriculture field measurement, environmental control…
Connectivity
With an integrated voice and data modem, LT30TM offers advanced methods needed to access the Internet and exchange project files with your office. Wireless connection to external device such as a laser range finder or RTK receiver is simple with LT30TM’s Bluetooth and Wi-Fi capability.
Compatible
Compatible with field data collection software running on Windows Mobile 6.1/6.5, LT30TM is the solution for an easy-to-deploy GNSS handheld.d GPS Survey
gps handheld
Handheld GPS Survey
CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance. Most of CHC products have achieved IP67 dustproof and waterproof level.
| GNSS characteristics |
· 72 - channel signal tracking · Update Rate: 5 Hz · Time to first fix |
| Performance specifications |
· Stand alone GPS: 2.5 m RMS · DGPS: 1.5 m RMS |
| System configuration |
· Windows Mobile 6.1/6.5 operating system · Multi-language supported |
| Communications |
· GSM/GPRS (850/900/1800/1900 MHz) phone and data transmission · Bluetooth V2.0 Class 2 · 802.11 b/g wireless LAN · MiniUSB client · Optional RS232 9pin serial · Builtin microphone and speaker · RTCM 2.3, NMEA 0183 protocol support gps handheld |
| Physical |
· Size (LxWxH): 158 x 85 x 25 mm (6.3 x 3.4 x 1.2 in) · Weight: 340 g with battery (12 oz) · Operating Temperature: 20 °C to +60 °C (4°F to 140°F) · Storage Temperature: 30 °C to +70°C (22°F to 158°F) · Dust proof and waterproof as per IP65 standard · Shock: withstand 1.2meter / 4foot drop |
| Electrical |
· Liion battery capacity: 3000 mAh · Battery life: up to 10 hours with GPS and backlight |
| Package content |
· Size (LxWxH): 158 x 85 x 25 mm (6.3 x 3.4 x 1.2 in) |
| Accessories (optional) |
· Vehicle power adapter |
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
Founded in 2003, CHC designs, manufactures and markets a wide range of professional GPS/GNSS solutions in more than 100 countries. Headquartered in Shanghai (China) and with offices worldwide CHC is a leading GNSS manufacturer with a strong international presence and employs more than 800 professionals worldwide.
Exhibition & Seminar
Please feel free to contact us if you have any question. We will always dedicate the best service to you.
