CHC DL6 made in china gps radio rtk gps arduino surcey device accessory

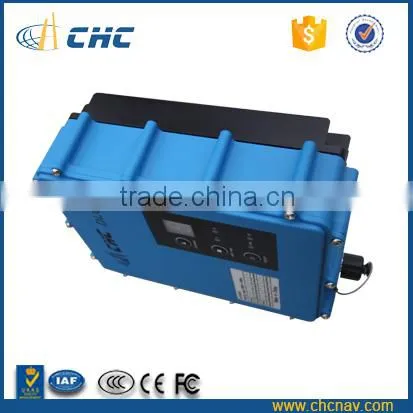

The CHC DL6 is a newgeneration data link specially designed for advanced field communication based on rich
technology experience and various field experiments. Offering with many improvements, DL6 still remains
stability and reliability.
DL6 Datalink Kit
| DL6 Datalink | 1 |
| GPS to Datalink Cable (Power Cable) | 1 |
| Datalink Antenna | 1 |
| 3 Meter Cable for Datalink Antenna | 1 |
| Datalink Data Setup Cable | 1 |
| Datalink Antenna Mounting Pole Kit | 1 |
| Pole Mounting | 1 |
Self-Protection Capability
As composed of various sensitive components, all the datalinks are sensitive to the change of electric current
and voltage. During the field operation, any unexpected situation may occur and the external power source
may fluctuate violently, which can cause damage to the datalink.
With the capabilities of voltage protection and reverse connection protection, the DL6 not only can stop
working when external input voltage outside the specified range, but also protect itself from the the damage
created by the reverse connection between positive electrode and negative electrode, saving the trouble of
frequent repair.
Easy-to-use and Multifunction User Interface
10 channels are available to be preset the frequently used frequencies, and 6 adjustable transmit power
options from 5 W to 28 W are provided to predefine the high transmit power and the low one, respectively.
The customizable settings feature enables the users to deploy the DL6 to fit the varying needs. Once the
configuration has been prepared, the DL6’s multi-function interfacewill streamline the workflow by
simply pressing correspondingbuttons.
KEY FEATURES
| 1 | Quick and easy setup in the field |
| 2 | Rugged design for demanding environment |
| 3 | Multi-function user interface |
| 4 | 6 adjustable transmit power options from 5 W to 28 W |
| 5 | Multiple protocols support: CHC,Transparent, TT450S |
Finished Products
CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance.
Most of CHC products have achieved IP67 dustproof and waterproof level.
| General specification |
· Communication: 1 RS232 serial port, up to 115200 bps · User interface: 1digital display, 3button, 4status indicator |
| Power |
· External: 916 V DC · During Tx -1.5 W nominal @ 12 V DC, standby -35 W nominal @ 12 V DC, low transmit power -75 W nominal @ 12 V DC, high transmit power |
| Modem specifications |
· Link rate -9600 bps -19200 bps · Modulation: GMSK · Link protocol: CHC, Transparent, TT450S |
| Radio Specifications |
· Frequency bands: 410470 MHz · Transmit power -Low: 5 W/ 10 W/ 15 W -High: 20 W/ 25 W/ 28 W · Type certification: FCC, CE |
| Physical |
· Size: 18 x 14 x 6.5 cm (7.1 x 5.5 x 2.6 in) · Weight: 1.5 kg (52.9 oz) · Operating temperature: -30 °C to +65 °C (-22 °F to 149 °F) · Storage temperature: -55 °C to +75 °C (-67 °F to 167°F) · Waterproof and dust proof: IP67 · Data / Power connector: 5 pin LEMO · Mount: tripod bracket |
| Antenna | · External: 50 Ohm, TNC female connector |
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
da
Founded in 2003, CHC designs, manufactures and markets a wide range of professional GPS/GNSS solutions in more than 100 countries. Headquartered in Shanghai (China) and with offices worldwide CHC is a leading GNSS manufacturer with a strong international presence and employs more than 800 professionals worldwide.
