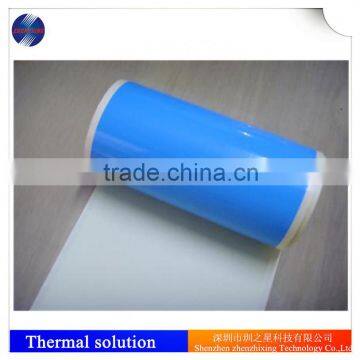

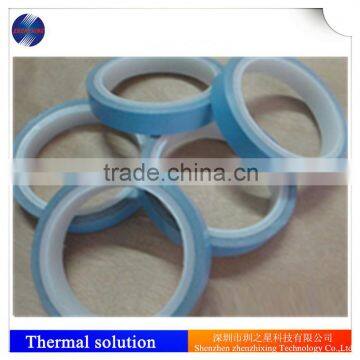

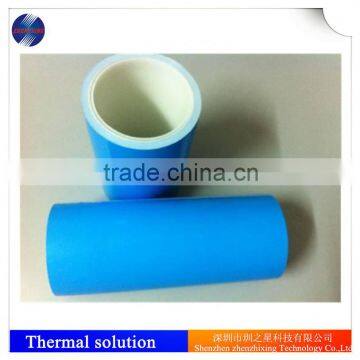

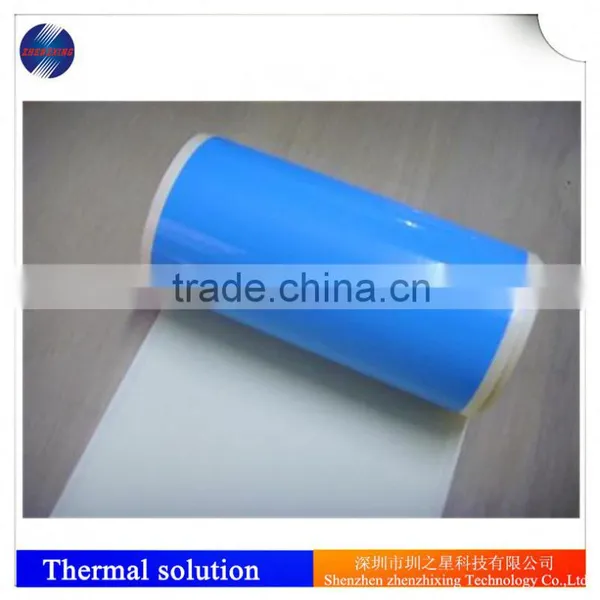

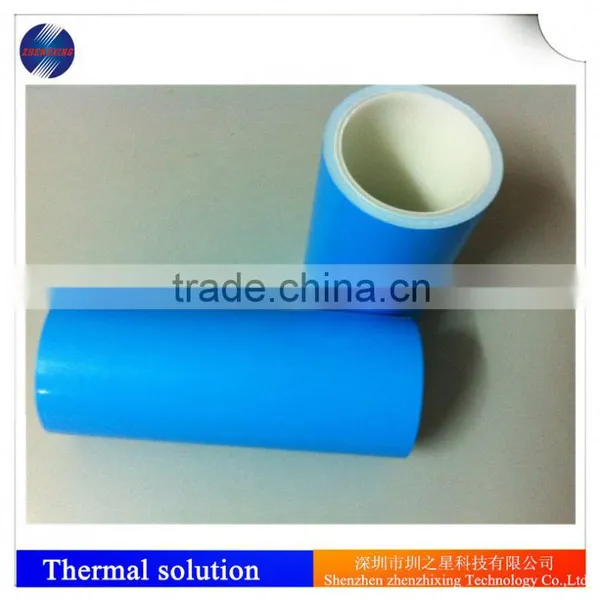

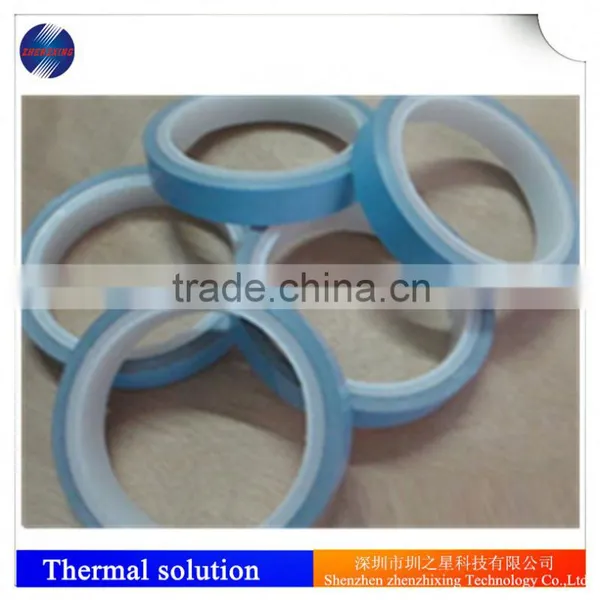

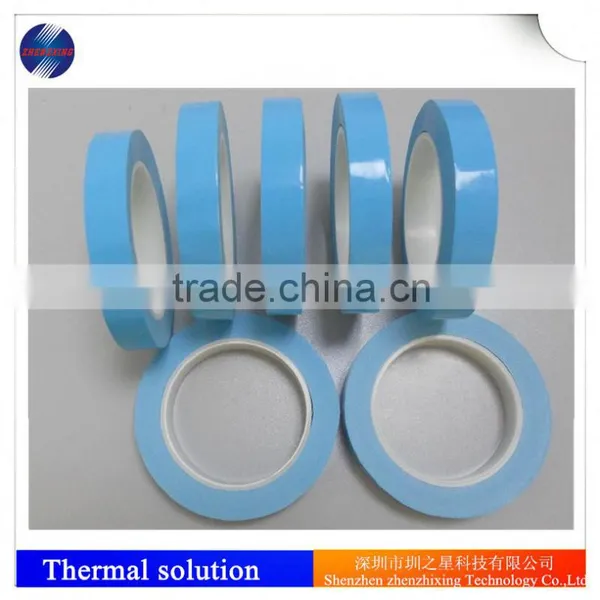

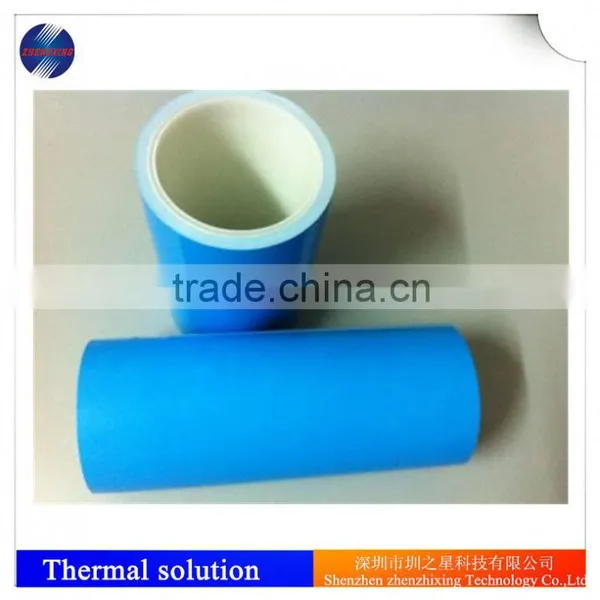

Polyimide strong double sided tape High acrylic adhesive tape
Features & benefits:
-High acrylic adhesive tape for pressure sensitive of various surfaces
-High-performance, thermally conductivity acrylic adhesive
Typical applications:
-Make the heat sink fixed to the encapsulated chip
-Make the radiator fixed to the power supply circuit board or the vehicle control circuit board
-Efficient thermal conductive acrylic adhesive
-Can replace the fixed mode of hot melt adhesive, screw and buckle
Features
.Thermally conductive
. Electrically isolating
. Soft and compressible
. Wide temperature compliance
. Strong sticky adhesive
. REACH, RoHS & UL compliant
Applications
. Electronic devices
. LED lightings
. Printings
. Hardware
. Power supply
. Others
Designed Size Offered
.Customized die cutting
Physical Properties:
Thickness |
Unit(mm) |
0.15 |
0.20 |
0.25 |
0.30 |
Color |
/ |
White |
white |
white |
white |
Specific Gravity |
G/cm3 |
1.8 |
1.8 |
1.8 |
1.8 |
Thermal conductivity |
W/M.K |
0.8 |
0.8 |
0.8 |
0.8 |
Heat Resistance |
°Cin2/W |
0.68 |
0.70 |
0.72 |
0.74 |
Breakdown Voltage |
VAC/mm |
3200 |
4000 |
5000 |
5000 |
Application Temperature |
°C |
-30~+120 |
-30~+120 |
-30~+120 |
-30~+120 |
Peel Adhesion |
N/25mm |
10.2 |
12 |
14 |
16.4 |
Tack |
N/25mm |
12 |
14.3 |
16.5 |
18.2 |
About Us:
Welcome to contact us and ask for more details!
