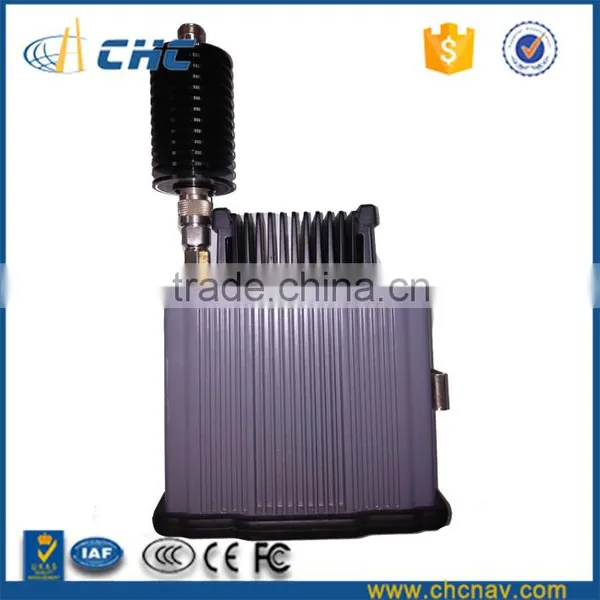

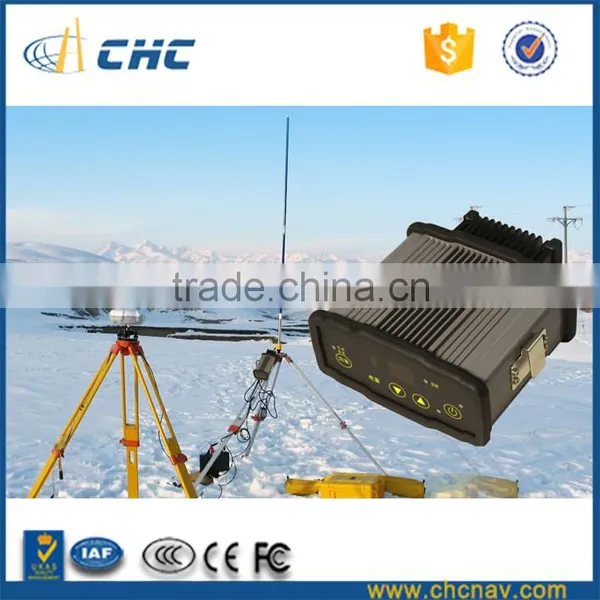

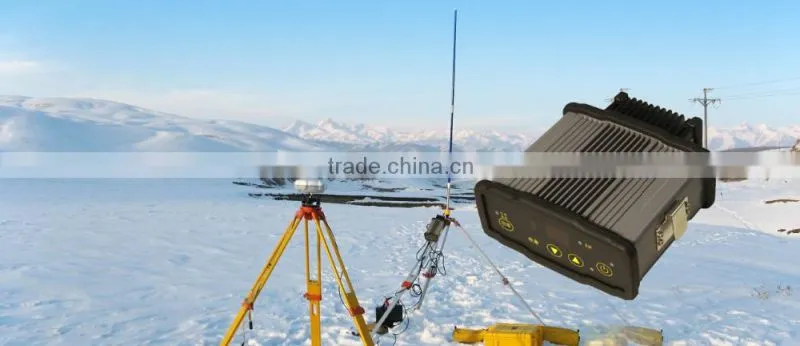

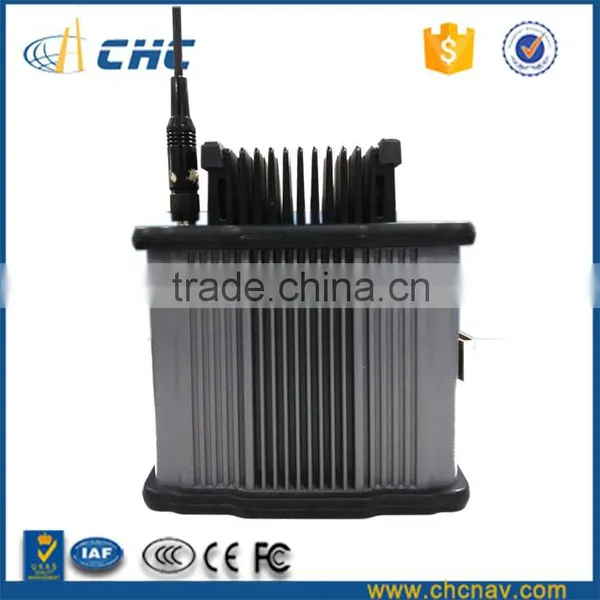

CHC DL5-C data link gnss topographic equipment for sale
DL5C is the newgeneration CHC datalink solution based on the combination of advanced technologies and
field operation experiences.The DL5C is designed for reliable RTK data transmission performances and easy configuration.
DL5-C Datalink Satel Radio Kit
| DL5-C Datalink | 1 |
| GPS to Datalink Cable | 1 |
| Datalink Antenna | 1 |
| 3 Meter Cable for Datalink Antenna | 1 |
| Datalink External Power Cable | 1 |
| Datalink Antenna Mounting Pole Kit | 1 |
| Pole Mounting | 1 |
Product Description

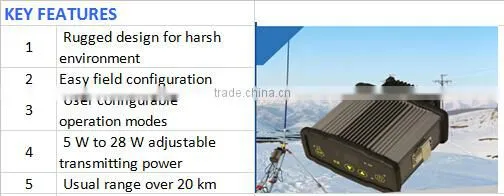

Rugged Design and Self-Protection
Any hightech products are sensitive to electrical current and voltage stability,especially in real surveyors field
operation where power supply sources may largely differ. The DL5-C provides realtime monitoring and
self-protection to improper or incorrect power input. In case of reversed polarity, the DL5-C will reject the
connection and warn the operator. If input voltage is out of acceptable range (too low or too high) the DL5-C
will automatically powers off to avoid incidental damage to the external battery or internal electronic components.

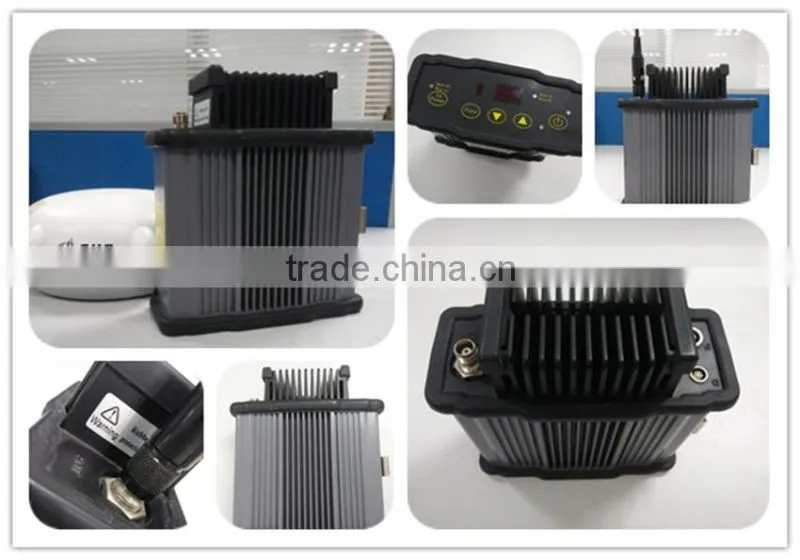

The DL5C’s industrial design includes a allaround bumper to greatly reduce damage risk from shock or fall,
securing your investment on alongterm.
satel radio
Light, Stable and Userfriendly
Weighing 1.3 kg, the DL5-C is one of the lightest and most compact RTK data modem within the industry. Its
waterproof design makes the DL5C ready for stringent weather conditions. Heat dissipation is also

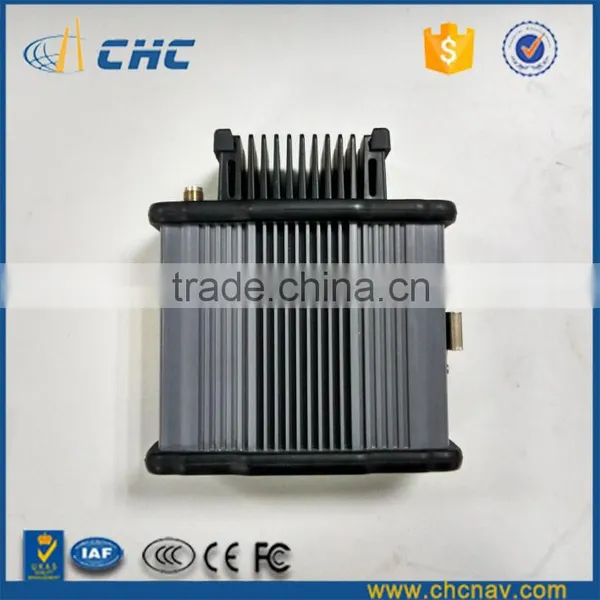

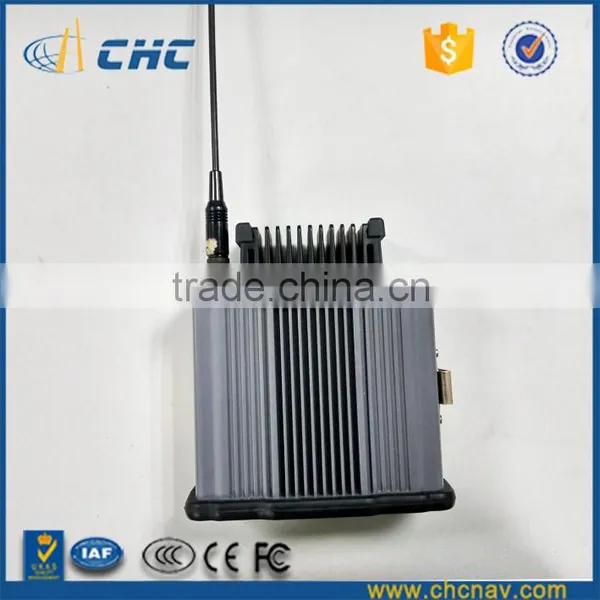

guaranteed not only by the rear cooling radiator but also from the entirely aluminum body allowing
full power output transmission throughout the day. Predefined frequencies table and power channels
allow easy and quick configuration matching your project surrounding and distance to cover between
the GNSS base station and the rover.
Reliable Data Communication
FEC (forward error correction), CRC (cycling redundancy check), interleaving and other advanced coding and
telecom technologies areapplied to enhance the stability and reliability of DGPS/RTK corrections
message forwarding. satel radio
CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance. Most of CHC products have achieved IP67 dustproof and waterproof level.
| General specification |

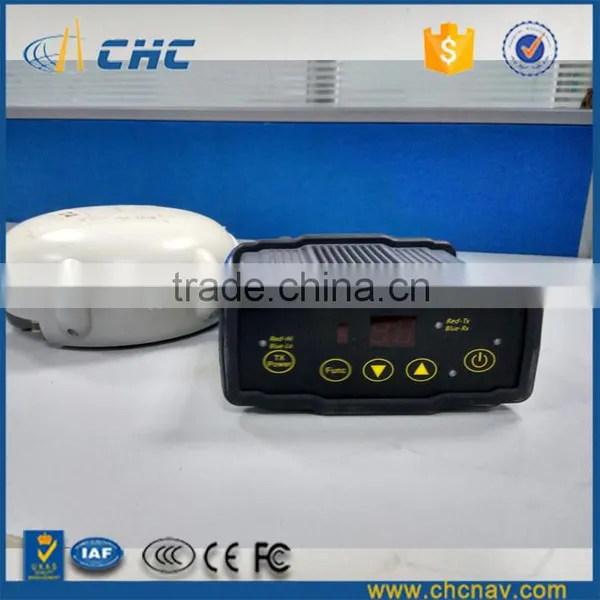

User interface: 2 digital displays 4 buttons 4 status indicators |
| Power |
· External: 11.6 ~ 15.5 VDC · During transmission: 28 Watts nominal |
| Antenna | External: 50 Ohm, TNC connector |
| Modem Specifications |
· Link Rate: 9600 bps @ 25 kHz · Modulation: GMSK · Link Protocol: CHC proprietary · Forward Error Correction: Yes |
| Radio Specifications |
· Frequency ranges: 412428 MHz 453467 MHz · Transmitter Output: 5W / 10W / 20W / 28W (selectable) · Adjacent Channel Selectivity: > 65dB @ 25 kHz |
| Physical |
· Size: 16.0 x 17.5 x 6 cm (6.3 x 6.9 x 2.4 in) · Weight: 1.3 kg (2.9 lbs) · Operating temperature: -30 °C to +65 °C (-22°F to+149°F) · Waterproof and dust proof: IP66 · Data / Power connector: 5 pin / 2 pin LEMO · Mount: tripod bracket |
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
at ra
Founded in 2003, CHC designs, manufactures and markets a wide range of professional GPS/GNSS solutions in more than 100 countries. Headquartered in Shanghai (China) and with offices worldwide CHC is a leading GNSS manufacturer with a strong international presence and employs more than 800 professionals worldwide.
