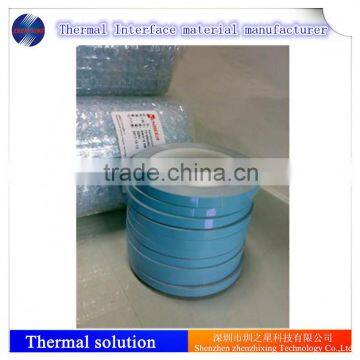

Double Sided Thermally Conductive insulation Adhesive Tape with fibergalss
Features Applications Designed Size Offered
.Thermally conductive . Electronic devices .Customized die cutting
. Electrically isolating . LED lightings
. Soft and compressible . Printings
. Wide temperature compliance . Hardware
. Strong sticky adhesive . Power supply
. REACH, RoHS & UL compliant . Others
Physical Properties:
Thickness |
Unit(mm) |
0.15 |
0.20 |
0.25 |
0.30 |
Color |
/ |
White |
white |
white |
white |
Specific Gravity |
G/cm3 |
1.8 |
1.8 |
1.8 |
1.8 |
Thermal conductivity |
W/M.K |
0.8 |
0.8 |
0.8 |
0.8 |
Heat Resistance |
°Cin2/W |
0.68 |
0.70 |
0.72 |
0.74 |
Breakdown Voltage |
VAC/mm |
3200 |
4000 |
5000 |
5000 |
Application Temperature |
°C |
-40~+120 |
-40~+120 |
-40~+120 |
-40~+120 |
Peel Adhesion |
N/25mm |
10.2 |
12 |
14 |
16.4 |
Tack |
N/25mm |
12 |
14.3 |
16.5 |
18.2 |
