Specifications
1.Rubber content of hose:30%~60%2.W.P 10bar B.P 30bar
3.Own factory;Best price
4.21 years manufacture experience

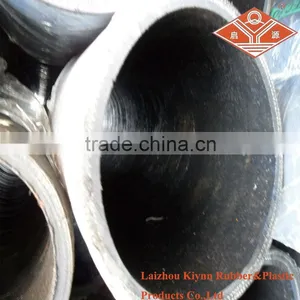

SAE R4 suction&delivery rubber hose with helix steel wire insert
This hose is constructed with the highest quality compounds to provide maximum flexibility, long life and lighter weight for easy handling.
Tube: SAE R4 suction&delivery rubber hose with helix steel wire insert
Applications: It is used for the suction of normal temperature oil & neutual liquid in the project of industrial mining, civil engineering and hydro project..
Material:Black EPDM/SBR blended compound
Cover:Neoprene
Reinforcement: by Nylon cord with helix steel wire embedded
Temperature:-40°F to +194°F (-40°C to + 90°C)
Standard Hose Length: 135ft (40m), 35ft (10m)
Technology parameters:
Size |
Layers |
O.D. |
W.P. |
Weight |
Length |
||
I.D.(mm) |
inch |
Layers |
O.D.(mm) |
Mpa |
kg/m |
lb/ft |
m |
25 |
1 |
2 |
49 |
1.5 |
1.25 |
0.84 |
40 |
32 |
1-1/4" |
2 |
57 |
1 |
1.47 |
0.99 |
40 |
38 |
1-1/2" |
3 |
60 |
0.8 |
1.7 |
1.14 |
40 |
45 |
1-3/4" |
4 |
69 |
0.8 |
2.1 |
1.41 |
40 |
51 |
2" |
3 |
72 |
0.7 |
2.2 |
1.48 |
40 |
51 |
2" |
4 |
74 |
0.8 |
2.4 |
1.61 |
40 |
64 |
2-1/2" |
3 |
86 |
0.7 |
2.8 |
1.88 |
40 |
64 |
2-1/2" |
4 |
87 |
0.8 |
3 |
2.01 |
40 |
76 |
3 |
4 |
100 |
0.6 |
3.6 |
2.42 |
40 |
76 |
3 |
5 |
102 |
0.7 |
3.8 |
2.55 |
40 |
102 |
4 |
4 |
125 |
0.5 |
5.3 |
3.56 |
10 |
102 |
4 |
5 |
127 |
0.6 |
5.6 |
3.76 |
10 |
127 |
5 |
4 |
152 |
0.5 |
7.9 |
5.30 |
10 |
152 |
6 |
5 |
178 |
0.6 |
8.5 |
5.70 |
10 |
152 |
6 |
6 |
181 |
0.5 |
9 |
6.04 |
10 |
203 |
8 |
8 |
230 |
0.5 |
14.61 |
9.80 |
10 |
254 |
10 |
8 |
296 |
0.5 |
20.75 |
14.03 |
10 |
Packing: Plastic inner side and woven outer side,Color packing or customized
Note:1.The weights above are all theoretical values, and the actual
weight needs to be re-determined as the customer’s requirement.
2.Requirements for special working pressure, length, or colors
may be satisfied according to orders.
3.We can product the size(inner diameter)of you need,it
include:3/4,1,1-1/4,1-1/2,1-3/4,2,2-3/8,2-1/2,3,3-1/2,4,5,6,7,8,10,12,18 ect.
If you have any questions ,pls contact with me at any time!
