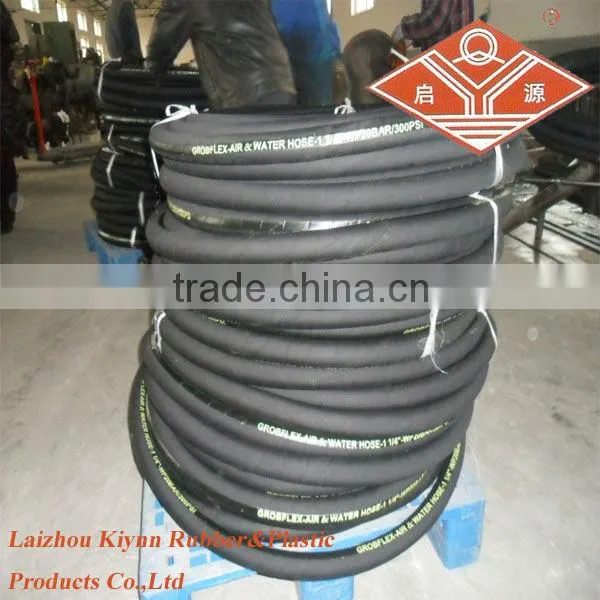

Best Saling Fabric Oil Hose

Best Saling Fabric Oil Hose thumbnail-1
Best Saling Fabric Oil Hose photo-1
US$ 0.12 - 3.48 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Kiynn
Model Number:
Oil pressure hose
Contact Supplier Request Quote Chat Now
Laizhou Qi Yuan Plastic Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Kiynn
Model Number Oil pressure hose
Material Other, Rubber, NR/SBR/NBR/EPDM
Specification 3/4,1,1-1/4,1-1/2ect
Length 20/40, 20/40meter
Thickness 5mm
Standard CE

Specifications

1. Rubber content of oil hose:30%~60%
2.W.P 10bar B.P 30bar
3.My own factory;Best price
4.21 years meaufacture experience

Oil-resisting rubber hose

Applications:Conveying or pumping gasoline, kerosene, diesel oil, lubricatingoil and other mineral oils andother products.

Main structure:

Inner layer:1.materials:NR/SBR/BR/NBR/EPDM

  2.features:exhibiting characteristics of smoothing, anti-bending, anti-elongating and anti-aging.

Framework:employing fine fabric (canvas) or chemical fabric cloth.

Outer layer:1.materials:NR/SBR/BR/NBR/EPDM

                   2. features: Oil hose light body weight, anti-aging, anti-ozone, anti-bending, fine resilience, wear resistant, and good view.

Suitable temperature:-40°C ~ +90°C

Technology standard: GB/T 1186-2007

Technology parameters:



Inner diameter

I.D.

Working pressure

W.P.

Blasting pressure

B.P.

Weight

Kg/M

Length

Max. M

mm

inch

Psi

Mpa

Psi

Mpa

8

5/16

42~170

0.3~1.2

126~510

0.9~3.6

0.23

100±1%

9.5(10)

3/8

42~170

0.3~1.2

126~510

0.9~3.6

0.26

13(12.7)

1/2

42~114

0.3~0.8

126~340

0.9~2.4

0.36

16

5/8

42~114

0.3~0.8

126~340

0.9~2.4

0.53



50±1%

19

3/4

42~114

0.3~0.8

126~340

0.9~2.4

0.64

22

Non-standard

42~114

0.3~0.8

126~340

0.9~2.4

0.67

25

1

42~114

0.3~0.8

126~340

0.9~2.4

0.85

32

11/4

42~114

0.3~0.8

126~340

0.9~2.4

1.20

34

Non-standard

42~114

0.3~0.8

126~340

0.9~2.4

1.28

38

11/2

42~114

0.3~0.8

126~340

0.9~2.4

1.39

40±1%

45

13/4

42~114

0.3~0.8

126~340

0.9~2.4

1.62

51

2

42~114

0.3~0.8

126~340

0.9~2.4

1.80

58

23/8

28~114

0.2~0.8

85~340

0.6~2.4

1.85

60

Non-standard

28~114

0.2~0.8

85~340

0.6~2.4

1.90

64

21/2

28~114

0.2~0.8

85~340

0.6~2.4

2.02

70

Non-standard

28~114

0.2~0.8

85~340

0.6~2.4

2.18

76

3

28~114

0.2~0.8

85~340

0.6~2.4

2.41

89

31/2

28~114

0.2~0.8

85~340

0.6~2.4

2.78

102

4

28~70

0.2-0.5

85~200

0.6~1.5

3.16



20±1%

114

Non-standard

28~70

0.2-0.5

85~200

0.6~1.5

3.50

127

5

28~70

0.2-0.5

85~200

0.6~1.5

3.87

152

6

28~70

0.2-0.5

85~200

0.6~1.5

5.13

10±1%

178

7

28~70

0.2-0.5

85~200

0.6~1.5

6.15

203

8

28~42

0.2~0.3

85~126

0.6~0.9

6.97

254

10

28~42

0.2~0.3

85~126

0.6~0.9

9.78

305

12

28~42

0.2~0.3

85~126

0.6~0.9

13.03

457

18

28~42

0.2~0.3

85~126

0.6~0.9

24.28

Note:

1.The weights above are all theoretical values, and the actual weight needs to be re-determined as the customer’s requirement.

2.Requirements for special working pressure, length, or colors may be satisfied according to orders.

3.We can product the size(inner diameter)of you need,it

include:3/4,1,1-1/4,1-1/2,1-3/4,2,2-3/8,2-1/2,3,3-1/2,4,5,6,7,8,10,12,18 ect.
