Specifications
1.Customized size2.W.P:bar or 1.2 Mpa
3.SBR,NBR,EPDM
4.My own factory

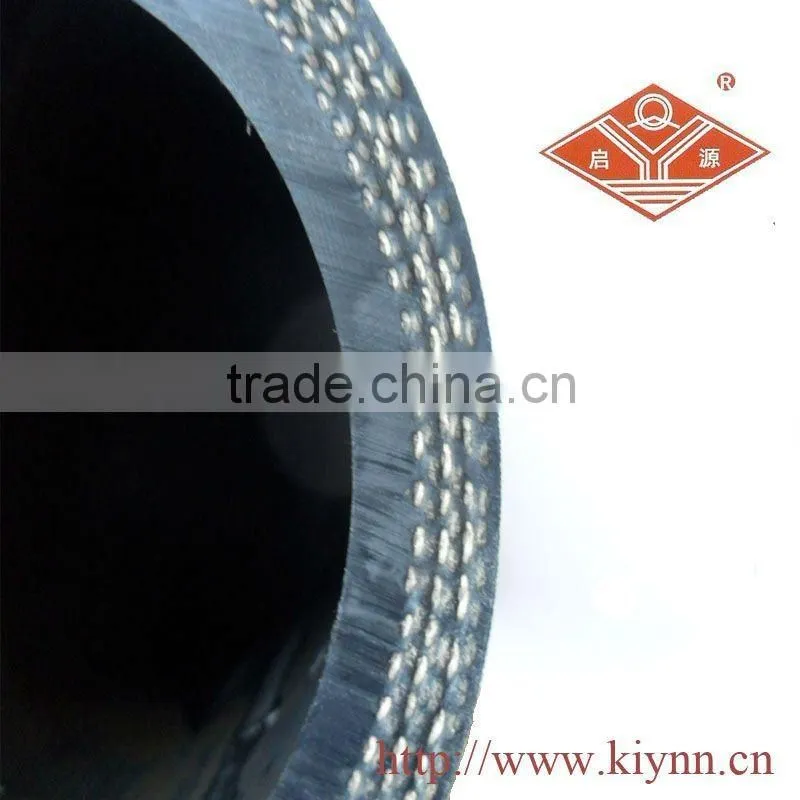

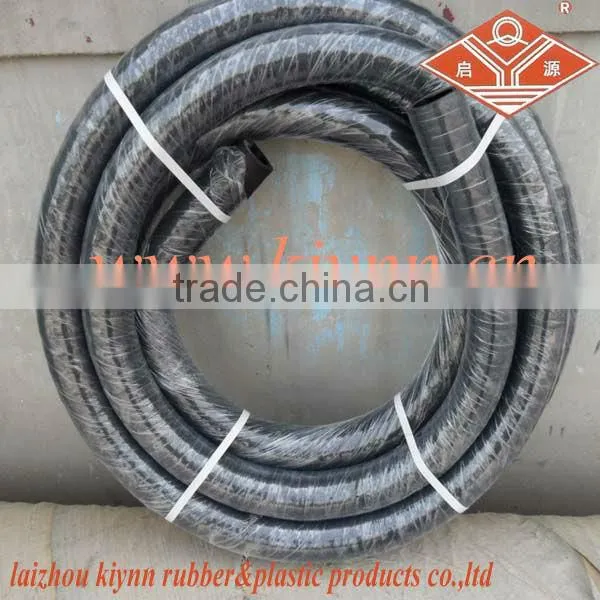

Sand blast rubber hose (Fabric reinforced sand blast rubber hose, Winding rubber hose)
The kiynn sand blast rubber hose is developed after 20 years of extensive studies. Using nano technology, the rubber hose exhibits characteristics of excellent wear-resistance, toughness as well as tolerance towards high pressure, with 3-5 folds wear-resistance of normal sand blast rubber hose and better performance.
Applications:
1. Mainly used for various kinds of sand blast machines.Taking shipbuilding industry ,it can be used for removing rust and enhancing adhesion before hull painting.
2. Other industries: Oil tank rust-removing and reinforcing; corrosion protection in gates of bridges and irrigation works; rustproof, de-oxidation, and paint removal for metallic parts.
Main structure:
Inner layer: Using natural rubber, polyurethane rubber and other composite rubbers as major materials, with the addition of special reinforcing agent.
Framework: The fabric reinforced sand blast rubber hose employs fine fabric (canvas) or chemical fabric cloth as reinforce layer; thus having good flexibility and loading-bearing capacity.
Outer layer: Using natural rubber and other composite rubbers, exhibiting good wear- and oxidation- resistance, long useful life and good view.
Main types:
Normal sand blast rubber hose;
rubber hose for waterway desilting,
cementing pump truck, concrete, grout, sediment, coal injection truck,
bulk cement truck,
sandblast, big inch grout hose,
white powder and dredging.
Blasting materials:
Quartz sand, steel shot, sediment, ball bearing, cement powder, cement concrete, dry powder mortar, coal fines, carbon powder, and mineral powder.
Suitable temperature: -40°C~+90°C
Technology standard: HG2192-2007
Technology parameters
|
Inner diameter I.D. |
Working pressure W.P. |
Blasting pressure B.P. |
Weight
|
Length
|
inch |
Psi |
Psi |
Kg/M |
Max. M |
3/4 |
42~114 |
126~340 |
1.25 |
|
1 |
42~114 |
126~340 |
1.70 |
|
11/4 |
42~114 |
126~340 |
2.50 |
|
11/2 |
42~114 |
126~340 |
2.94 |
40±1% |
13/4 |
42~114 |
126~340 |
3.48 |
|
2 |
42~114 |
126~340 |
3.87 |
|
23/8 |
28~114 |
85~340 |
4.44 |
|
21/2 |
28~114 |
85~340 |
4.85 |
|
3 |
28~114 |
85~340 |
5.41 |
|
31/2 |
28~114 |
85~340 |
5.78 |
|
4 |
28~70 |
85~200 |
7.50 |
20±1% |
5 |
28~70 |
85~200 |
3.87 |
|
6 |
28~70 |
85~200 |
9.67 |
10±1% |
7 |
28~70 |
85~200 |
15.37 |
|
8 |
28~42 |
85~126 |
17.45 |
|
10 |
28~42 |
85~126 |
24.45 |
|
12 |
28~42 |
85~126 |
32.50 |
|
18 |
28~42 |
85~126 |
60.7 |
Note: 1.The weights above are all referance datas, and the actual weight depend on customer’s requirement.
2.Requirements for special working pressure, length, or colors may be satisfied according to your order.
