Home > Products > PVC Layflat Hose > PVC Hose-PVC Layflat Water Discharge Hose

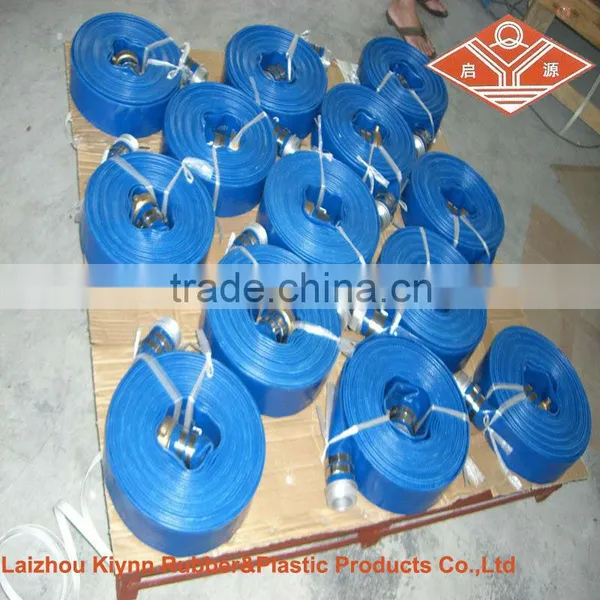

PVC Hose-PVC Layflat Water Discharge Hose
- 10000000 Meter / Meters per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | Kiynn | Model Number: | 1"~12" |
Product Description
Specifications
1.Meet ISO, CE certificate2.Flat hose is easy to move&store
3.Free samples for you
4.Good resistance to abrasion
PVC Hose-PVC Layflat Water Discharge Hose
Application: | 1.Designed for discharge of water. Irrigation, drainage,sprinkle and water supply applications on farmland and construction site 2.Also suitable for light duty dewatering applications and water washdown |
Length | 30-100M at custom's option |
Tube: | Plasticized PVC resin smooth surface |
Reinforcement: | Made of high-strength polyester cotton yarn,lined with PVC inside and outside,light and easy-handing |
Cover: | Blue,Red,Brown,Green,Yellow,and Black cover color are available. Other colors can be customized |
Temperature: | -5 -+65 centigrade. |
Stamp | Specification or logo stamp at end of hose free of charge |
Feature: | 1.Lightweight, tough,durable and long service life 2.Rolls up flat is easy move, retrieval and handle 3.Resistance to abrasion, corrosion,heat and aging 4.Easy extend to longer length with hose coupling and clamp |
size | I.D. | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa |
(Inch) | (mm) | Kg/m | Kg/m | Kg/m | Kg/m | Kg/m | Kg/m |
1" | 25.41.3 | 0.12 | 0.13 | 0.14 | 0.155 | 0.17 | 0.185 |
1-1/4" | 31.8+/-1.3 | 0.14 | 0.15 | 0.175 | 0.195 | 0.21 | 0.23 |
1-1/2" | 38.1+/-1.5 | 0.18 | 0.20 | 0.24 | 0.27 | 0.30 | 0.32 |
2" | 50.3+/-2.0 | 0.25 | 0.30 | 0.35 | 0.375 | 0.39 | 0.42 |
2-1/2" | 63.5+/-2.3 | 0.32 | 0.38 | 0.45 | 0.48 | 0.52 | 0.55 |
3" | 76.2+/-2.3 | 0.38 | 0.47 | 0.57 | 0.63 | 0.69 |
|
4" | 101.6+/-2.5 | 0.52 | 0.58 | 0.72 | 0.80 | 0.90 |
|
5" | 127+/-2.8 | 0.75 | 0.85 | 0.95 | 1.10 | 1.20 |
|
6" | 152.4+/-3.0 | 0.92 | 1.05 | 1.20 | 1.40 |
|
|
8" | 203.2+/-3.5 | 1.45 | 1.55 | 1.70 | 1.90 |
|
|
10" | 254.0+/-4.5 | 2.3 | 2.5 |
|
|
|
