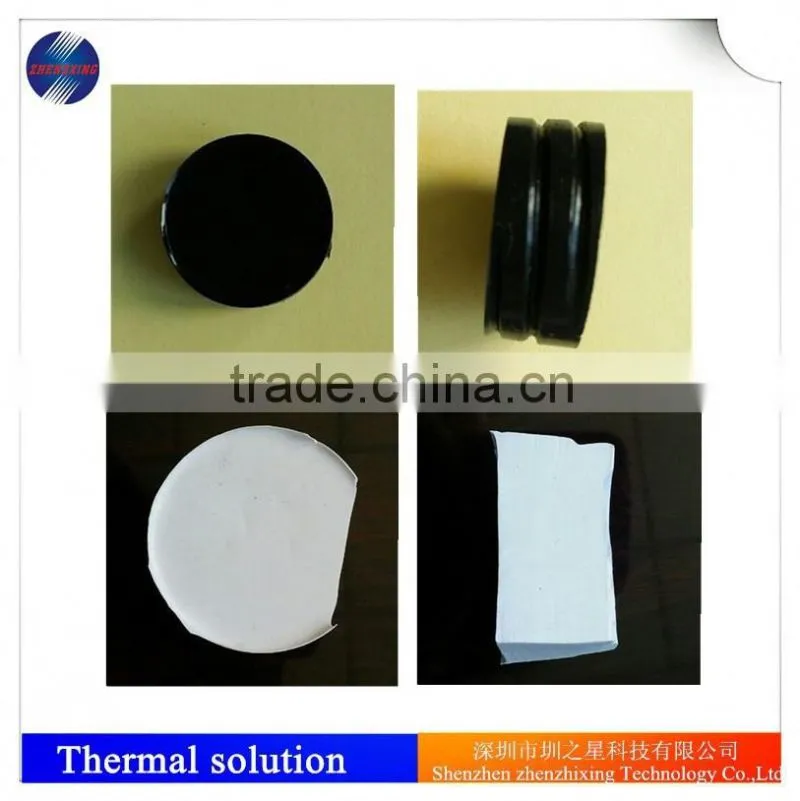

Nautral silicone compound for electronic products short Curing time
Product Features:
1.Two-component, nautral curing. non-corrosive and simple to operate;
2.Have excellent electrical insulation;
3.Resistance to high and low temperature performance;
4.It Will not become brittle, hardening or cracking at -50°C, after curing, and will not become soft, degradation, always keep good flexibility at 180 °C.
5.The product can deep curing so on and be adjusted with the used requirements.
Product Applications:
1.Industry silicone sealant is designed for adhesion and sealing for refrigerator, induction cooker and other household electrical appliances.

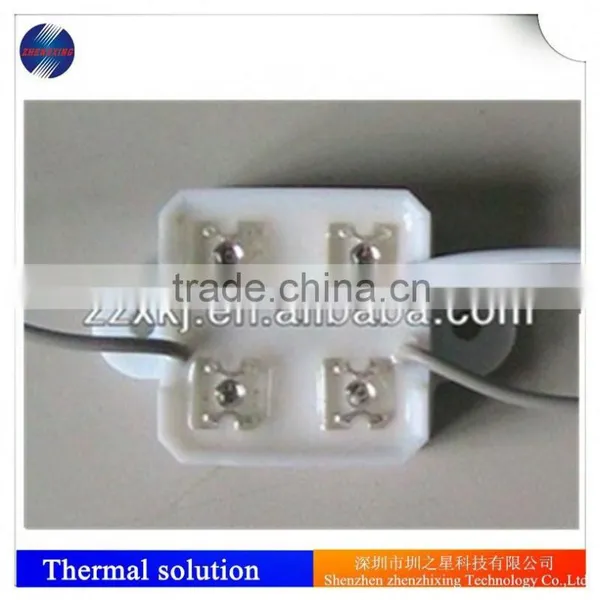

2.Industry silicone sealant is ideally suited for adhesion and sealing for energy saving lamp, automobile lights.

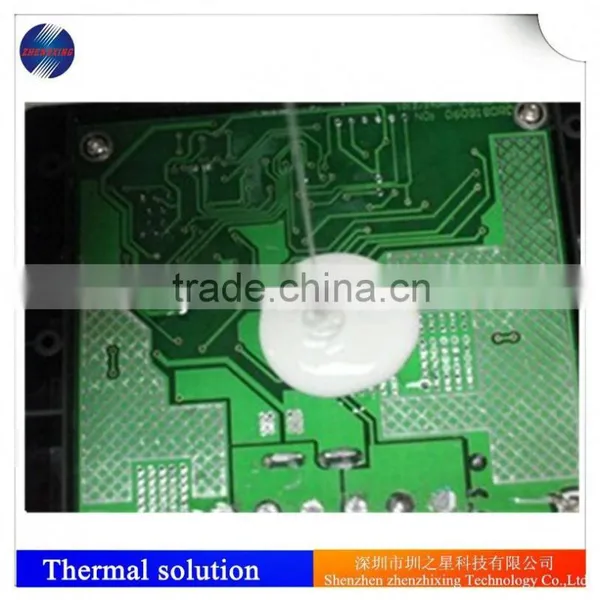

3.Industry silicone sealant is also used for electronic component sealing, adhesive and sealing for automotive, machine industry.
How to USE:
1.Surface must be clean, dry and free from grease and old glue;
2.Smooth surface to simplify clean up;
3.Apply to one surface only;
4.Apply suitable pressure on bonding substrates;
Packaging and store:

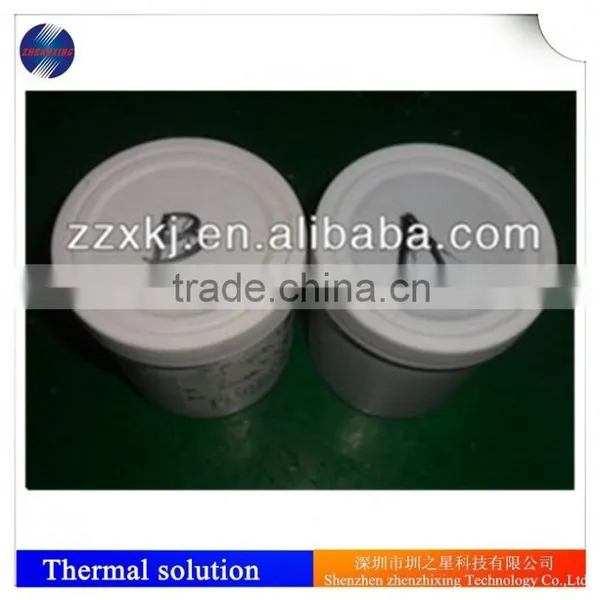

1.Plastic barrels packaging, 1/5kg;
2.Stored in a cool, dry and ventilated environment ≤25°C;
3.12 months under 25°C with sealed container., exceed store period sealant still can be used if the performance is good.
PROPERTY |
PC100-01 |
PC100-02 |
PC200-1 |
PC200-2 |
TEST METHOD |
Color |
A: Gray B:Lucency |
A: Gray B:Lucency |
A: WhiteB:White |
A: WhiteB:White |
Visual |
A/B compounding rate |
10:1 |
10:1 |
1:1 |
1:1 |
---- |
Hardness |
60°C Shore C |
60°C Shore C |
75°C Shore C |
75°C Shore C |
ASTM D2240 |
Adhesiveness |
5000cps |
5000cps |
5000cps |
5000cps |
ASTM D412 |
Work time (Hour, 25°C) |
1H |
5H |
0.5H |
1H |
---- |
Room Solidifying Time |
2H |
24H |
1H |
2H |
---- |
Density |
1.7 |
1.7 |
1.7 |
1.7 |
ASTM D792 |
Thermal conductivity |
1.0 W/M-K |
1.0 W/M-K |
1.0 W/M-K |
1.0 W/M-K |
ASTM D5470 |
Expired Time |
12 months under 25°C with sealed container. |
||||
